W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9401

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Truck Air Spring	Operation:	Gas-Filled
Quality:	100% Tested	Sample:	Available
MOQ:	6 Pieces	Vehicle:	Truck Suspension
Firestone:	W01-358-9401	Airtech:	135822 / 34183-24C
Highlight:	Firestone truck air spring , semi trailer air bag , 1T15T-1 suspension air spring

W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag

W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag

Product Specifications

Product Name	Air Suspension
GUOMAT	1T9401
Warranty	1 Year
Material	Rubber+Steel

Corresponding OEM Numbers

Firestone Numbers

W01-358-9401 / WO1-358-9401
W01 358 9401 / WO1 358 9401
W013589401 / WO13589401

Firestone Style Number

1T15T-1

Airtech Numbers

135822 / 34183-24C

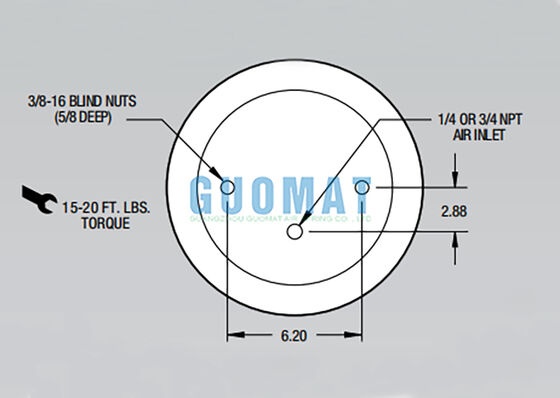

Technical Specifications

Max. Height: 12"
Min. Height: 4"
Blind Nuts: 3/8-16
Air Inlet: 1/4NPT
Center Distance Between Blind Nuts: 6.2"
Center Distance Between Blind Nuts and Air Inlet: 2.88"
Maximum Outer Diameter: 11.2"
Top Cover Diameter: 9"
Base Diameter: 9.25"
Piston Height: 2"
Threaded Hole in Base: 1/2-13

Performance Data

Assembly Height (in.)	Volume@ 100PSIG(in³)	Pounds Force @ Various PSIG
		@20PSIG	@20PSIG	@20PSIG	@20PSIG	@20PSIG
10.0	541	920	1750	2600	3470	4410
9.0	490	1030	2010	3050	4050	5130
8.0	433	1100	2090	3210	4330	5470
7.0	373	1110	2100	3220	4370	5490
6.0	314	1160	2190	3330	4480	5650
5.0	251	1450	2570	3780	5010	6290
