Firestone Rolling Lobe Air Spring W01-358-9053 1T15M-2 Truck Suspension Air Bag

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9053

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Truck Air Suspension	Sample:	Available
Warranty:	1 Year	Material:	Rubber+Steel
Package:	Standard Packing Or Customized	Piston Material:	Steel
Firestone:	W01-358-9053	Color:	Black
Highlight:	Firestone truck air spring , Rolling lobe suspension air bag , Truck air bag with warranty

Firestone Rolling Lobe Air Spring W01-358-9053 1T15M-2 Truck Suspension Air Bag

Truck air springs are a key component of truck air suspension systems, primarily used to support the vehicle body, absorb road impacts, and adjust vehicle height. Using compressed air as the elastic medium, they adjust load-bearing capacity and suspension stiffness by regulating air pressure, ensuring smooth vehicle operation under varying loads and road conditions.

Part Numbers

GUOMAT: 1T9053

Firestone: W01-358-9053 / W01 358 9053 / W013589053

Firestone: 1T15M-2

Goodyear: 1R12-309 / 1R 12-309 / 1R12 309

Goodyear: 566-24-3-067 / 566 24 3 067 / 566243067

Goodyear: 1R12-901 / 1R 12-901 / 1R12 901

Goodyear: 566-24-3-055 / 566 24 3 055 / 566243055

Contitech: 910-12A327

Cross-Reference Compatibility

Manufacturer	Part Number
Watson & Chalin	AS-0095
SAF Holland	57009053
Hendrickson	59053-2/S13158
EZ Ride	8030192
Freightliner	UCE-1304-2
Dayton	3529053
Leland	SC2457
Triangle	8327/6363
Ridewell	1003589053C

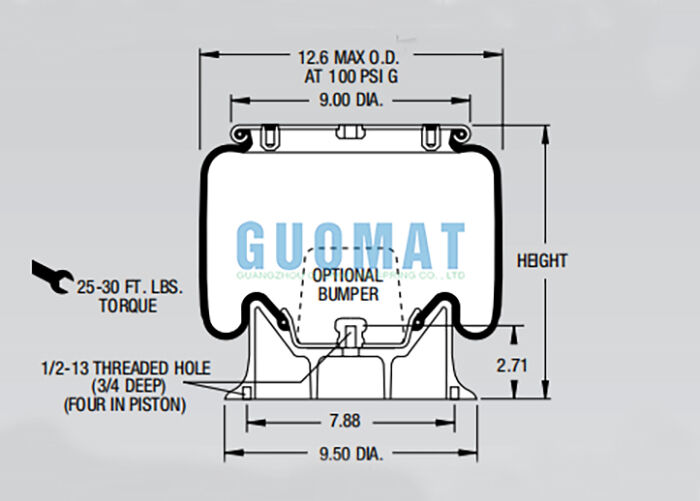

Technical Specifications

Maximum height: 15"
Minimum height: 5"
Blind nut: 3/8-16
Air vent: 1/4 NPT
Center distance between blind nuts: 6.2"
Center distance between blind nuts and air vent: 2.88"
Maximum outer diameter: 12.6"
Top cover diameter: 9"
Base diameter: 9.25"
Piston height: 2.71"
Threaded hole in base: 1/2-13

Performance Data

Assembly Height (in.)	Volume @ 100PSIG	Pounds Force @ 20PSIG	Pounds Force @ 40PSIG	Pounds Force @ 60PSIG	Pounds Force @ 80PSIG	Pounds Force @ 100PSIG
13.0	900	1000	2030	3170	4320	5580
12.0	835	1210	2420	3720	5040	6440
11.0	763	1330	2680	4120	5570	7100
10.0	687	1380	2820	4330	5850	7460
9.0	609	1400	2860	4390	5920	7530
8.0	531	1400	2850	4390	5930	7510
7.0	453	1410	2860	4410	5950	7530
6.0	374	1440	2930	4530	6080	7730
