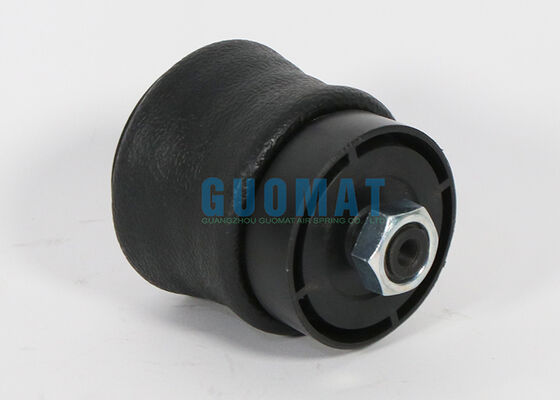

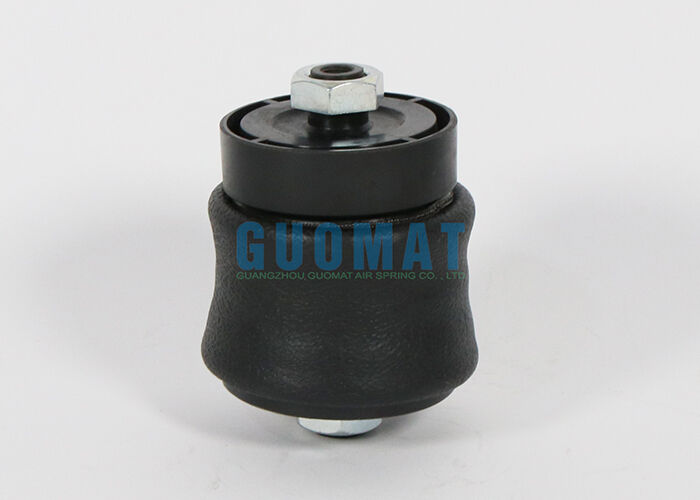

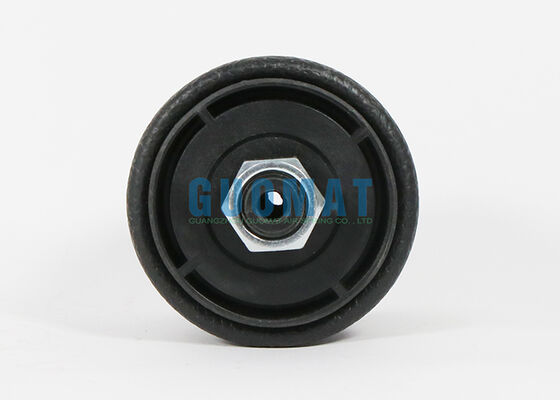

W02-358-3004 Firestone Cabin Air Spring 2M1A Style Truck Air Shock Absorber 1/8 NPT
Product Overview
W02-358-3004 Firestone Cabin Air Spring 2M1A Style Truck Air Shock Absorber 1/8 NPT
| Item |
Truck Cab Air Suspension |
Truck Model |
General |
| Warranty |
12 Months |
Material |
Rubber+Steel |
| Package |
Carton |
Shock Absorber Type |
Air Pressure |
| Package Unit |
1 pcs |
Position |
Front/Rear |
Original Equipment Numbers
- FIRESTONE: W02-358-3004 / W02 358 3004 / W023583004
- FIRESTONE: WO2-358-3004 / WO2 358 3004 / WO23583004
- FIRESTONE: Style 2M1A
Technical Specifications
Maximum height: 7 inches
Minimum height: 2.5 inches
Maximum outer diameter: 3.5 inches
Base diameter: 2.4 inches
Air inlet: 1/8 NPT
Performance Data
| Assembly Height (in.) |
Volume@ 100PSIG(in³) |
Pounds Force @20PSIG |
| 6.0 |
28 |
100 |
180 |
270 |
350 |
430 |
| 5.0 |
23 |
110 |
210 |
330 |
440 |
560 |
| 4.0 |
17 |
120 |
230 |
340 |
460 |
580 |
| 3.0 |
11 |
120 |
240 |
350 |
480 |
600 |
All force measurements taken at 20PSIG
Firestone Airstroke Actuator Options
1/8 NPT, each end, plastic studs:
- FIRESTONE: W02-358-3002
- FIRESTONE: W02 358 3002
- FIRESTONE: W023583002
1/8 NPT, each end, BRASS studs:
- FIRESTONE: W02-358-3004
- FIRESTONE: W02 358 3004
- FIRESTONE: W023583004
Product Function & Benefits
Truck cab air springs are typically installed between the cab floor and the chassis, serving as a crucial component of the cab suspension system and connected to the vehicle's air circuitry or independent air control system. Their primary function is to provide stable support to the cab and effectively isolate vibrations from the chassis and road surface during vehicle operation.
When a truck travels on uneven roads or encounters bumps or speed bumps, the impact from the chassis is first transmitted to the air springs. The compressed air inside the air springs absorbs and buffers this impact energy through compression and release, preventing vibrations from being directly transmitted to the cab, thus significantly reducing the shaking and impact felt by the driver.
When the vehicle load or driving conditions change, the cab air springs automatically maintain the cab's height and level by adjusting the internal air pressure. This not only improves cab stability but also prevents changes in posture from affecting the driver's visibility and handling experience.
Long-term use of cab air springs effectively reduces driver fatigue, improves driving comfort and safety, and reduces damage to the cab structure, electrical system, and interior components caused by vibration, extending the overall vehicle lifespan.
