1R14-201 Goodyear Heavy Duty Truck Air Spring 566-28-3-020 Air Suspension System

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9123

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Rolling Lobe Type Air Spring	Material:	Rubber And Steel
Warranty:	1 Year Warranty	Operation:	Gas-filled
Quality:	100% Tested	Goodyear:	1R14-201/566-28-3-020
Highlight:	Goodyear truck air spring , heavy duty air suspension system , 566-28-3-020 air spring

1R14-201 Goodyear Heavy Duty Truck Air Spring 566-28-3-020 Air Suspension System

Product Overview

Heavy duty truck air spring designed for reliable performance in demanding suspension applications.

Item Type: Truck Air Spring

Warranty: 1 Year

Model Number: 1T9123

Vehicle Application: For Truck

Material: Rubber + Steel + Aluminum

Net Weight: 15 kg

Gross Weight: 16.5 kg

Packing Size: 27 × 27 × 42 cm

Compatible Part Numbers

Manufacturer	Part Numbers
GOODYEAR	1R14-201, 1R 14-201
GOODYEAR Bellows	566-28-3-020, 566 28 3 020, 566283020
GOODYEAR Piston	566-20-7-097, 566 20 7 097, 566207097
CONTITECH	67625, 1110.5-21A965, 11 10.5-21 A 965
AUTOMANN	AB1D28C-A965

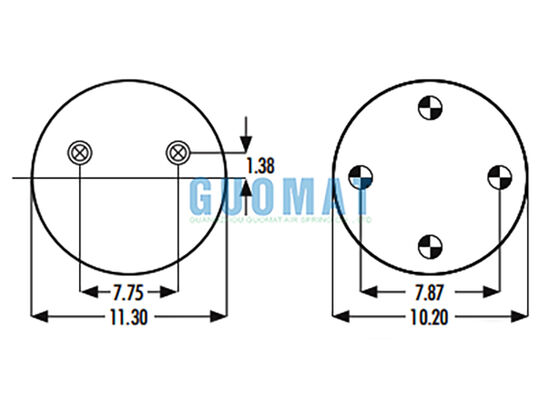

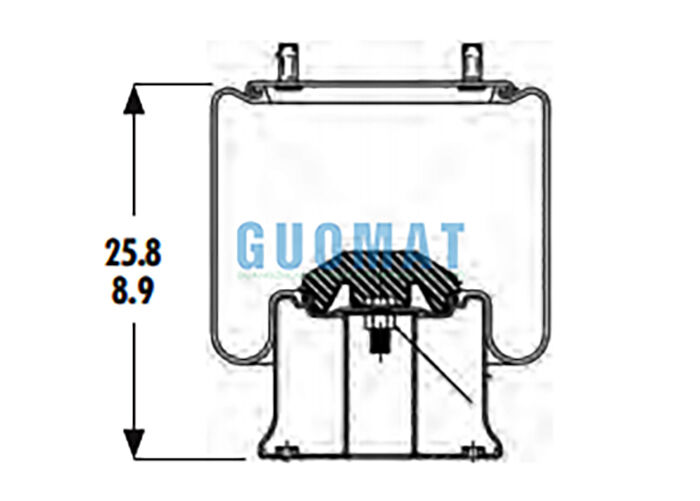

Technical Specifications

Parameter	Value
Top Cover Diameter	289 mm
Combination Studs	1/4 NPTF, 3/4-16 UNF
Maximum Height	660 mm
Minimum Height	240 mm
Base Height	178 mm
Base Width	263 mm

Installation Information

Installation Aspect	Details
Installation Position	Between truck frame and axle
Upper Mounting	Bolted to vehicle frame bracket
Lower Mounting	Fixed on axle or suspension seat
Air Connection	Connected to vehicle air supply system
Adjustment	Air pressure adjusts ride height and load level
Installation Steps	Mount air spring → Connect air line → Inflate
Application	Trucks, trailers, semi-trailers, modified vehicles
