W01-M58-8472 Firestone Air Suspension Spring Bag 1R11-805 Goodyear Rubber Air Shock

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T6035

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Application:	For Truck Air Suspension	Spring Material:	Rubber+Steel
Warranty:	1 Year	Condition:	Brand-New
Operation:	Air-Operated	Packing:	Carton
OEM:	20427803,1075890	Car Model:	For V-olvo Truck Air Spring
Highlight:	Firestone air suspension spring bag , Goodyear rubber air shock , truck air springs with warranty

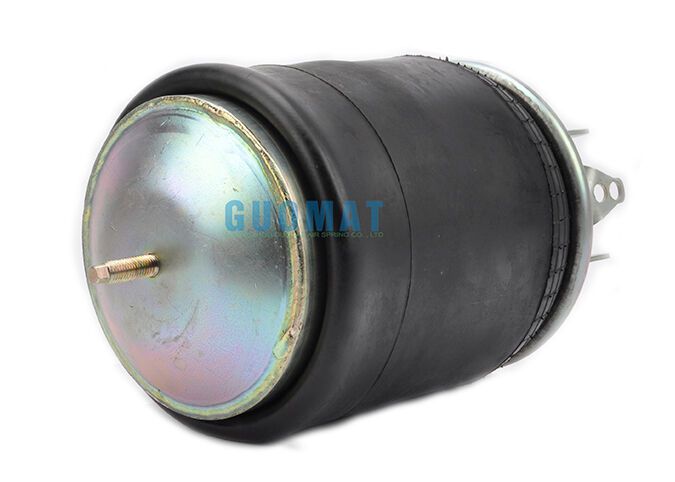

W01-M58-8472 Firestone Air Suspension Spring Bag 1R11-805 Goodyear Rubber Air Shock

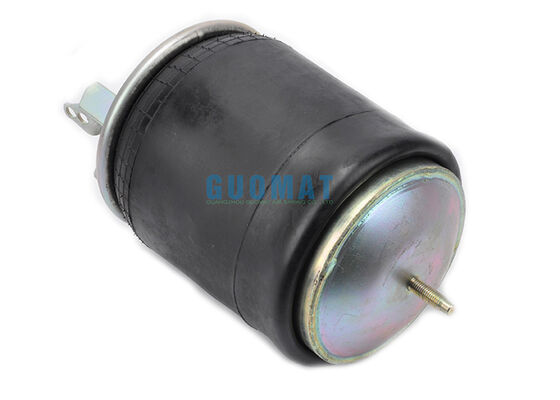

W01-M58-8472 Firestone Air Suspension Spring Bag 1R11-805 Goodyear Rubber Air Shock

Product Specifications

Item Name: Truck Air Spring
Brand: GUOMAT
Material: Rubber + Steel
Manufacturer Warranty: 1 Year
Warehouse: Guangzhou Warehouse
Package: Carton
Delivery Time: 3-8 working days
Trade Terms: EXW, FOB, CIF, CNF
Spring Type: Rolling Lobe Air Spring

Cross-Reference Part Numbers

Firestone	W01-M58-8472 / W01 M58 8472 / W01M588472
Contitech	6605NP01 / 6605 NP01 / 6605 NP 01
Goodyear	1R11-805 / 1R 11-805 / 1R11 805
Phoenix	1DF20D-1
Dunlop FR	D11B42

Templin 04.060.6106.991

Granning 93914

WABCO 9518110050

V-olvo 20427800

V-olvo 120427803

V-olvo 20456150

V-olvo 120531984

V-olvo 205822061

V-olvo 3171692

V-olvo 21961374

Meritor MLF7154

Airtech 37803K

Airfren 20.6605.1CM

DT 2.62176

Technical Specifications

Top Cover Plate	Diameter: 231mm, uses M16X1.5 and M24X1.5 studs
Base Piston	Diameter: 200mm, Height: 164mm, uses one M14X2.0 bolt
Dimensions	Natural outer diameter: 280mm, Maximum height: 502mm, Minimum height: 198mm

Professional Installation Guidelines

To ensure optimal performance and lifespan of the GUOMAT air springs, please follow these professional installation guidelines. Correct installation directly affects vehicle safety and suspension system stability.

I. Pre-Installation Preparation

Park the vehicle on a flat, firm surface and securely support the chassis using a safety bracket
Turn off the engine, disconnect the battery, and completely release air pressure in the suspension system
Inspect the old air spring for wear, bolt condition, and surrounding air lines
After unpacking, inspect the new air spring's rubber surface for damage and ensure metal end plates are intact
Prepare torque wrench, suitable sockets, threadlocker, and leak-detecting soapy water

II. Key Installation Steps

Alignment: Align the air spring with mounting brackets by hand, ensuring positioning marks match. Do not force with tools
Tightening Bolts: Use genuine or higher-grade bolt assemblies. Tighten step-by-step using a calibrated torque wrench according to specified torque values and diagonal alternating sequence
Connecting Air Lines: Connect air hoses using new clamps or locking rings, ensuring connectors are fully inserted and locked
Initial Seal Check: Check main connection points with soapy water immediately after installation

III. Post-Installation Adjustment

System Initialization: Reconnect battery, start engine, allow system to automatically inflate to standard height. Observe even and smooth inflation
Air Tightness Test: Raise vehicle and apply soapy water to all connections and airbag surface. Check for air bubbles for at least 3 minutes
Road Test Verification: Conduct low-speed flat road test to check steering and braking. Then conduct comprehensive road condition test to verify height maintenance and driving stability under different loads
