W01-358-5405 Firestone Rolling Lobe Air Spring Replacement 1T14C-3 Trailer Air Shock

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T5405

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Truck Air Spring	Material:	Metal And Rubber
Operation:	Gas-Filled	Quality:	100% Tested
Packaging:	Carton/Pallet	Firestone:	W01-358-5405/1T14C-3
Color:	Black	Height:	Min.HT 5.8-Max.HT 16
Highlight:	Firestone trailer air spring replacement , Rolling lobe air shock 1T14C-3 , Truck air springs with warranty

W01-358-5405 Firestone Rolling Lobe Air Spring Replacement 1T14C-3 Trailer Air Shock

Product Specifications

Item	Value
Model No.	1T5405
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

Cross-Reference Part Numbers

Firestone W01-358-5405 / WO1-358-5405
Firestone W01 358 5405 / WO1 358 5405
Firestone W013585405 / WO13585405
Firestone 1T14C-3
Contitech 6 6.5-13 S 038
Contitech 66.5-13S038
Contitech 68120
Contitech 6 6.5-13
Contitech 66.5-13
FleetPride: AS5405
Triangle: AS-8038
TPR: AS54050
Automann: 1DK10B-5405
Hendrickson: S-9346

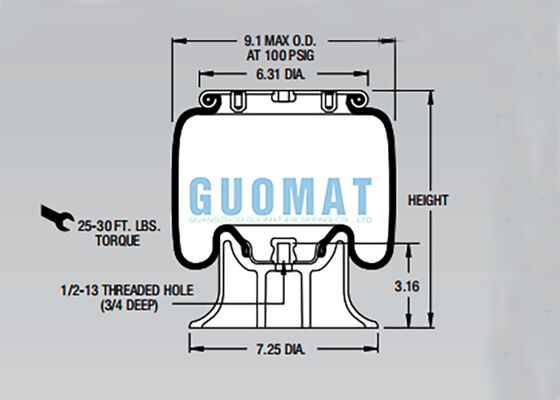

Technical Specifications

Top cover diameter: 6.31 inches
Top cover threaded holes: 2pcs x 3/8-16UNC
Center distance between threaded holes: 3.5 inches
Center distance between threaded holes and vent: 1.75 inches
Vent: 1/4 NPT
Base diameter: 7.25 inches
Base height: 3.16 inches
Base threaded holes: 1/2-13UNC
Maximum outer diameter: 9.1 inches
Maximum height: 16 inches
Minimum height: 5.8 inches

Performance Data

Assembly Height (in.)	Volume @ 100PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
14.0	430	410	730	1080	1490	1960
12.0	378	560	1120	1680	2280	2870
10.0	313	580	1170	1820	2440	3130
8.0	246	610	1190	1810	2430	3110
6.0	176	800	1500	2180	2960	3740
