W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7

W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7

  • W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7
  • W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7
  • W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7
W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1T5712
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $89.9-99.9/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Type: Air Spring Material: Metal And Rubber
Color: Black Packing: Neutral Packing
Operation: Gas-Filled Piston Base: With
Quality: 100% Tested Application: For Truck
Highlight:

Firestone truck air spring

,

rolling lobe air suspension system

,

1T14C-7 air suspension

W01-358-5712 Firestone Truck Air Spring Rolling Lobe Air Suspension System 1T14C-7
Product Information
Name: Truck Air Spring
Brand: GUOMAT
Model Number: 1T5712
Firestone OEM Numbers
Firestone: 1T14C-7
W01-358-5712 / WO1-358-5712
W01 358 5712 / WO1 358 5712
W013585712 / WO13585712

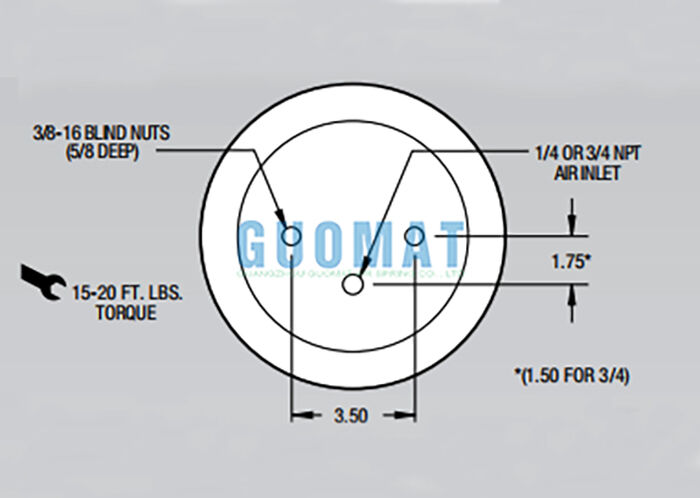

Technical Specifications
Top cover diameter: 6.31 inches
Top cover threaded holes: 2pcs x 3/8-16UNC
Center distance between threaded holes: 3.5 inches
Center distance between threaded holes and vent: 1.75 inches
Vent: 1/4 NPT
Base diameter: 7.25 inches
Base height: 3.16 inches
Base threaded holes: 1/2-13UNC
Maximum outer diameter: 9.1 inches
Maximum height: 20 inches
Minimum height: 8 inches
Performance Data - Volume@100PSIG=490in³ | Natural Frequency
Gage Pressure (PSIG) Load (Ibs.) Spring Rate (Ibs./in.) CPM HZ
40 1250 166 68 1.14
60 1920 243 67 1.12
80 2610 305 64 1.07
100 3260 397 66 1.10
Assembly Height & Force Data
Assembly Height (in.) Volume@100PSIG (in³) @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
17.0 615 500 890 1310 1790 2260
15.0 558 600 1210 1820 2460 3070
13.0 490 600 1250 1920 2610 3260
11.0 421 660 1280 1930 2610 3270
9.0 349 820 1540 2270 3040 3850
Related Firestone Parts
Firestone Style 1T14C-7
Blind nuts, 1/4NPT
W01-358-5712
W01 358 5712
W013585712
Blind nuts, 3/4NPT
W01-358-5708
W01 358 5708
W013585708
Firestone Style 1T28C-7
Blind nuts, 1/4NPT
W01-358-5743
W01 358 5743
W013585743
