W01-358-9414 Firestone Truck Air Spring 1T15L-4 Trailer Air Suspension

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9414

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$47.6-63/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Car Model:	For Truck,For Bus
Fitment Type:	Direct Replacement	Material:	Rubber And Steel
Operation:	Gas-filled	Type Of Goods:	Air Spring/Air Bags/Air Ballon
Firestone:	W01-358-9414	Application:	Auto Suspension Systems
Highlight:	Firestone truck air spring 1T15L-4 , trailer air suspension spring , Firestone air spring with warranty

W01-358-9414 Firestone Truck Air Spring 1T15L-4 Trailer Air Suspension

Product Overview

W01-358-9414 Firestone Truck Air Spring 1T15L-4 Trailer Air Suspension

Product Type: Rolling Lobe Air Spring

Item Number: 1T9414

Working Temperature: -40°C to +70°C

Failure Testing: ≥3 million cycles

Cross-Reference Part Numbers

FIRESTONE Number: 1T15L-4
FIRESTONE Number: W013589414
FIRESTONE Number: W01 358 9414
FIRESTONE Number: W01-358-9414

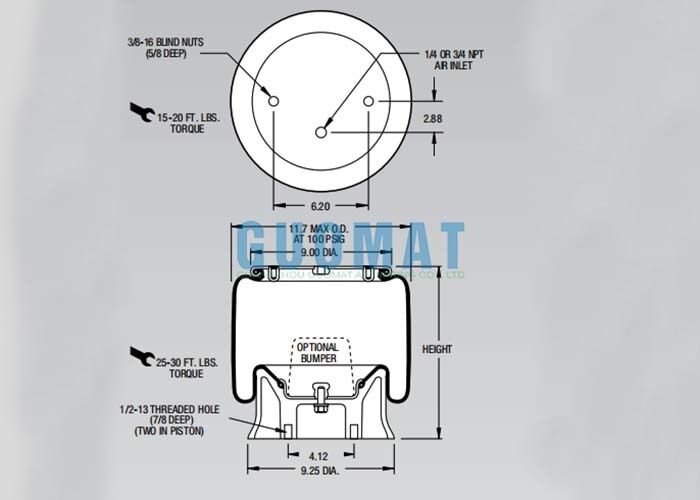

Technical Specifications

Top Cover: Diameter 9.00 inches, secured with two 3/8-16 bolts, center-to-center distance 6.20 inches

Vent Gauge: 1/4 NPT, center-to-center distance between vent and threaded holes 2.88 inches

Base: Diameter 9.25 inches, secured with two 1/2-13 bolts

Dimensions: Maximum outer diameter 11.7 inches, natural height 11.00 inches, maximum height 18.00 inches, minimum height 6.70 inches

Performance Data

Volume @ 100 PSIG = 625 in³ | Natural Frequency

Gage Pressure (PSIG)	Load (lbs.)	Spring Rate (lbs./in.)	CPM	HZ
40	2650	583	88	1.47
60	4080	823	84	1.4
80	5510	1055	82	1.37
100	6930	1281	81	1.34

Assembly Height (in.)	Volume @ 100 PSIG (in³)	Pounds Force @20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
15	898	1120	2110	3150	4300	5440
13	768	1310	2630	3970	5360	6720
11	625	1310	2650	4080	5510	6930
9	479	1310	2650	4080	5500	6920
7	333	1390	2780	4210	5690	7120

Product Image
