1T15M-2 Firestone Style Air Shock W01-358-9042 Air Suspension Springs For Shock Absorption

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9042

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item:	Truck Air Suspension Assembly	Material:	Rubber+Steel
Warranty:	1 Year	Packing:	Customize/Neutral Package
Position:	Front/Rear	Operation:	Gas-Filled
Dimension:	OEM/Standard Size	Other Name:	Air Spring, Air Bag
Highlight:	Firestone style air shock , Truck air suspension springs , Shock absorption air springs

1T15M-2 Firestone Style Air Shock W01-358-9042 Air Suspension Springs For Shock Absorption

Product Overview

1T15M-2 Firestone Style Air Shock W01-358-9042 Air Suspension Springs For Shock Absorption

Item	Truck Suspension Air Spring Bags
GUOMAT Number	1T9042
Warranty	1 Year
Material	Rubber and Steel
Truck Model	Heavy Duty Truck
MOQ	1 Piece
Position	Auto/Truck Air Suspension Parts
Delivery Time	3-8 Working Days

Replacement Part Numbers

Firestone Rubber Air Spring 1T15M-2
Firestone Rubber Air Spring W01-358-9042
Firestone Rubber Air Spring W01 358 9042
Firestone Rubber Air Spring W013589042

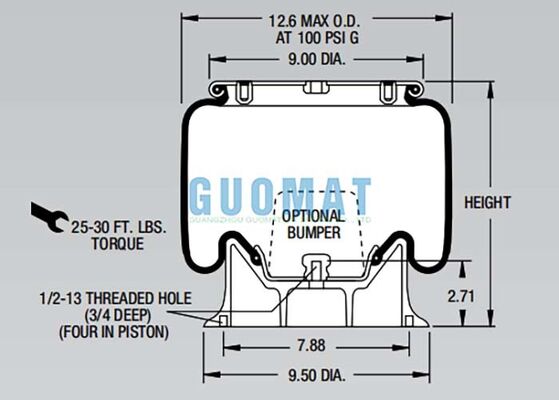

Dimensional & Mounting Specifications

Parameter	Specification
Air Inlet	1/4NPT
Top Plate Blind Nuts	3/8-16 UNC
Top Plate Bolt Circle Diameter	6.20 in
Top Plate Overall Diameter	9.00 in
Piston Diameter	9.50 in
Bottom Mounting Hole	1/2-13 threaded hole (3/4" deep, four in piston)
Lower Mounting Width	7.88 in
Lower Section Height	2.71 in
Optional Internal Bumper	Available
Minimum Height	5.0 in
Design (Natural) Height	9.5 in
Maximum Height	15.0 in

Firestone Style 1T15M-2 Air Spring Variants

Configuration	Part Numbers
Blind nuts, 1/4NPT	W013589042, W01 358 9042, W01-358-9042
Blind nuts, 1/4NPT, bumper	W013589053, W01 358 9053, W01-358-9053
Blind nuts, 3/4NPT	W013589054, W01 358 9054, W01-358-9054
Blind nuts, 3/4NPT, bumper	W013589099, W01 358 9099, W01-358-9099
