W01-358-8193 Firestone Truck Air Suspension Parts 1R12-809 Goodyear Air Ride Springs

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T8193

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber+Steel	Warranty:	12 Months
Product Name:	Air Spring	Weight:	Normal Weight
Application:	Truck Air Spring	Quality:	100% Tested
Sample:	Acceptable	Firestone:	W01-358-8193
Highlight:	Firestone truck air suspension springs , Goodyear air ride suspension parts , truck air springs with warranty

W01-358-8193 Firestone Truck Air Suspension Parts 1R12-809 Goodyear Air Ride Springs

Product Overview

Brand: GUOMAT

Model Number: 1T8193

Material: Rubber + Steel

Warranty: 12 Months

Cross-Reference Part Numbers

Firestone: W013588193, W01 358 8193, W013-588-193
Goodyear: 1R12-809, 1R 12-809, 1R12 809
Scania: 1440302, 470921, 1515499, 488266
Airtech: 330302K

Technical Specifications

Top Cover Plate:

Diameter: 262mm | Bolt Size: 11.9mm | Bolt Center Distance: 140mm

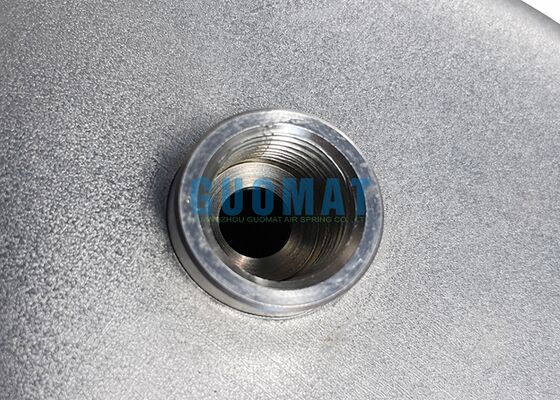

Vent: M14 x 1.5 | Vent to Threaded Hole Distance: 56.5mm

Base:

Diameter: 240.5mm | Height: 104.5mm | Bolt Center Distance: 140mm

Overall Dimensions:

Height: 210mm | Outer Diameter: 310mm

Compatible Parts Reference

GUOMAT	Firestone	Flex Number	Piston	Piston Type	Top Plate Feature	Bottom Plate Feature	Top Plate Dia	Bottom Plate Dia	Collapsed Height
1T2131	W01-358-2131	1T14C-1	9491	-	2	1	6.31	7	3.2
1T5323	W01-358-5323	1T14C-1	9708	A	2	1	6.31	7.26	5.4
1T2119	W01-358-2119	1T14C-1	9491	-	2	1	6.31	7	3.2
1T2120	W01-358-2120	1T14C-1	9651	A	2	3	6.31	7.25	4.9
1T5311	W01-358-5311	1T14C-1	9708	A	3	1	6.31	7.28	5.4
1T5310	W01-358-5310	1T14C-1	9708	A	3	1	6.31	7.28	4.7
1T5343	W01-358-5343	1T14C-1	9651	A	3	3	6.31	7.25	4.92
1T5433	W01-358-5433	1T14C-1	9778	A	1	3	6.31	7.29	6
1T5434	W01-358-5434	1T14C-1	9708	A	2	1	6.31	7.26	5.4
1T5436	W01-358-5436	1T14C-1	9708	A	2	1	6.31	7.26	5.9
1T9478	W01-358-9478	1T14C-1	9493	P	2	1	6.31	7	5.4
1T5409	W01-358-5409	1T14C-1	9708	A	2	1	6.31	7.25	4.7
1T5406	W01-358-5406	1T14C-1	9708	A	2	1	6.31	7.26	4.7
1T5414	W01-358-5414	1T14C-1	9778	A	2	2	6.31	7.29	6.8
1T5410	W01-358-5410	1T14C-1	9778	A	2	2	6.31	7.29	6.8
1T5423	W01-358-5423	1T14C-1	9651	A	2	3	6.31	7.25	4.9
1T5408	W01-358-5408	1T14C-1	9708	A	3	1	6.31	7.26	4.7
1T5422	W01-358-5422	1T14C-1	9708	A	3	1	6.31	7.26	5.4
1T5405	W01-358-5405	1T14C-1	9708	A	3	1	6.31	7.26	4.7
1T5412	W01-358-5412	1T14C-1	9778	A	1	3	6.31	7.29	6.8
1T8868	W01-358-8868	1T14C-1	9651	A	2	3	6.31	7.26	5
1T5336	W01-358-5336	1T14C-1	9778	A	2	2	6.31	7.29	6.1
1T5335	W01-358-5335	1T14C-1	9778	A	2	3	6.31	7.29	6.8
1T5354	W01-358-5354	1T14C-1	9651	A	2	3	6.31	7.26	4.9
1T5730	W01-358-5730	1T14C-1	9798	-	2	1	6.31	7.25	4.7
