W01-358-9108 Firestone Rolling Lobe Air Spring 1T15M-9 Trailer Air Suspension Balloon

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9108

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,T/T,Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Material:	Rubber+Steel	Quality:	100% Tested
Air Spring:	Air Spring Isolator	Failure Testing:	More Than 3 Millions
Warranty:	1 Year	Position:	Truck Air Suspension
Firestone:	W01-358-9108	Color:	Black
Highlight:	Firestone trailer air spring , Rolling lobe air suspension balloon , 1T15M-9 truck air springs

W01-358-9108 Firestone Rolling Lobe Air Spring 1T15M-9 Trailer Air Suspension Balloon

Product Specifications

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT
GUOMAT No.	1T9108
Material	Rubber and Steel
Warranty	1 Year
MOQ	10 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback

Replacement Part Numbers

Firestone Style: 1T15M-9
Firestone Air Spring: W013589108, W01 358 9108, W01-358-9108

Compatible Parts

Blind nuts, 1/4NPT: W013589108 / W01 358 9108 / W01-358-9108
Blind nuts, 1/4NPT, bumper: W013589104 / W01 358 9104 / W01-358-9104
Blind nuts, 3/4NPT: W013589106 / W01 358 9106 / W01-358-9106
Blind nuts, 3/4NPT, bumper: W013589117 / W01 358 9117 / W01-358-9117

Technical Specifications

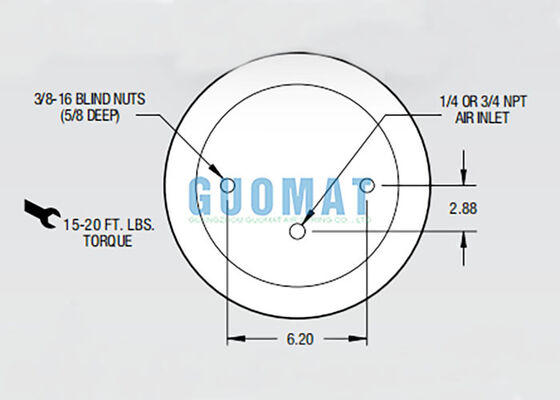

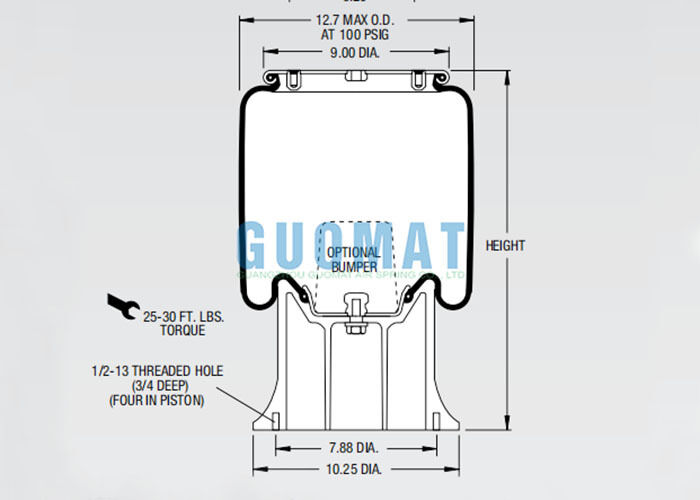

Top cover diameter	9.0 inches
Blind nuts	2 pcs 3/8-16
Center distance between blind nuts	6.2 inches
Center distance between blind nuts and air vents	2.88 inches
Base width	10.25 inches
Threaded holes	2 pcs 1/2-13
Center distance between threaded holes	7.88 inches
Minimum height (without buffer)	8.5 inches
Minimum height (with buffer)	9.7 inches
Maximum height	27 inches
Design height	17 inches
Volume @ 100 PSIG	1217 in³

Performance Data - Natural Frequency

Gage Pressure (PSIG)	Load (lbs.)	Spring Rate (lbs./in.)	CPM	HZ
40	2770	287	60	1.01
60	4250	425	59	0.99
80	5680	546	58	0.97
100	7140	659	57	0.95

Load Capacity by Assembly Height

Assembly Height (in.)	Volume @ 100 PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
23	1658	1090	2150	3340	4560	5850
21	1517	1290	2600	4020	5380	6860
19	1368	1340	2780	4240	5660	7110
17	1217	1370	2770	4250	5680	7140
15	1067	1380	2810	4290	5690	7150
13	916	1390	2810	4280	5700	71570
11	760	1460	2950	4430	5940	7500
9	596	1580	3200	4880	6550	8230
