Firestone W01-358-9148 Air Spring Replacement 1T19L-7 Truck Air Suspension System

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9148

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Features:	Sealed	Material:	Rubber
Warranty:	1 Year	Suspension Type:	Air Shock Absorber/Air Spring
Applicable Car Models:	For Truck	Firestone:	W01-358-9148
Fitment Type:	Direct Replacement	Other Name:	Rolling Lobe Air Suspension
Highlight:	Firestone truck air spring replacement , 1T19L-7 air suspension system , truck air spring with warranty

Firestone W01-358-9148 Air Spring Replacement 1T19L-7 Truck Air Suspension System

High-quality replacement air spring designed for truck air suspension systems, providing reliable performance and durability.

Product Specifications

Brand: GUOMAT

Model Number: 1T9148

Material: Rubber+Steel

Warranty: 12 Months

MOQ: 10 Pieces

Weight: 9kg

Size: 27*27*36(cm)

Package: Carton

Port: HuangPu Guangzhou

Alternative Part Numbers

Firestone

1T19L-7
W01-358-9148
W01 358 9148
W013589148

Other Manufacturers

Contitech: 64343, 11 10.5-17 A 364
Goodyear: 1R14-026, 1R 14-026, 1R14 026, 566283021, 566 28 3 021, 566-28-3-021
Automann: 1D28G-9148
FleetPride: AS9148
Taurus: AS621-9148, AS624-9148
Triangle: AS-8364
TRP: AS91480
Dayton: 352-9148
Hendrickson: S-13053
Loadguard: SC2113, SC2042
Navistar/Fleetrite: 554778C1, 1681743C1
Peerless: 0550-00070

Technical Specifications

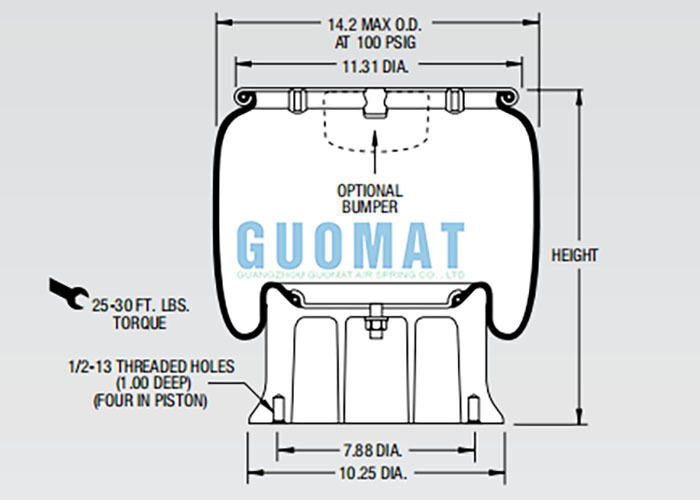

Physical Dimensions

Top cover diameter	11.31 inches

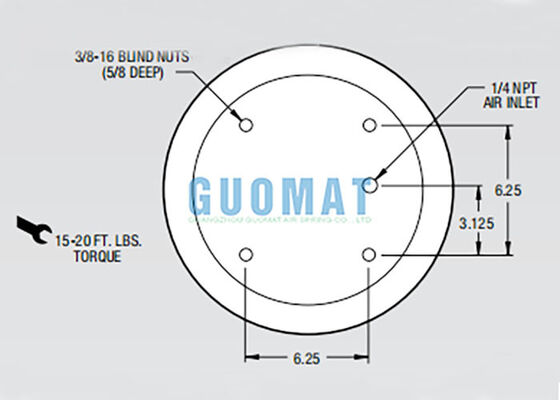

Blind nuts	4 pcs 3/8-16
Center distance between blind nuts	6.25 inches
Center distance between blind nuts and air vents	3.125 inches
Base width	10.25 inches
Threaded holes	4 pcs 1/2-13
Center distance between threaded holes	7.88 inches
Minimum height (without buffer)	6.5 inches
Minimum height (with buffer)	7.4 inches
Maximum height	22 inches
Design height	13 inches

Performance Data - Volume @ 100 PSIG = 921 in³

Gage Pressure (PSIG)	Load(lbs.)	Spring Rate (lbs./in.)	CPM	HZ
40	3482	532	73	1.22
60	5297	777	72	1.2
80	7101	982	70	1.17
100	8984	1227	69	1.15

Assembly Height Performance

Assembly Height (in.)	Volume @ 100 PSIG (in³)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
18.5	1480	1398	2605	3859	5194	6645
16.5	1328	1705	3309	4952	6624	8350
14.5	1155	1760	3482	4293	7095	8964
12.5	969	1760	3482	5297	7101	8984
10.5	778	1760	3482	5297	7101	8984
8.5	591	3876	3876	5748	7597	9515
