W01-358-9155 Firestone Truck Suspension Air Bag 1T19L-11 High Load Capacity Air Bellow

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9155

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item:	Truck Air Spring	Material:	Rubber And Steel
Warranty:	1 Year	Sample:	Available
Position:	Rear	Rubber:	Assembly
Shock Absorber Type:	Air Suspension	Car Model:	For Bus/truck/trailer
Highlight:	Firestone truck air suspension bag , High load capacity air bellow , 1T19L-11 truck air spring

W01-358-9155 Firestone Truck Suspension Air Bag 1T19L-11 High Load Capacity Air Bellow

Product Overview

High-performance air spring shock absorber spring designed for truck suspension systems, featuring exceptional load capacity and durability.

Product Specifications

Specification	Details
Product Name	Air Spring
Description	Air Spring Shock Absorber Spring for Truck
Model No.	1T9155
MOQ	10 PCS
Warranty	12 Months
Material	Rubber + Steel
Package	Carton/Cartons
Payment Methods	L/C; T/T; Western Union; PayPal
Port of Shipment	NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN
Shipping Methods	By Sea, By Air, By DHL Fedex

OEM Cross-Reference

Firestone: 1T19L-11
Firestone: W01-358-9155 / W01 358 9155 / W013589155

Compatible part numbers:

Blind nuts, 1/4NPT: W013589155, W01-358-9155, W01 358 9155
Blind nuts, 1/4NPT, bumper: W013589156, W01-358-9156, W01 358 9156
Blind nuts, 3/4NPT: W013589153, W01-358-9153, W01 358 9153
Blind nuts, 3/4NPT, bumper: W013582132, W01-358-2132, W01 358 2132
Countersunk steel bead ring 13/4 bolts, nuts, washers: W013589162, W01-358-9162, W01 358 9162

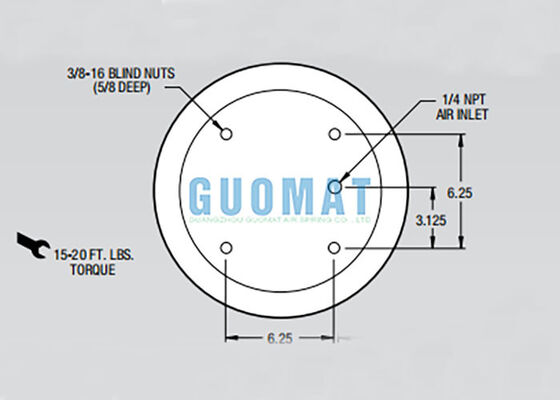

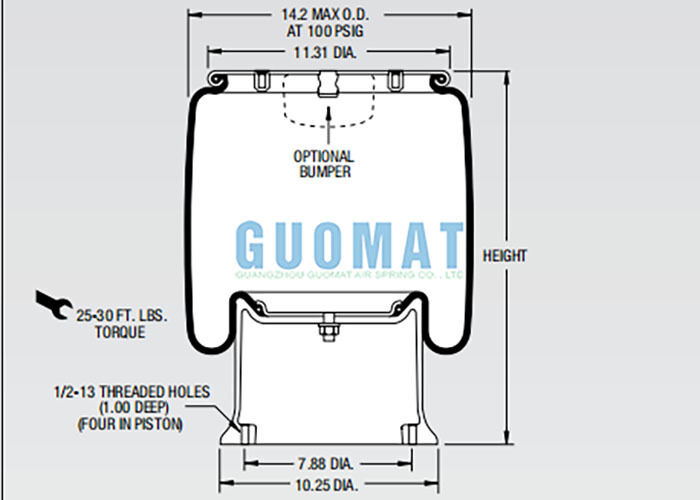

Technical Dimensions

Top cover diameter: 11.31 inches

Blind nuts: 4 pcs 3/8-16

Center distance between blind nuts: 6.25 inches

Center distance between blind nuts and air vents: 3.125 inches

Base width: 10.25 inches

Threaded holes: 4 pcs 1/2-13

Center distance between threaded holes: 7.88 inches

Minimum height (without buffer): 8 inches

Minimum height (with buffer): 8.5 inches

Maximum height: 28 inches

Design height: 17 inches

Performance Data - Natural Frequency

Gage Pressure (PSIG)	Load (lbs.)	Spring Rate (lbs./in.)	CPM	HZ
40	3411	428	67	1.12
60	5151	602	64	1.07
80	6911	765	63	1.05
100	8711	927	61	1.02

Assembly Height & Force Data

Assembly Height (in.)	Volume @ 100 PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
20	1597	1650	3341	5068	6843	8619
18	1427	1650	3411	5151	6911	8711
16	1247	1650	3411	5151	6911	8711
14	1060	1650	3411	5151	6911	8711
12	872	1830	3510	5278	7101	8903
10	688	2283	4100	5960	7946	9911
