W02-358-7010 Firestone Cab Air Spring Style 7010 Rubber Air Shock Absorber

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	G7010

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$79.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Tempera Turerange:	-40°C To 70°C	Shape:	Sleeve Style
Cross:	Firestone W02-358-7010	Size:	Standard Size
Air Hole:	1/8NPT	Hs Code:	8708809000
Car Fitment:	Trucks	Fuction:	Reduce Shock
Highlight:	Firestone Cab Air Spring 7010 , Rubber Air Shock Absorber , Cab Air Spring with warranty

W02-358-7010 Firestone Cab Air Spring Style 7010 Rubber Air Shock Absorber

Product Specifications

Part Number	G7010
Working Temperature	-40°C to +70°C
Failure Testing	≥3 million cycles
Material	Rubber and Steel
Warranty	1 Year
Color	Black

Compatible Part Numbers

FIRESTONE STYLE: 7010
FIRESTONE: W02-358-7010 / WO2-358-7010
FIRESTONE: W02 358 7010 / WO2 358 7010
FIRESTONE: W023587010 / WO23587010
GOODYEAR: 1S4-008
GOODYEAR: 1S 4-008
MACK: 227QS39301
LINK: 1101-0021

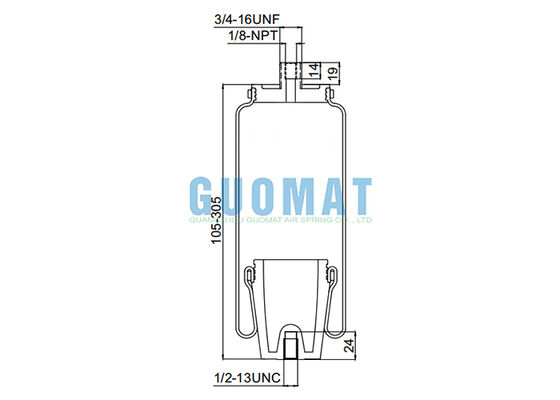

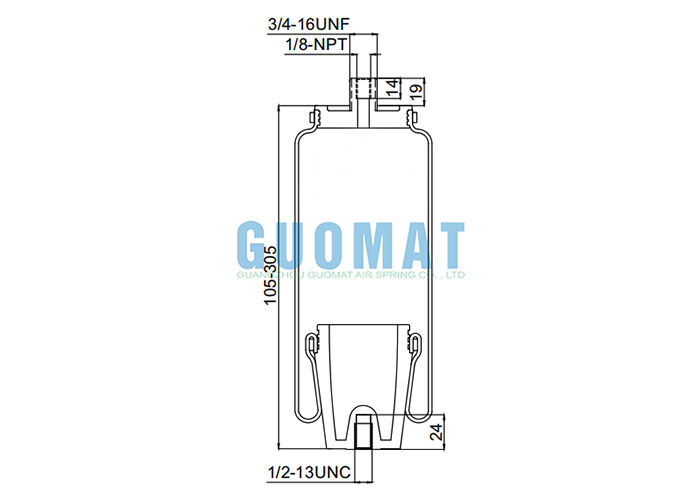

Technical Specifications

Cover plate diameter	2.76 inches
Air fitting	1/8 NPT
Base diameter	2.13 inches
Threaded hole	1/2-13
Maximum height	12 inches
Design height	8.0 inches

Dynamic Characteristics at 8.0in Design Height

Gage Pressure (PSIG)	Load (Ibs.)	Spring Rate (Ibs./in.)	CPM	HZ
40	280	62	88	1.47
60	440	89	84	1.40
80	600	116	83	1.38
100	810	107	68	1.13

Force Table

Assembly Height (in.)	Volume @ 80PSIG (in3)	Pounds Force @20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
10.0	75	150	310	480	650	880
9.0	67	140	300	470	630	870
8.0	58	140	280	440	600	810
7.0	50	130	270	430	580	740

Packaging & Delivery

Each air spring is packed in an individual poly bag and carton. Strong export packaging protects the product during transportation. Customized packaging and logo marking are available.

Products in stock ship within 3-7 working days. Shipping options include air freight, sea freight, and express services (DHL, FedEx, UPS).

After-Sales Support

GUOMAT provides technical support for model confirmation and replacement applications. Our team can help confirm suitable GUOMAT replacements when you provide original Firestone part numbers, photos, dimensions, or application information.
