W02-358-7002 Firestone Truck Cab Air Bellows Style 7012 Suspension Air Cushion

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	G7002

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$69.9-79.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Suitable For:	Truck Driver's Seat
Title:	Cabin Air Spring	Placement On Vehicle:	Front
Operating Temperature:	-40°C Bis +70°C	Product Feature:	In-situ Installation
Dimension:	OEM/Original Size	Color:	Balck
Highlight:	Firestone truck cab air bellow , Suspension air cushion for trucks , Cab air shock absorber replacement

W02-358-7002 Firestone Truck Cab Air Bellows Style 7012 Suspension Air Cushion

Product Specifications

Type	Cab Air Spring
Brand	GUOMAT
Model No.	G7002
Warranty	12 Months
Material	Rubber and Steel
Other Name	Heavy Duty Truck Cab Air Bag

Alternative Part Numbers

FIRESTONE STYLE 7012
FIRESTONE W023587002
FIRESTONE W02 358 7002
FIRESTONE W02-358-7002

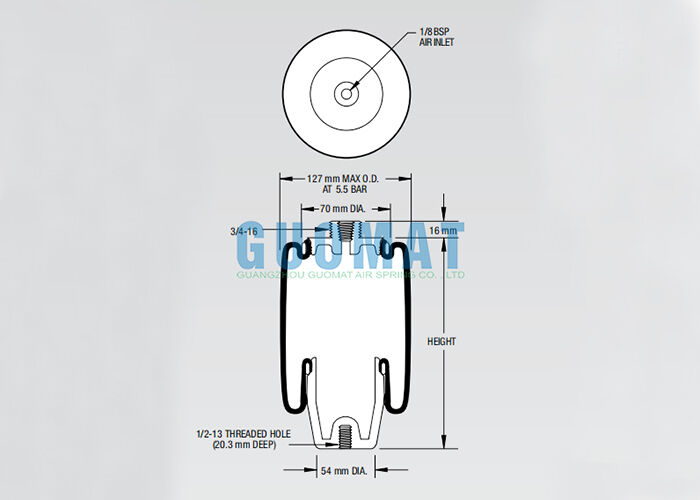

Technical Data

Air Inlet: 1/8BSP

Cover Plate Dia.: 70mm

Max. Outer Dia.: 127mm

Base Dia: 54mm

Threaded Hole: 1/2-13

Max. Height: 203mm

Min. Height: 89mm

Performance Data

Assembly Height (mm)	Volume @Bar (cu cm)	EFF Area @BAR (cm sq)	kN Force
			@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
240	1676	56	1.83	2.45	3.06	3.52	3.94
220	1547	62	1.82	2.52	3.18	3.81	4.37
200	1409	65	1.77	2.48	3.15	3.89	4.56
180	1271	65	1.71	2.42	3.07	3.83	4.51
160	1134	61	1.65	2.33	2.97	3.67	4.30
140	1000	58	1.63	2.22	2.83	3.48	4.06

Packaging & Delivery

Each air spring can be packed in an individual poly bag and carton. Strong export packaging is used to protect the product during transportation. Customized packaging and logo marking are also available.

Products in stock can normally be shipped within 3-7 working days. Shipping options include air freight, sea freight, and express services such as DHL, FedEx, and UPS.

After-Sales Support

GUOMAT provides technical support for model confirmation and replacement applications. If you provide the original Firestone part number, photos, dimensions, or application information, our team can help confirm the suitable GUOMAT replacement.
