2M2A Firestone Style W02-M58-3019 Truck Cab Air Shock 1/8 BSP Suspension Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	G3019

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$69.9-79.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Item Name:	Cabin Air Springs
Mounting Type:	Top Eye, Bottom Pin	Pressure Ability:	0.2-0.8 MPA
Sample:	Available	Spring:	Sleeve Air Springs
Material:	High-Strength Steel And Rubber	Firestone:	W02-M58-3019
Highlight:	Firestone style truck cab air shock , 1/8 BSP suspension air spring , 2M2A cab air shock absorber

2M2A Firestone Style W02-M58-3019 Truck Cab Air Shock 1/8 BSP Suspension Air Spring

The GUOMAT G3019 is a replacement Truck Cab Air Shock designed for applications using the Firestone Style W02-M58-3019 / 2M2A air spring. It features a durable rubber air sleeve and 1/8 BSP air fittings, providing reliable pneumatic suspension for truck cab and commercial vehicle applications.

This cab suspension air spring helps absorb road shocks and vibrations between the truck cab and chassis, reducing cab movement and improving driving comfort.

Compatible OEM Part Numbers

FIRESTONE STYLE 2M2A
FIRESTONE W02M583019
FIRESTONE W02 M58 3019
FIRESTONE W02-M58-3019

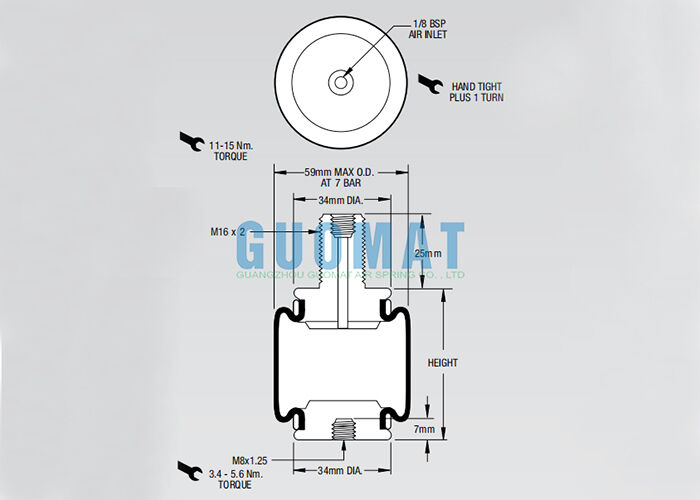

Technical Specifications

Air Inlet	1/8BSP
Base Diameter	34mm
Max. Outer Diameter	59mm
Base Height	25mm
Top Cover Plate	34mm
Threaded Hole	M8X1.25
Max. Height	66mm
Min. Height	30mm
Design Height	45mm

Performance Data

Assembly Height (mm)	Volume @ 7BAR (cu cm)	EFF Area @ 7BAR (cm²)	kN Force
			@3 BAR	@4 BAR	@5 BAR	@6 BAR	@7 BAR
55	80.30	10.4	0.32	0.41	0.52	0.62	0.73
45	70.46	13.6	0.42	0.55	0.68	0.82	0.95
35	58.99	14.8	0.45	0.60	0.75	0.90	1.04
25	40.56	15.6	0.49	0.64	0.79	0.94	1.09
