Payment & Shipping Terms:
|Main Material:||Natural Rubber||Position:||Rear Left|
|Other Names:||Air Spring Bag||Weight:||5.0|
|Car Make:||Audi||OEM:||7L6616503B 7L8616503B|

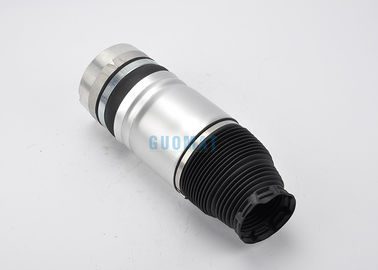

Audi Q7 Air Suspension VW TOUAREG Porsche Cayenne Audi Air Suspension Repair Parts
|Type||Air suspension spring||Model NO.||501015B|
|Position||Rear Left||Warranty||One year|
|Rubber type||Natural rubber||Place of origin||Guangzhou China(main land)|
|Manufacturer part NO.||4L0616503, 7L5616503F, 7L6616503B, 7L8616503B||Year||
2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
This Audi Air Suspension Parts fit for the following OEM :
7L8 616 001 , 7L8 616 040 D , 7L8616040D , 7L0 512 131 C , 7L0512131C , 7L0 412 327 A , 7L0412327A , 7L0 616 814 B , 7L0616814B,7L8 616 503 , 7L8616503B , 7L6 616 503 , 7L6616503B , 4L0 616 503 , 4L0616503 , 7L5 616 503 , 7L5616503F , 7L6 616 019 , 7L6616019D , 7L6616019E , 7L6 616 020 , 7L6616020D , 7L6616020E , 7L6616020A , 4L0616019 , 4L0 616 019 , 7L8616020C , 7L8 616 020 , 7L8616001 ,
Q7 (4L) , 3.0 TDi , 3.0 TDSi , 3.6 FSi , 4.2 FSi , 4.2 TDi , 6.0 TDi
Cayenne (955) , 3.2 , 3.6 , GTS 4.8 , S4.5 , S4.8 , Turbo 4.5 , Turbo S 4.5 , Turbo S 4.8
Touareg 7LA 7L6 7L7 2004 à 2010 , 2.5 R5 TDi , 3.0 TDi , 3.2 V6 , 3.6 V6 FSi , 4.2 V8 , 5.0 R50 TDi , 6.0 W12
Package size and weight:
|Description||PCS||Net Weight||Gross Weight||Length
|Air Suspension||1||3.55 KG||3.9||39.5||17||18||0.012|
The 8 steps to install a New Air Spring on Your Vehicle
Replacing a broken air spring may require the help of a mechanic, but you can cut down your expenses by simply installing it yourself.
1: Parking your car on a level surface then using the floor jack to lift it up. Place the jack stands underneath the vehicle for support.
2: Remove the wheels by detaching its lug nuts one by one. Use a wrench for this procedure.
3: Deflate the air spring by opening the air mouth on the top.
4: Detach the set of fasteners that secure the air spring in place. You can generally find these bolts on the control arm and under the hood. Keep in mind that the set of procedures for removing an air spring vary for each car, so make it a point to consult your owner's manual to see exactly how yours is removed.
5: Remove the old air spring away from the shock carefully. If needed, use a spring compressor to make the remove easier. You may reuse the O rings connecting the air spring to the shock.
6: Put the new air spring on the place where you removed the old one.
7: Reconnect it to the shock using the O rings you removed earlier. Make sure you apply lubricant on them before putting them back.
8: Reattach all the components that you removed. Recheck if there are no missing bolts, nuts and fittings.
Hong long is the GUOMAT warranty on air suspension parts?
GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.
How long does it take to receive my order?
GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.
Is it possible to return a part if I do not want it?
Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.
