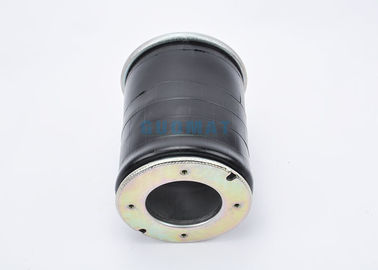

S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts

S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts

S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts
S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts
S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts
Product Details:
Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949
Model Number: 4023 N P03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber ,Steel Piston Firestone Bellows: 1T19F-11
Firestone: W01 M58 6348 GOODYEAR: 1 R 14-729
Other Name: Air Suspension Shock DUNLOP FR: D13B26
CF GOMMA: 204676 S.A.F: 3.229.0031.00
Highlight:

air ride springs

,

truck air bag suspension

S.A.F Truck Air Springs Bellows 1T19F-11 Complete W01 M58 6348 GOODYEAR 1 R 14-729





GUOMAT 1T4023NP03 Technical parameters



Screw Bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75

Screw Center Distance of Top Cover Plate : 210 mm

Distance Between Stud and Central Axis : 25 mm

Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :70 mm

Distance Between Gas Hole and Central Axis : 95 mm

Cover Plate

Top Cover Plate Diameter: Ø286 mm

Rubber Bellows

Rubber Bellows Natural Diameter: 320 mm

Rubber Bellows MAX Height : 680 mm

Rubber Bellows MIN Height : 226 mm

Working stroke : 454mm

Bumper block / Buffer block

Bumper Block height :58 mm

Bottom Piston

Bottom Piston Diameter : Ø260mm

Bottom Piston Height :178 mm

Piston Bolt

Piston Bolt Tooth : M12 X1.75

4 pieces of Bolt

Middle faster between center Bolt : 200 mm





S.A.F Truck Air Springs Cross References Bellows 1T19F-11



Cross References Vehicle​​s OEM References
CONTITECH 4023 N P03 S.A.F 3.229.0031.00
FIRESTONE Bellows 1T19F-11 S.A.F 3.229.2131.00
FIRESTONE COMPLETE W01 M58 6348 PIRELLI 1T19E 2204676
GOODYEAR 1 R 14-729 S.A.F 3.229.2231.00
PHOENIX 1D 28 B-10 1D28F-1
DUNLOP FR D13B26  D13A02 VIBRACOUSTIC V1D28B-10
CF GOMMA 1 T 19 E-2 CF GOMMA 204676
TAURUS KR 622-18

GART 2774505  D277



W01-M58-6348 / W01M586348 / WO1 M58 6348

1T19F-11 / 1T19F11 / 1T19F 11

4023 N P03 / 4023NP03



Manufacturer/ Original-part no. /Model
SAF - Holland 3.229.0031.00 2923 V
SAF - Holland 3.229.2131.00 2923 V
SAF - Holland 3.229.2231.00 2923 V
SAF - Holland 3.229.2431.00 2923 V
SAF - Holland 2923V
Schmitz 751 082 2923V
Scania 1723280



the routine model table of Assembly



Contitech Firestone Goodyear Phoenix Dunlop FR CF Gomma Taurus
4757 NP 09   9520   D 13T 02 1VSC 300-26
881 MB W01-M58-8966 1R 14-703 1DK 32-1 D 14B 36   KR 836-05
940 MB W01-M58-8602 1R11-700 1DK 21 D 11U 30   KR 730-01
881 MB W01-M58-8966 1R14-781   D 14B 36   KR 836-05
4390 NP 01   9505 1KF 21-1NP D 12T 10
4390 N2 W01-M58-8619   1KF 21-2
4390 NP 02   9506 1KF 21-2NP D 12T 11
4713 NP 02 W01-M58-9760 1R12-763 1DF 22C-1 D 12B 24 1TS 300-28
6608 NP 01 W01-M58-8474 1R10-704 1DF 17B-1
4159 NP 03 W01-M58-7548 1R12-701 1DK 21B-4 D 12B 01 1T 323-40 KR 509-22
912 NP 01 W01-M58-8502 1R14-728 1D 28D-10
6605 NP 01 W01-M58-8472 1R11-805 1DF20D-1 D11B42
6606 NP 01 W01-M58-8477   1D 20E-1
910 16P 449 W01-358-8829 1R12-405
975 N W01-095-0437   1E 10 1T 19E-2
910 10P 311 W01-358-9039 1R12-095       AS 500-9039
4023 NP 03 W01-M58-6348 1R14-729 1D 28A-10 D 13B 26 1T 19E-2 KR 624-18



The piston picture



S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts 0S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts 1S.A.F Truck Air Springs Bellows 1T19F-11 Complete Air Ride Suspension Parts 2



W01-095-0087 148 W01-095-4046 148 W01-R58-4100 139 W01-R58-4066 140 W01-M58-8474 71 W01-095-0204 144 W01-095-0226 145 W01-M58-8355 93 W01-M58-8186 66 W01-M58-8472 42 W01-095-0063 147 W01-095-4047 146 W01-095-0189 144 W01-M58-9704 88 W01-M58-8363 91 W01-M58-8361 90 W01-M58-7348 62 W01-M58-7548 63 W01-M58-8859 63 W01-M58-9089 61 W01-M58-6297 65 W01-M58-9720 83 W01-358-9361 60 W01-M58-8185 65 W01-M58-6257 64 W01-M58-9706 92 W01-M58-6367 79 W01-M58-6315 66 W01-M58-6317 66 W01-358-9082 54 W01-095-0021 149 W01-095-4058 148 W01-095-0228 150 W01-095-0555 158 W01-M58-8514 35 W01-M58-8513 36 W01-M58-0736 62 W01-M58-0028 96 W01-M58-8765 100 W01-M58-8766 106 W01-M58-6361 105 W01-M58-6364 103 W01-M58-6345 102 W01-M58-7358 105 W01-M58-6338 101 W01-M58-6348 103 W01-M58-8721 76 W01-M58-8722 77 W01-M58-6359 93 W01-M58-6334 97 W01-M58-8747 78 W01-M58-8786 99 W01-095-0190 154 W01-M58-5522 98
