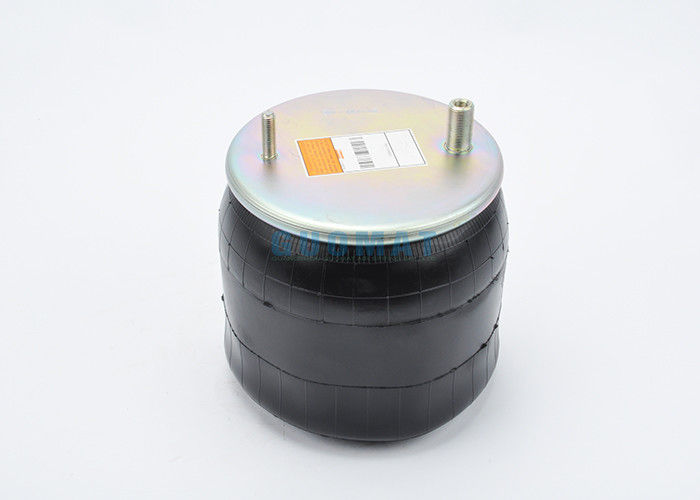

Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension

China Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension supplier
Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension supplier Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension supplier Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension supplier Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension supplier Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension supplier

Large Image :  Steel Piston Truck Air Ride Suspension Kits / Truck Air Bag Suspension

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949
Model Number: 4157 NP 05

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber ,Steel Piston Firestone Bellows: 1T15MPV-7
Firestone: W01 M58 7074 GOODYEAR: 1R11-106
Other Name: Air Spring Complete DUNLOP FR: D 12 B17
WABCO: 951 811 106 0 R.O.R./ MERITOR: 21222442

Truck Air Springs GOODYEAR 1R11-106 4157 NP 05 R.O.R./ MERITOR 21222442 D 12 B17





GUOMAT 1T4157NP05 Technical parameters



screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth : 2 pcs X M12X1.75

Center Distance Between Two Studs : 157.5 mm

Combined link rod / Combo Stud

Gas Hole / Air inlet : M12x1,5.

Combo Stud Tooth :M22x1,5

Cover Plate

Top Cover Plate Diameter: Ø227 mm

Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 565 mm

Rubber Bellows MIN Height : 208 mm

Working Stroke : 357 mm

Bumper block / Buffer block

Bumper Block Height : 97mm

Bottom Piston

Bottom Piston Diameter : Ø200 mm

Bottom Piston Height :169 mm

Piston Bolt

Piston Bolt Tooth : M12X1.75

2 Pieces of Bolt

Center Distance Between two Bolt :100 mm





4157 NP 05 Vechiles OEM References R.O.R./ MERITOR



Cross References Vehicle​​s OEM References
FIRESTONE 1T15MPV-7 W01 M58 7074 R.O.R./ MERITOR 21222442
GOODYEAR 1R11-106 WEWELER US07074
PHOENIX 1DK21 A-31 Airtech 133282
CF GOMMA 1TC300-38 Airtech 39002-A3P
TAURUS KR 913-57 Pirelli : 1T300-30
CONTITECH 4157 NP 05/61380 WABCO 951 811 106 0
CONTITECH 4157 NP 09 Granning 15732
Dunlop FR : D 12 B17



Complete NO.:W01 M58 7074 / W01-M58-7074 / W01M58 7074

Rubber Bellows NO.: 1T15MPW-7/ 1T15MPW7 /1T15MPW 7



the main FIRESTONE OF Air Springs


W010050442 W010050443 W010050444 W010050445 W010066910
W010950175 W010950176 W010950189 W010950190 W010950191
W010950192 W010950195 W010950197 W010950198 W010950204
W010950175 W010950176 W010950189 W010950190 W010950191
W010950192 W010069082 W010950008 W010950009 W010950030





Different producers of the corresponding number



Contitech Firestone Goodyear Phoenix Dunlop FR CF Gomma Taurus
4913 NP 02 W01-095-0500 1R14-753 1D 28H-16 D 14B 42 1T 19E-93 KR 625-16
4159 NP 06 W01-M58-0736
810 NTB W01-M58-0749 1R14-713 1DK 28A 4   1T 19E-1 UR 621-03
4022 NP 02 W01-M58-0756 1R11-709   D 11U 40
836 MB W01-M58-0775   1DF 25-4
836 MB W01-M58-0776 1R12-700 1DF 25-1 D 13U 32
887 M W01-M58-0780 1R11-796
889 MK 2 W01-M58-0781
4004 NP 02 W01-M58-0919
  W01-358-5770 1R10-101 566203027
