| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | FR D13B10 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber ,Steel Piston | Firestone Bellows: | 1T19L-11 |
|---|---|---|---|
| Firestone: | W01 M58 7358 | GOODYEAR: | 1 R 14-727 |
| Other Name: | SAF Axle Air Spring Suspension | CONTITECH: | 4813 N P07 |
| DUNLOP FR: | D13B22 | S.A.F: | 3.229.0005.00 |
| High Light: | air ride springs,truck air bag suspension |
||

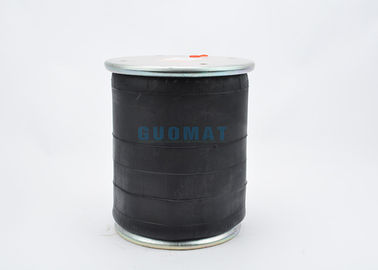

Dunlop Air Spring Bellows FR D13B10 CONTITECH 4813 N P07 for SAF / SCANIA BUSSAR

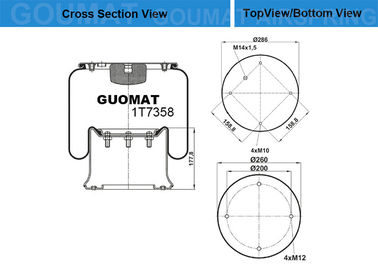

GUOMAT 1T4813NP07 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth : 4 pcs XM10X1.5
Distance Between Stud and Central axis : 79.5 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M14X1.5
Distance Between Gas Hole and Stud : 79.5mm
Distance Between Gas Hole and Central axis : 79.5 mm

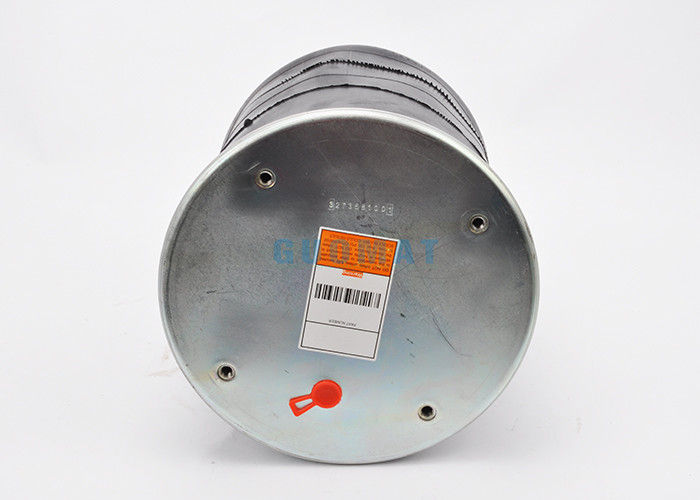

❸ Cover Plate
Top Cover Plate Diameter: Ø286 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 320 mm
Rubber Bellows MAX Height : 660 mm
Rubber Bellows MIN Height : 240 mm
Working Stroke : 420 mm
❺ Bumper block / Buffer block
Bumper Block height :41mm

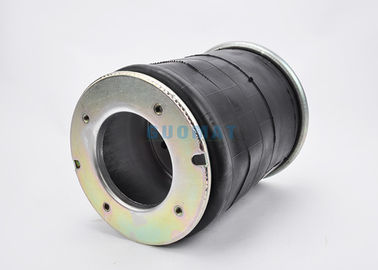

❻ Bottom Piston
Bottom Piston Diameter : Ø260 mm
Bottom Piston Height :178 mm
❼ Piston Bolt
Piston Bolt Tooth : M12X1.75
4 pieces of Bolt
Distance Between two faster Bolt : 200 mm
Distance Between two closer Bolt :158.8 mm
FR D13B10 Dunlop Air Spring Bellows Vechiles OEM References SAF / SCANIA
| Cross References | Vehicles OEM References |
| CONTITECH 4813 N P07 | S.A.F 3.229.0005.00 |
| FIRESTONE 1T19L-11 W01 M58 7358 | SCANIA/SCANIA BUSSAR 1107674 |
| GOODYEAR 1 R 14-727 | SCANIA/SCANIA BUSSAR 1314906 |
| PHOENIX 1 D 28 B-9 | SCANIA/SCANIA BUSSAR 255293 |
| DUNLOP FR D13B10 | SCANIA/SCANIA BUSSAR 255295 |
| DUNLOP FR D13B22 | SCANIA/SCANIA BUSSAR 298568 |
| CF GOMMA 1 T 19 E-2BR 97764 | SCANIA/SCANIA BUSSAR 325748 |
| TAURUS KR 622-01 |
AIRTECH
130822
AIRTECH PROD. NO.
34813 K
AUTOMINT
5001
BLACKTECH
RML 75924 C
CF GOMMA
1T19E-2 BR
CONNECT
MD 14813-K
CONNECT ORDER NO.
355420.260.2.01
CONTINENTAL
4813 N PO7
CONTITECH
50046
DUNLOP FRANCE
D1 3B03/D13B22
FIRESTONE REF.
W01 M58 7358
STYLE NO.
1T19L-11
GOODYEAR
1R14-727
GRANNING
15653
PHOENIX
1D 28 B-9
PIRELU
1T19E-2 BR
PIRELLI ARTICLE NO.
97764
ROADLINK
22069
TAURUS
KR 622-01
TTC
4A7210
UC
P1022
VIBRACOUSTIC
V1D28 B-9
WABCO
951 814 727 0
Contitech
4813NP07
Firestone
W01-M58-7358
Goodyear
1R14-065
1R14-727
Phoenix
1 D28B9
CF Gomma
1T19E-2 BR
SCANIA
1107674
1314906
255293
255295
298568
325748
W01 M58 7358 / W01-M58-7358 / W01M587358
Loading cap .At 5.0 bar :25.0 kN
Loading cap .At 7.0 bar :36.5 kN
4813 N P07 72299
Manufacturer Original-part no. Model
Scania 1107674 Series 3
Scania 1314906 Series 3
Scania 1865755 Series 3
Scania 255293 Series 3
Scania 298568 Series 3
13,5 kg
M10: max. 35 Nm
M12: max. 70 Nm
M14x1.5: max. 20 Nm
FIRESTONE FLEXIBLE NUMBER is 1T19L-11 for W01M587358

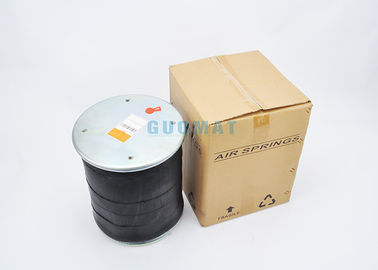

Usually carton packaging, each 4813NP07 has a separate carton packaging.
