941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36

China 941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36 supplier
941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36 supplier 941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36 supplier 941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36 supplier 941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36 supplier 941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36 supplier

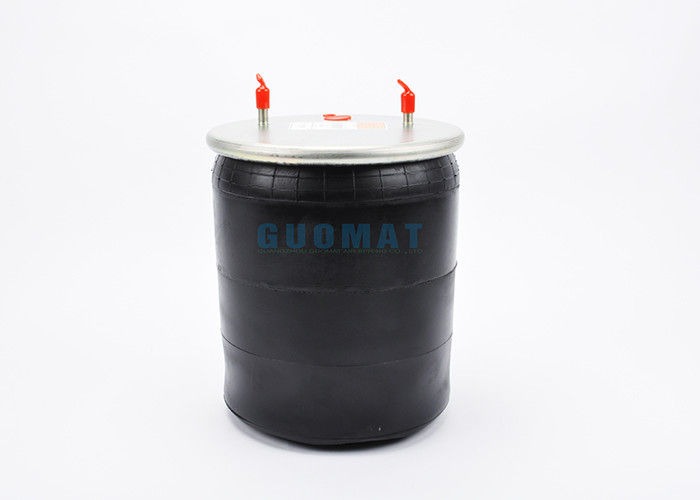

Large Image :  941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949
Model Number: 941 MB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston Rubber Bellows NO.: 1T17-8.3
Firestone: W01M588619 GOODYEAR: 1R11-701
Other Name: Air Shock Suspension Taurus: KR 730-01
BPW: BPW 30 WABCO: 951 811 762 0

941 MB Air Suspension Spring System W01M588619 for BPW 30 or Pirelli 1TC 300-36

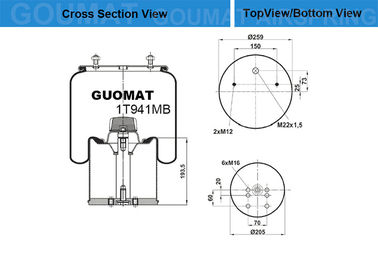

GUOMAT 1T941MB Technical parameters



screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

Distance Between Stud and Central axis : 25 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Stud and Central axis : 73 mm

Cover Plate

Top Cover Plate Diameter: Ø259 mm

Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 610mm

Rubber Bellows MIN Height : 285mm

Design height 360mm

Working stroke 325mm

Bumper block / Buffer block

Bumper Block height :41mm

Bottom Piston

Bottom Piston Diameter : Ø205mm

Bottom Piston Height :193 mm

Piston Bolt

Piston Bolt Tooth : M16 X2.0

6 pieces of Bolt

Middle inside between center Bolt : 70 mm

Inside the most close Bolt :20 mm

Inside and the beside Bolt: 60 mm





941 MB Spring System to BPW 30



Cross References Vehicle​​s OEM References
CONTITECH 941 MB Granning : 15918
FIRESTONE W01 M58 8619 W01M588619 WABCO : 951 811 762 0
FIRESTONE Bellows 1T17-8.3 Pirelli : 1TC 300-36
Phoenix: 1 DK 21 BPW Type : BPW 30
Taurus : KR 730-01 BPW: 05.429.40.28.1
Dunlop FR : D11B30
Goodyear : 1R11-701



0542940361 0542943200 0542940101 0542940281

BPW 05.429.40.30.1 05.429.43.20.0 05.429.41.24.1 05.429.40.09.1 05.429.40.34.0 05.801.09.73.0 05.429.42.18.0 05.429.40.28.1 05.429.42.18.1





Weight 9.78kg

Space required 325mm

Loading cap.at 5.0bar 2.3kn

Loading cap.At7.0bar 28.5kn





941 MB Air Suspension Spring with other kind numbers



Contitech Firestone Goodyear Phoenix Dunlop FR CF Gomma Taurus
941 MB W01-M58-8619 1R11-701 1DK 21 D 11B 30 1TC 300-36 1TC 300-36
941 MB W01-M58-8620 1R11-700 1DK 21 D 11U 30 1TC 300-36 UR 7300-1T





Truck Air springs can fit for the below trucks



DAF Truck
Mercedes Truck
Renault Truck
Scania Truck
Volvo Truck
ERF Truck
Foden Truck
Iveco Truck
MAN Truck

and so on





941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36
