6603NP01 Truck Air Springs VOL-VO 20573312 Model B12R / VOL-VO 3178706 / VOL-VO 3195240

Name: 6603NP01 Truck Air Springs VOL-VO 20573312 Model B12R / VOL-VO 3178706 / VOL-VO 3195240
Brand: GUOMAT
SKU: 6603 N P01
Price: 59 USD
Availability: InStock
Rating: 4.9 (192 reviews)

Product Details:

Place of Origin:	Guangdong , China
Brand Name:	GUOMAT
Certification:	ISO/TS16949
Model Number:	6603 N P01

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$59-159/pc
Packaging Details:	strong carton box or as customer's need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,paypal or others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Bellows ,Steel Piston	CONTITECH:	6603 N P01
Other Name:	VOL-VO Air Spring	Cover Plate OD:	259 MM
Air Inlet / Air Fitting:	M16	Weight:	8,4 Kg
High Light:	air ride springs , firestone air springs

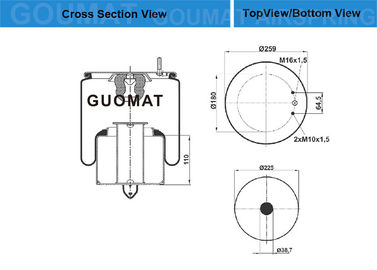

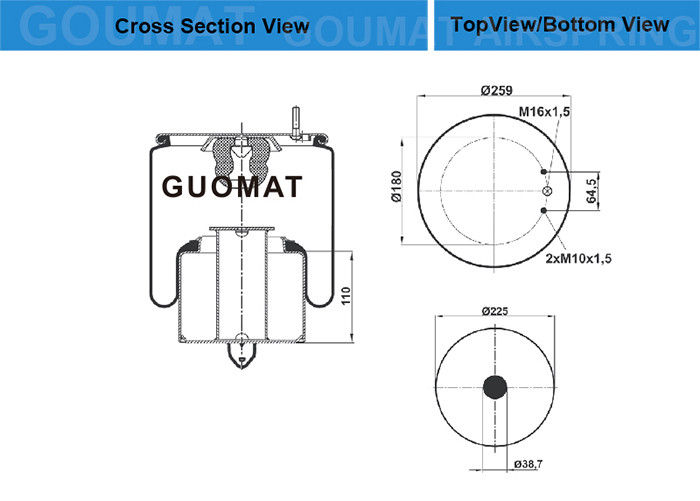

6603NP01 Truck Air Springs VOL-VO 20573312 Model B12R / VOL-VO 3178706 / VOL-VO 3195240

GUOMAT NO. :1T603NP01

OEM Cross Number:

CONTITECH 6603 N P01 / 6603NP01 / 6603N P01

VOL-VO 20 573 312

Weight : 8,4 kg
M10: max. 40 Nm
M16x1.5: max. 20 Nm

OEM Suspension Supplier Number:

VOL-VO 20 573 312 Model B 12 R

VOL-VO 20 573 312 Model B 12 R

VOL-VO 3 171 693
VOL-VO 3 171 693
VOL-VO 3 178 706
VOL-VO 3 178 706
VOL-VO 3 195 240
VOL-VO 3 195 240

Technical data

6603NP01 Truck Air Springs VOL-VO 20573312 Model B12R / VOL-VO 3178706 / VOL-VO 3195240 0

GUOMAT NO.	Reference	Order NO.	Force (lbs)		Max OD (mm)	Design height(mm)	Height		Narural frequ.[cpm]
GUOMAT NO.	Reference	Order NO.	80 psi	100 psi	Max OD (mm)	Design height(mm)	Min	MAX	Narural frequ.[cpm]
1110.5-17A317	11 10.5-17 A 317	161018	6930	8670	320.04	368.3	180	546	68
1110.5-17A316	11 10.5-17 A 316	161094	6930	8670	320.04	368.3	180	546	68
1110.5-17A364	11 10.5-17 A 364	161095	6930	8670	320.04	368.3	180	546	68
1110.5-17A365	11 10.5-17 A 365	161096	6930	8670	320.04	368.3	180	546	68
1110.5-17A366	11 10.5-17 A 366	161097	6930	8670	320.04	406.4	180	546	68
1110.5-17A367	11 10.5-17 A 367	161098	6930	8670	320.04	368.3	180	546	68
1110.5-17A368	11 10.5-17 A 368	161099	6930	8670	320.04	368.3	180	546	68
1110.5-17A377	11 10.5-17 A 377	161100	6930	8670	320.04	368.3	180	546	68
1110.5-17A388	11 10.5-17 A 388	161101	6930	8670	320.04	368.3	180	546	68
1110.5-17A405	11 10.5-17 A 405	161102	6930	8670	320.04	368.3	180	546	68
1110.5-17A507	11 10.5-17 A 507	161103	6930	8670	320.04	368.3	180	546	68
1110.5-17A556	11 10.5-17 A 556	161104	6930	8670	320.04	368.3	180	546	68
					0	0	0	0
1110.5-21 A 318	11 10.5-21 A 318	161105	6960	8690	347.98	457.2	218	686	59
1110.5-21A369	11 10.5-21 A 369	161106	6960	8690	347.98	457.2	218	686	59
1110.5-21A370	11 10.5-21 A 370	161107	6960	8690	347.98	457.2	218	686	59
1110.5-21A375	11 10.5-21 A 375	161108	6960	8690	347.98	457.2	218	686	59
1110.5-21A313	11 10.5-21 A 313	161119	6960	8690	347.98	457.2	218	686	59
