Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1R12-749 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | CONTI: | 4158NP03 |
|---|---|---|---|
| Other Name: | Schmitz Suspension Air Spring | Cover Plate OD: | 259 MM |
| Air Inlet / Air Fitting: | M22 | Goodyear Number: | 1R12-749 |
| VIBRACOUSTIC: | V1DK20B-1 | Scania: | 2198334 |
| High Light: | air ride springs,truck air bag suspension |
||

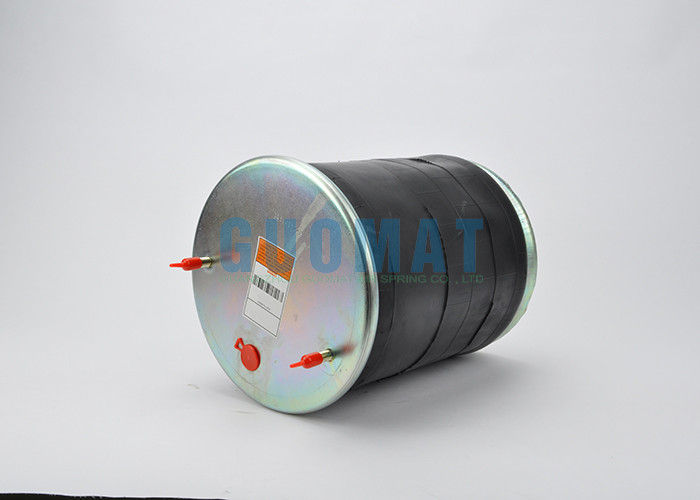

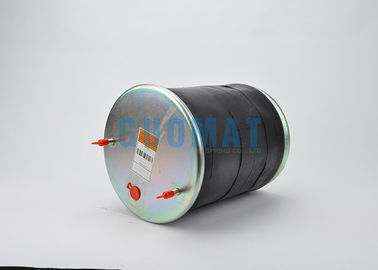

CONTI 4158NP03 Truck Air Springs GOODYEAR 1R12-749 VIBRACOUSTIC V1DK20B-1 Schmitz
OEM Cross Number:
GUOAMT NO.:1T4158NP03
CONTITECH 4158 N P03 / 4158NP03 / 4158N P03
PHOENIX 1DK 20 B-1 / 1DK20B-1 / 1DK20B1
DUNLOP FR D12B22
Contitech Number: 4158 N P03
Dunlop FR Number: D12B22
Firestone Number: W01-M58-6285
Firestone Number: W01 M58 8185
Firestone Number: 1T15MPW-9
Goodyear Number: 1R12-749
Goodyear Number: 566-24-3-510
Airtech Number: 38185 C PP
Blacktech Number: RML75269CP
Phoenix Number: 1 DK 20 B-1
Primeride Number: 54158 A P03
Vibracoustic Number: V1DK20B-1
CONTI Number: 4158NP03
DUNLOP Number: FR Number: D12A10
DUNLOP Number: FR Number: D12B22
FIRESTONE Number: 1T15MP-9
FIRESTONE Number: 1T15MPW-9
FIRESTONE Number: W01M586285
FIRESTONE Number: W01M588185
GOODYEAR Number: 1R12-749
GOODYEAR Number: 566-24-3-510
AIRTECH Number: 133782
AIRTECH Number: 34158KPP
AIRTECH Number: 38185KPP
GART Number: D278/HS
PHOENIX Number: 1DK20B-1
VIBRACOUSTIC Number: V1DK20B-1
VIBRACOUSTIC Number: V1KF21-2
OEM Suspension Supplier Number:
SCHMITZ-ANHANGER 750999
WEWELER US06285
Schmitz 014 892
Schmitz 750 999
Weweler US 06285
Scania 2198334
Schmitz Number: 014 892
Schmitz Number: 750 999
Weweler Number: US 06285
ROR Number: MLF7037
ROR Number: MLF7179
SCHMITZ Number: 750999
WABCO Number: 9518127490
WEWELER Number: US06285F
Gart Number: 278.1.530/1
Gart Number: 278.1.530
Gart Number: D278/HS
Neotec Number: NEOTEC
AIRTECH
133782
AIRTECH PROD. NO.
38185 KPP
AUTOMINT
2920
BLACKTECH
RML 79296 CP
CONTINENTAL
4158 N P03
CONTITECH
60452
DUNLOP FRANCE
D12B22
FIRESTONE REF.
WO1 M58 8185
STYLE N0.
1T15MP-9
GOODYEAR
1R12-749
GRANNING
1 5657
PHOENIX
1DK20B-1
ROADLINK
22043
TAURUS
DA 34158/0103
WABCO
951812 749 0

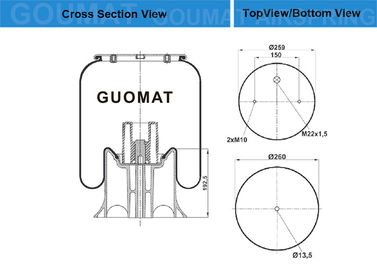

Technical data
Weight : 7,5 kg
K009
M10: max. 35 Nm
M12: max. 70 Nm
M22x1.5: max. 20 Nm
| 1R12 12" DIAMETER ROLLING LOBE | ||||||||
| Goodyear 12" Diameter Rolling Lobe Air Springs | ||||||||
| Part Number |
Top Plate Qty |
Bottom Piston Qty |
Top Plate Dia |
Bottom Plate Dia. |
Collapsed Height |
Flexmember | Piston |
Piston Type |
| 1R12-014 | 2 | 1 | 7.7 | 10.1 | 7.8 | 566-24-3-019 | 566-20-7-011 | A |
| 1R12-028 | 2 | 2 | 7.5 | 10.12 | 7.1 | 566-24-3-024 | 566-20-7-079 | S |
| 1R12-047 | 2 | 1 | 7.7 | 10.1 | 7.8 | 566-24-3-019 | 566-20-7-011 | A |
| 1R12-066 | 2 | 4 | 9 | 10.1 | 6.5 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-069 | 3 | 1 | 9 | 9.8 | 7.5 | 566-24-3-038 | 566-20-7-235 | C |
| 1R12-090 | 2 | 2 | 9 | 10.1 | 6.5 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-092 | 2 | 4 | 9 | 10.1 | 7.7 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-093 | 2 | 2 | 9 | — | 7.7 | 566-24-3-038 | — | — |
| 1R12-095 | 2 | 1 | 9 | 9.25 | 4.4 | 566-24-3-067 | 566-20-7-014 | S |
| 1R12-097 | 2 | 1 | 9 | — | 4.4 | 566-24-3-067 | — | — |
| 1R12-103 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-066 | 566-20-7-006 | A |
| 1R12-113 | 2 | 4 | 9 | — | 9.4 | 566-24-3-066 | — | — |
| 1R12-127 | 2 | 2 | 7.5 | 9.27 | 7.1 | 566-24-3-024 | 566-20-7-240 | C |
| 1R12-132 | 2 | 4 | 9 | 10.1 | 6.1 | 566-24-3-076 | 566-20-7-036 | A |
| 1R12-139 | 2 | 4 | 9 | 10.13 | 12.5 | 566-24-3-076 | 566-20-7-006 | A |
| 1R12-142 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-066 | 566-20-7-006 | A |
| 1R12-145 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-066 | 566-20-7-006 | A |
| 1R12-154 | 2 | 2 | 7.7 | 10.12 | 8 | 566-24-3-048 | 566-20-7-120 | C |
| 1R12-156 | 2 | 1 | 9 | 8.6 | 4 | 566-24-3-067 | 566-20-7-055 | A |
| 1R12-167 | 2 | 4 | 9 | 10.1 | 7.7 | 566-24-3-066 | 566-20-7-080 | C |
| 1R12-169 | 3 | 4 | 9 | 10.1 | 7.3 | 566-24-3-076 | 566-20-7-036-03 | A |
| 1R12-178 | 2 | 2 | 9 | 8.6 | 5.1 | 566-24-3-067 | 566-20-7-055 | A |
| 1R12-182 | 2 | 2 | 9 | 10.12 | 6.2 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-185 | 2 | 4 | 9 | 10.13 | 7.6 | 566-24-3-066 | 566-20-7-080 | C |
| 1R12-188 | 2 | 2 | 9 | 10.12 | 7.1 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-195 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-066 | 566-20-7-006 | A |
| 1R12-204 | 2 | 2 | 9 | 8.6 | 3.7 | 566-24-3-067 | 566-20-7-055 | A |
| 1R12-205 | 2 | 2 | 9 | 8.6 | 5.1 | 566-24-3-076 | 566-20-7-055 | A |
| 1R12-212 | 2 | 2 | — | 10.12 | 6.2 | 566-24-3-072 | 566-20-7-079 | S |
| 1R12-217 | 2 | 2 | — | 10.12 | 7.3 | 566-24-3-048 | 566-20-7-120 | C |
| 1R12-220 | 2 | 4 | 9 | 10.1 | 7.7 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-256 | 2 | 4 | 10 | 9.9 | 9.5 | 566-24-3-090 | 566-20-7-159 | C |
| 1R12-261 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-066 | 566-20-7-006 | A |
| 1R12-265 | 2 | 4 | 9 | 10.1 | 7.7 | 566-24-3-066 | 566-20-7-080 | C |
| 1R12-274 | 2 | 2 | 9 | 10.12 | 8.1 | 566-24-3-097 | 566-20-7-079 | S |
| 1R12-279 | 2 | 4 | 9 | 10.1 | 9 | 566-24-3-066 | 566-20-7-080 | C |
| 1R12-281 | 2 | 5 | 9 | 10.1 | 9 | 566-24-3-066 | 566-20-7-080 | C |
| 1R12-285 | 2 | 4 | 9 | 10.12 | 7 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-288 | 2 | 2 | 7.75 | 10.12 | 7 | 566-24-3-048 | 566-20-7-120 | C |
| 1R12-303 | 2 | 1 | 9 | 11.1 | 8.6 | 566-24-3-108 | 566-20-7-116 | C |
| 1R12-304 | 2 | 2 | 7.75 | 9.27 | 7.1 | 566-24-3-048 | 566-20-7-240 | C |
| 1R12-309 | 3 | 5 | 9 | 9.5 | 6 | 566-24-3-067 | 566-20-7-164 | S |
| 1R12-324 | 2 | 1 | 9 | 8.6 | 3.7 | 566-24-3-067 | 566-20-7-055 | A |
| 1R12-325 | 2 | 1 | 9 | 8.6 | 5.1 | 566-24-3-076 | 566-20-7-055 | A |
| 1R12-335 | 2 | 4 | 9 | 10.13 | 9.4 | 566-24-3-090 | 566-20-7-006 | A |
| 1R12-350 | 3 | 1 | 9 | 9.25 | 5.3 | 566-24-3-061 | 566-20-7-197 | A |
| 1R12-351 | 3 | 1 | 9 | 9.25 | 5.3 | 566-24-3-061 | 566-20-7-197 | A |
| 1R12-355 | 2 | 5 | 9 | 10.1 | 5.6 | 566-24-3-076 | 566-20-7-036 | A |
| 1R12-356 | 2 | 5 | 9 | 10.1 | 6.5 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-357 | 2 | 4 | 9 | 10.13 | 10.7 | 566-24-3-066 | 566-20-7-006 | A |
| 1R12-358 | 3 | 5 | 9 | 10.1 | 7.7 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-359 | 2 | 1 | 9 | 9.25 | 5.3 | 566-24-3-061 | 566-20-7-197 | A |
| 1R12-365 | 2 | 2 | 9 | 10.23 | 8.1 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-366 | 1 | 4 | 9 | 9.5 | 7.3 | 566-24-3-038 | 566-20-7-163 | S |
| 1R12-367 | 1 | 4 | 9 | 9.5 | 5.5 | 566-24-3-076 | 566-20-7-164 | A |
| 1R12-369 | 2 | 1 | 9 | 10.13 | 6.7 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-370 | 2 | 5 | 9 | 10.1 | 6.1 | 566-24-3-076 | 566-20-7-036 | A |
| 1R12-375 | 1 | 4 | 9 | 9.5 | 7.8 | 566-24-3-066 | 566-20-7-163 | S |
| 1R12-383 | 2 | 1 | 9 | 9.25 | 4.4 | 566-24-3-061 | 566-20-7-014 | S |
| 1R12-394 | 3 | 2 | 9 | — | 7.3 | 566-24-3-038 | — | — |
| 1R12-395 | 2 | 4 | 9 | 10.1 | 7.7 | 566-24-3-066 | 566-20-7-080 | C |
| 1R12-396 | 3 | 2 | 9 | 9.27 | 7.3 | 566-24-3-038 | 566-20-7-240 | C |
| 1R12-400 | 2 | 1 | 9 | 10.12 | 6.2 | 566-24-3-038 | 566-20-7-246 | S |
| 1R12-401 | 2 | 2 | 9 | 10.23 | 6.7 | 566-24-3-038 | 566-20-7-221 | C |
| 1R12-402 | 2 | 1 | 9 | 10.13 | 8.1 | 566-24-3-097 | 566-20-7-246 | S |
| 1R12-403 | 2 | 1 | 9 | 10.13 | 7.25 | 566-24-3-097 | 566-20-7-246 | S |
| 1R12-404 | 2 | 1 | 9 | 10.31 | 8.1 | 566-24-3-097 | 566-20-7-246 | S |
| 1R12-405 | 2 | 1 | 9 | 10 | 7 | 566-24-3-097 | 566-20-7-220 | C |
| 1R12-421 | 2 | 4 | 9 | 10.1 | 7 | 566-24-3-076 | 566-20-7-158 | C |
| 1R12-422 | 2 | 4 | 9 | 10.1 | 6.1 | 566-24-3-076 | 566-20-7-246 | S |
| 1R12-423 | 2 | 4 | 9 | 10.13 | 8.1 | 566-24-3-038 | 566-20-7-246 | S |
| 1R12-424 | 2 | 2 | 9 | 10.23 | 8.1 | 566-24-3-097 | 566-20-7-246 | S |
| 1R12-432 | 2 | 1 | 9 | 10 | 6.7 | 566-24-3-066 | 566-20-7-236 | C |
| 1R12-432 | 2 | 4 | 7.9 | 10.13 | 9.5 | 566-24-3-048 | 566-20-7-006 | A |
| 1R12-435 | 2 | 1 | 9 | 9.25 | 4.4 | 566-24-3-067 | 566-20-7-014 | S |
| 1R12-436 | 2 | 4 | 9 | 10.1 | 7.9 | 566-24-3-038 | 566-20-7-158 | C |
| 1R12-437 | 2 | 4 | 9 | 10.1 | 5.5 | 566-24-3-076 | 566-20-7-156 | C |
| 1R12-438 | 2 | 4 | 9 | 10.1 | 7 | 566-24-3-038 | 566-20-7-158 | C |
| 1R12-439 | 2 | 1 | 9 | 9.8 | 9.8 | 566-24-3-066 | 566-20-7-237 | C |
| 1R12-441 | 2 | 1 | 9 | 9.8 | 7.8 | 566-24-3-038 | 566-20-7-235 | C |
| 1R12-445 | 2 | 4 | 9 | 10.1 | 5.5 | 566-24-3-097 | 566-20-7-158 | C |
| 1R12-446 | 2 | 4 | 9 | 10.1 | 7.9 | 566-24-3-097 | 566-20-7-158 | C |
| 1R12-454 | 3 | 2 | 9 | 10.12 | 7.3 | 566-24-3-038 | 566-20-7-079 | S |
| 1R12-462 | 2 | 1 | 9 | 10.13 | 8.1 | 566-24-3-038 | 566-20-7-246 | S |
| 1R12-467 | 2 | 4 | 9 | 10.13 | 7.6 | 566-24-3-066 | 566-20-7-005 | A |
| 1R12-480 | 2 | 1 | 9 | 9.8 | 7.4 | 566-24-3-066 | 566-20-7-235 | C |
| 1R12-481 | 2 | 1 | 9 | 9.8 | 7.4 | 566-24-3-097 | 566-20-7-235 | C |
| 1R12-484 | 2 | 2 | 9 | 9.8 | 10.5 | 566-24-3-038 | 566-20-7-215 | C |
| 1R12-485 | 2 | 2 | 9 | 9.8 | 9.9 | 566-24-3-038 | 566-20-7-215 | C |
| 1R12-486 | 2 | 2 | 9 | 9.8 | 10.5 | 566-24-3-038 | 566-20-7-215 | C |
| 1R12-487 | 2 | 1 | 9 | 9.8 | 5.5 | 566-24-3-067 | 566-20-7-239 | C |
| 1R12-492 | 2 | 4 | 9 | 10.1 | 5.5 | 566-24-3-076 | 566-20-7-036 | A |
| 1R12-498 | 2 | 1 | 9 | 9.8 | 9.2 | 566-24-3-097 | 566-20-7-237 | C |
| 1R12-499 | 2 | 1 | 9 | 9.8 | 6.7 | 566-24-3-038 | 566-20-7-238 | C |
| 1R12-502 | 2 | 1 | 9 | 9.9 | 7.1 | 566-24-3-097 | 566-20-7-235 | C |
| 1R12-504 | 2 | 1 | 9 | 9.8 | 10 | 566-24-3-066 | 566-20-7-237 | C |
| 1R12-505 | 2 | 1 | 9 | 9.8 | 8 | 566-24-3-076 | 566-20-7-235 | C |
| 1R12-508 | 2 | 1 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-251 | C |
| 1R12-509 | 2 | 4 | 9 | 10.13 | 7.6 | 566-24-3-038 | 566-20-7-005 | A |
| 1R12-511 | 2 | 2 | — | 9.27 | 6.2 | 566-24-3-048 | 566-20-7-240 | C |
| 1R12-512 | 2 | 4 | 9 | 10.1 | 6.2 | 566-24-3-076 | 566-20-7-156 | C |
| 1R12-523 | 2 | 1 | 9 | 10 | 6.7 | 566-24-3-066 | 566-20-7-236 | C |
| 1R12-523 | 2 | 4 | 9 | 10.1 | 10.3 | 566-24-3-038 | 566-20-7-080 | C |
| 1R12-532 | 2 | 1 | 9 | 9.8 | 7.4 | 566-24-3-097 | 566-20-7-235 | C |
| 1R12-538 | 2 | 1 | 9 | 10 | 6.7 | 566-24-3-038 | 566-20-7-236 | C |
| 1R12-538 | 2 | 4 | 9 | 10.1 | 4.7 | 566-24-3-076 | 566-20-7-036 | A |
| 1R12-543 | 2 | 2 | 9 | 9.8 | 7 | 566-24-3-076 | 566-20-7-212 | C |
| 1R12-552 | 2 | 2 | 9 | 9.8 | 9.9 | 566-24-3-038 | 566-20-7-215 | C |
| 1R12-553 | 2 | 2 | 9 | 9.8 | 7.4 | 566-24-3-038 | 566-20-7-213 | C |
| 1R12-554 | 2 | 2 | 9 | 9.8 | 8.2 | 566-24-3-038 | 566-20-7-214 | C |
| 1R12-555 | 2 | 2 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-253 | C |
| 1R12-556 | 2 | 2 | 9 | 9.3 | 5.4 | 566-24-3-067 | 566-20-7-252 | C |
| 1R12-557 | 2 | 2 | 9 | 9.3 | 5 | 566-24-3-067 | 566-20-7-252 | C |
| 1R12-558 | 2 | 2 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-252 | C |
| 1R12-559 | 2 | 2 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-252 | C |
| 1R12-560 | 2 | 2 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-253 | C |
| 1R12-561 | 2 | 2 | 9 | 9.3 | 4 | 566-24-3-067 | 566-20-7-253 | C |
| 1R12-562 | 2 | 1 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-251 | C |
| 1R12-563 | 1 | 2 | 9 | 9.3 | 4.5 | 566-24-3-067 | 566-20-7-252 | C |
| 1R12-567 | 3 | 1 | 9 | 9.8 | 6.7 | 566-24-3-038 | 566-20-7-235 | C |
| 1R12-568 | 3 | 1 | 9 | 9.8 | 6.7 | 566-24-3-066 | 566-20-7-235 | C |
| 1R12-571 | 2 | 1 | 9 | 9.8 | 6.5 | 566-24-3-067 | 566-20-7-238 | C |
| 1R12-580 | 2 | 1 | 10.3 | 10.6 | 9.5 | 566-24-3-117 | 566-20-7-299 | C |
| 1R12-584 | 2 | 4 | 9 | 10.1 | 7 | 566-24-3-038 | 566-20-7-158 | C |
| 1R12-586 | 2 | 1 | 9 | 9.8 | 10.6 | 566-24-3-038 | 566-20-7-237 | C |
| 1R12-603 | 2 | 1 | 9 | 10.63 | 8.6 | 566-24-3-108 | 566-20-7-241 | A |
| 1R12-615 | 2 | 1 | 9 | 10 | 6.7 | 566-24-3-097 | 566-20-7-236 | C |
| 1R12-620 | 2 | 1 | 9 | 9.8 | 6 | 566-24-3-076 | 566-20-7-239 | C |
| 1R12-621 | 2 | 4 | 9 | 9.8 | 9.5 | 566-24-3-159 | 566-20-7-159 | C |
| 1R12-622 | 2 | 1 | 9 | 10 | 6.7 | 566-24-3-097 | 566-20-7-236 | C |
| 1R12-631 | 2 | 2 | 9 | 10.12 | 8.1 | 566-24-3-120 | 566-20-7-079 | S |
| 1R12-636 | 2 | 5 | 9 | 9.8 | 7.6 | — | — | — |
| 1R12-647 | 2 | 1 | 9 | 10 | 5.3 | — | — | — |
| 1R12-647 | 2 | 4 | 9 | 9.9 | 9.5 | 566-24-3-090 | 566-20-7-159 | C |
| 1R12-669 | 3 | 1 | 9 | 9.3 | 7.5 | 566-24-3-038 | 566-20-7-053 | S |
Contact Person: Linda Lin
Tel: +8613924100039
