Payment & Shipping Terms:
|Material:||Rubber And Stainless Steel||Goodyear:||1B12-313|
|Warranty:||12 Months||Weight:||6.0 Kg|
|Other Name:||Crimp Air Suspension||Pressure Ability:||2-8 M Pa|
|Max OD:||335.3 MM||Air Fitting Size:||1/4 OS|

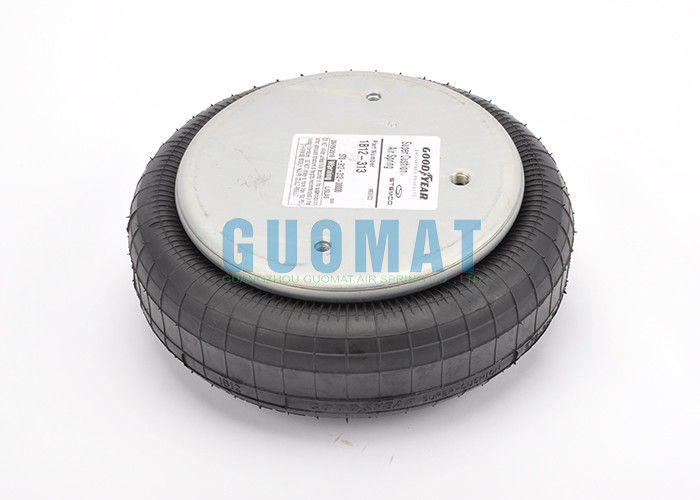

Original Goodyear 1B12-313 Single Industrial Suspension Air Spring Made In Mexico
OEM Original Manufacturer:
in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers.
The usual below kinds of Goodyear air spring we have
|Assembly Number||Max OD @100 PSIG (Inches)||Design Load Range (pounds)||Design Height Range (Inches)||Usable Stroke (Inches)||Min Comp Height (Inches)||Max Ext Height (Inches)||Bumper Included||Approximate Isolation Percent||Air Fitting Size (Inches)|
|For a Distributing Frequency Of:|
|435 CPM||870 CPM||1160 CPM||1750 CPM|
|1B12-301||13.2||1,350 - 8,800||3.0 - 5.0||4.6||2.6||7.2||YES||89||97||98||99||1/4 OS|
|1B12-304||13.2||1,350 - 8,800||3.0 - 5.0||4.9||2.3||7.2||NO||89||97||98||99||3/4 OS|
|1B12-305||13.2||1,350 - 8,800||3.0 - 5.0||4.6||2.6||7.2||YES||89||97||98||99||3/4 OS|
|1B12-313||13.2||1,350 - 8,800||3.0 - 5.0||4.9||2.3||7.2||NO||89||97||98||99||1/4 OS|
|Goodyear Original||OEM NO.||Bellows NO.|
Air suspension function and advantages
* Reduce the need for electrical and instrument maintenance.
* Reduce cab and physical damage.
* Reduces axle, gearbox and tire wear.
* Reduce downtime
* Extend the life of the trailer.
* Reduce driver fatigue.
For the owner of the operator, the air hangs ...
* Improve isolation under loading and unload conditions.
* Expand the type of transport, including electronics
The shipper needs an air suspension device.
* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.
The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of durability,
Longer warranty period.
* Requires greater axis offset.
Air springTrucks, trailers and buses
Super-Cushion® air spring for truck, trailer bus, and cab and seat spring protection
Goods, providing constant trailers and providing long-term, trouble-free service.
Super-Cushion® air springs provide new high capacity for your trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers and buses
The body is longer than the steel spring, because the vibration is smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you want to add
A shaft, Super-Cushion® air spring is suitable.
Super-Cushion® air springs are also used when used with leveling valves
No matter how the load is. This means that the clearance height remains the same,
And the trailer floor is flush with the loading dock floor for convenience
On the goods and under the goods.
For driver comfort, load buffering, and your truck, trailer, bus and
The cab and the seat spring specify the Goodyear engineering product Super Buffer Air
The drawing of Goodyear 1B12-313 and Parameter curve
