| Place of Origin: | GuangDong, China |
| Brand Name: | Contitech |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 200-16 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $189.9/pc-$199.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Natural Rubber | Warranty: | 12 Months Warranty |
|---|---|---|---|
| Package: | Brown Carton Box | Type: | Single Convoluted Type |
| Contitech No.: | FS 200-16 | Key Words: | Air Springs, Air Actuators And Vibration Isolators |
| Operating Temperature: | -76° F To 158 °F | Air Inlet: | 1/4 NPT |
| High Light: | FS 200-16 Convoluted Crimped Air Spring,Rubber Convoluted Crimped Air Spring |
||

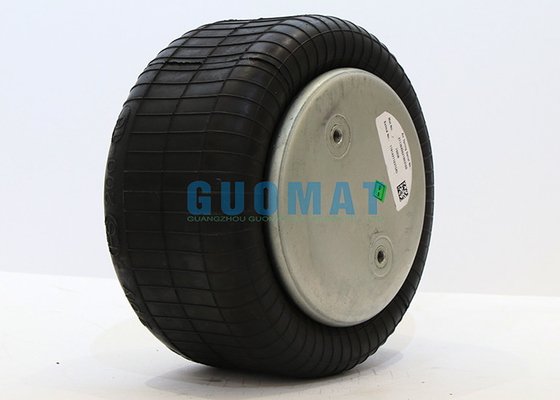

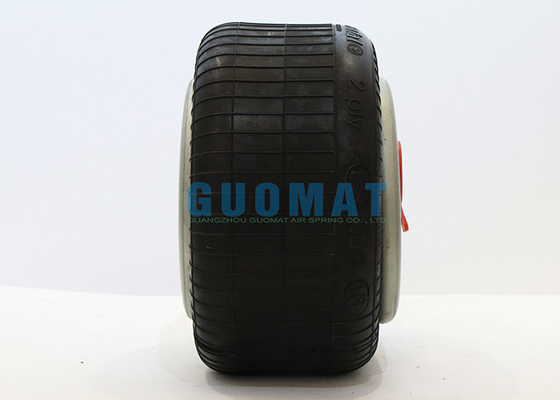

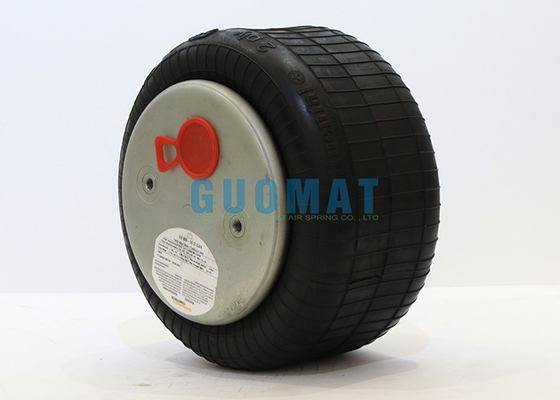

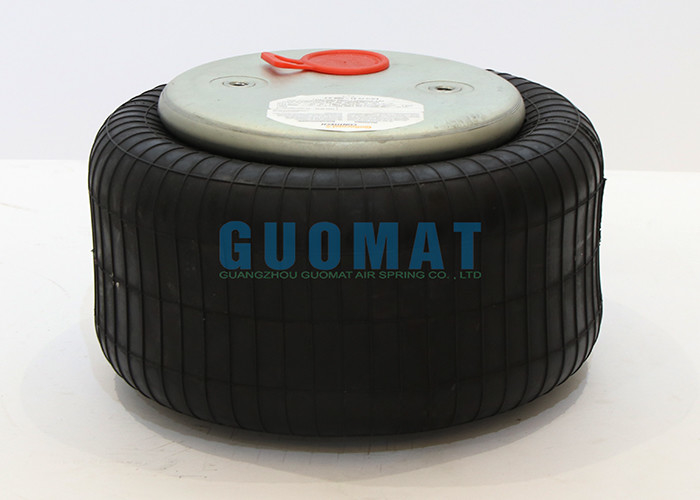

Convoluted Crimped Air Spring FS 200-16 CI 3/4 NPT Contitech Rubber Bellows
Product Description
The FS 200-16 ContiTech air spring is part of the ContiTech air actuator series and is designed for a wide range of pneumatic applications. It is reliable, easy to install, maintenance-free operation, durable and cost-effective.
ContiTech FS 200-16
ContiTech FS200-16
ContiTech FS 200-16 CI
ContiTech FS200-16 CI
ContiTech FS 200-16 CI 1/4NPT
ContiTech FS200-16 CI 1/4NPT
FS200-16 Features and Technical Parameters
Top cover diameter: 160.2mm / 6.31 in
Threaded hole specifications of the top cover: 2X3/8-16UNC-2B
Bottom cover diameter: 160.2mm / 6.31 in
Threaded hole specifications of the bottom cover: 2X3/8-16UNC-2B
Maximum outer diameter: 250mm / 9.8in
Design Range: 114mm-127mm / 4.5 in-5.0 in
|
1 |
Rubber must be operative between -22℉ (-30℃)& +158℉ (+70℃) |
|
2 |
Max.recommended pressure is(100p.s.i.) 690KPa 6.90 bars for air stroke use |
|
3 |
Minimum free standing height at 20 p.s.i.210mm (8.3 in.) |
|
4 |
Minimum height 56mm (2.2 in.) |
|
5 |
These dimensions are for reference and engineering use only and are not to be inspected |
Contitech Model Series C Air Spring
|
Single Convolution Bellows |
Double Convolution Bellows |
Triple Convolution Bellows |
|
FS 40-6 CI |
FD 40-10 CI |
FT 330-29 CI |
|
FS 50-5 CI |
FD 70-13 CI |
FT 430-32 CI |
|
FS 70-7 CI |
FD 110-15 CI |
FT 530-32CI |
|
FS 100-10 CI |
FD 120-17 CI |
FT 530-35 CI |
|
FS 120-9 CI |
FD 120-20 CI |
FT 960-34 CI |
|
FS 120-10 CI |
FD 200-19 CI |
FT 1330-35 CI |
|
FS 120-12 CI |
FD 200-22 CI |
|
|
FS 200-10 CI |
FD 200-25 CI |
|
|
FS 330-11 CI |
FD 330-22 CI |
|
|
FS 330-14 CI |
FD 330-30 CI |
|
|
FS 530-11 CI |
FD 530-22 CI |
|
|
FS 530-14 CI |
FD 530-30 CI |
|
|
FS 960-12 CI |
FD 960-22 CI |
|
|
FS 1330-11 CI |
FD 1330-25 CI |
|
FS 200-16 CI 3/4 NPT Contitech Rubber Air Spirng
