| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-240-4 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9/pc-$99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Color: | Black |
|---|---|---|---|
| Package: | Brown Carton Box | Sample: | Available |
| Yokohama: | S-240-4/S-240-4R | Design Height: | 206mm |
| Key Words: | Punch Air Spring | Warranty: | 1 Year |
| High Light: | Yokohama Punch Rubber Air Spring,Yokohama Punch Inflatable Rubber Air Spring,F-240-4 Rubber Air Spring |
||

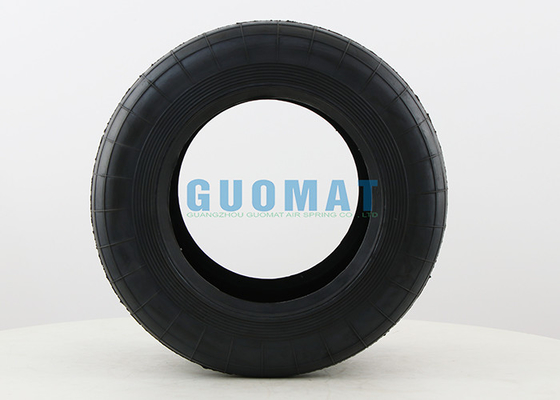

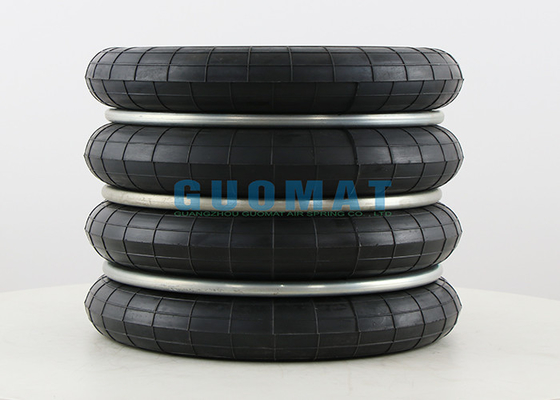

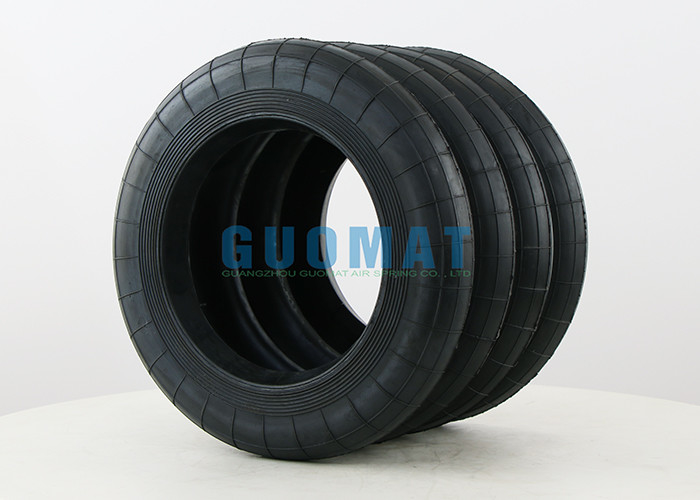

F-240-4 GUOMAT Rubber Air Spring Replace S-240-4R Yokohama Punch Inflatable Air Bag
Product Description
Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (cars, motorcycles, bicycles) hardware parts, etc. It has been widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.
F-240-4 Cross Reference
YOKOHAMA S-240-4
YOKOHAMA S 240 4
YOKOHAMA S2404
YOKOHAMA S-240-4R
YOKOHAMA S 240 4 R
YOKOHAMA S2404R
Detailed Technical Parameters
|
Height H (mm) |
Design Height (mm) |
206 |
|
Max Height (mm) |
316 |
|
|
Min Height (mm) |
111 |
|
|
Stroke |
Common Maximum Travel (mm) |
±80 |
|
Diameter |
Compression Max Outside Diameter (mm) |
300 |
|
Standard height, approximate value when internal pressure is 0.49Mpa |
Effective Area (cm2) |
450 |
|
Volume(L) |
10.1 |
|
|
Load(KN) |
22.2 |
|
|
Dynamic Spring Constant (n/mm) |
235 |
|
|
Natural Vibration Prequency (Hz) |
1.6 |
|
|
Pressure |
Mximum Internal Pressure (Mpa) |
0.88 |
|
Pressure |
Internal Pressure Failure (Mpa) |
2.9-3.9 |
We supply more than 1000 types of air springs, supply perfect solution for air suspension systems of automotive, car testing equipments, It is also the basic and important part of other industries, such as chassis dynamometer, air jacks, lifting jack, picking tire machines and so on.
Advantages of Air Springs
A. The air spring has nonlinear characteristics, and its characteristic line can be designed into an ideal curve as needed.
B. The stiffness of the air spring changes with the load, so the natural vibration frequency remains unchanged under any load, making the spring device have almost constant performance.
C. Good performance in absorbing high-frequency vibration and sound insulation. Guangzhou high-mat air spring, Continental air spring, Firestone air spring, high-mat air spring, Goodyear air spring
D. Through the height control valve, the working height of the air spring can be kept constant under any load, and the spring can also have different heights under the same load. Therefore, it is beneficial to adapt to various structural requirements. High Matt air bag, Firestone air bag, Goodyear air bag, Continental air bag
E. The stiffness of the air spring can be selected according to needs by changing the volume of the additional air chamber, and it can be selected very low.
F. The same air spring can bear axial and radial loads at the same time, and can also transmit torque. By adjusting the internal pressure, different load-bearing capacities can be obtained, so it can adapt to the needs of various loads. High Matt air bag, Firestone air bag, Goodyear air bag, Continental air bag
G. An orifice is provided between the air spring body and the additional air chamber, which can play a damping role. If the aperture is appropriately selected, a shock absorber may not be required.
We also Supply other Models of Punch Air Bag
| Reference No. | GUOMAT No. |
|
YOKOHAMA S-600-1R YOKOHAMA S-600-2R YOKOHAMA S-600-3R YOKOHAMA S-600-4R YOKOHAMA S-600-5R YOKOHAMA S-550-2R YOKOHAMA S-550-3R YOKOHAMA S-500-2R YOKOHAMA S-500-3R YOKOHAMA S-500-4R YOKOHAMA S-500-5R YOKOHAMA S-450-1R YOKOHAMA S-450-2R YOKOHAMA S-450-3R YOKOHAMA S-450-4R YOKOHAMA S-450-5R |
GUOMAT F-600-1 GUOMAT F-600-2 GUOMAT F-600-3 GUOMAT F-600-4 GUOMAT F-600-5 GUOMAT F-550-2 GUOMAT F-550-3 GUOMAT F-500-2 GUOMAT F-500-3 GUOMAT F-500-4 GUOMAT F-500-5 GUOMAT F-450-1 GUOMAT F-450-2 GUOMAT F-450-3 GUOMAT F-450-4 GUOMAT F-450-5 |
