| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-120-3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-$129.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Punch Air Spring | Material: | Rubber |
|---|---|---|---|
| Warranty: | 12 Months | Quality: | 100% Tested |
| YOKOHAMA: | S-120-3R/S-120-3 | Sample: | Available |
| Type: | Industrial Air Spring Bag | MOQ: | 1PC |
| High Light: | S-120-3R S-120-3 Rubber Air Spring,Industrial Rubber Air Spring |
||

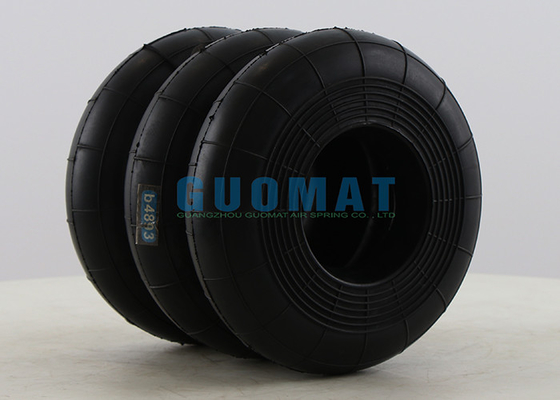

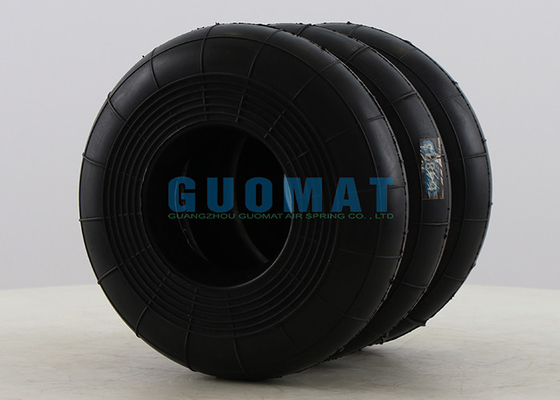

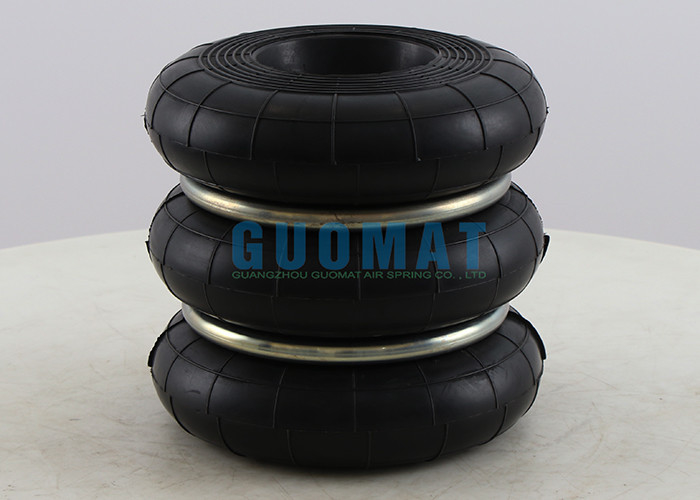

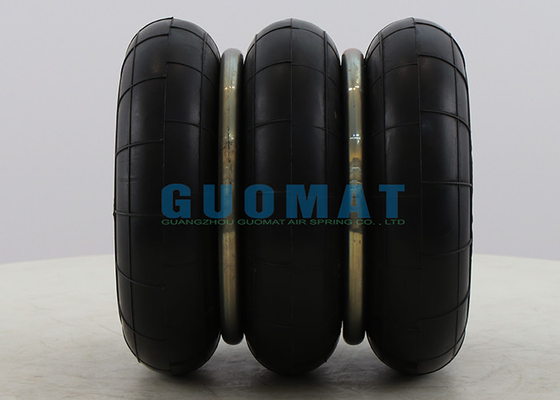

F-120-3 Air Spring Cushion S-120-3R S-120-3 Yokohama Industrial Vibrating Screen
Product Description
GUOMAT Part Number: F-120-3
YOKOHAMA Part Number: S-120-3R,S 120 3R,S-120-3,S 120 3,S120-3,S 120 3,S120-3R
F-120-3 GUOMAT Air Spring Technical Data
Design height: 98mm
maximum height: 148mm
minimum height: 53mm
Commonly used maximum stroke: ±35mm
Compression max outside diameter: 180mm
Maximum internal pressure: 0.88Mpa
Internal Pressure Failure: 2.9-3.9 Mpa
|
Standard height, approximate value when internal pressure is 0.49MPa |
||||
|
Effective Area |
Volume |
Load |
Dynamic Spring Constant |
Natural Vibration Frequency |
|
113 cm2 |
1.25L |
5.2KN |
157n/mm |
2.7Hz |
How Industrial Air Springs Work
Industrial air springs are a suspension element commonly used in industrial and commercial applications. They rely on air pressure supplied by a compressor to support a load in automotive or industrial machinery applications axially. The air spring typically takes the form of a flexible rubber body supported by two end plates that confine high-pressure compressed air to support the weight of a vehicle or machinery.
Industrial Impact
Automobile Industry: Air springs are most prominent in the automobile industry, where they are used in suspensions for vehicle brands like Lincoln, Cadillac, Hummer, and Jeep .
Other Industries: While the air spring has impacted many industries like oil, logging, construction, and manufacturing, it is also used in various other industrial applications due to its versatility and effectiveness.
