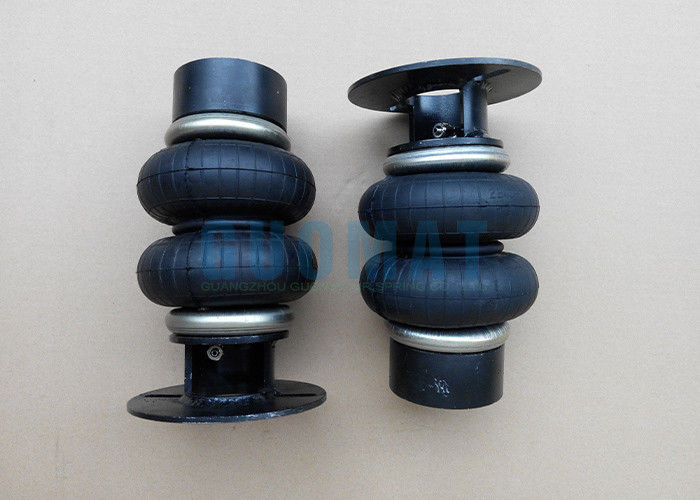

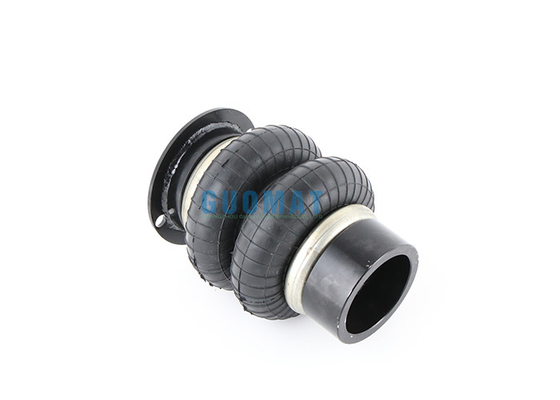

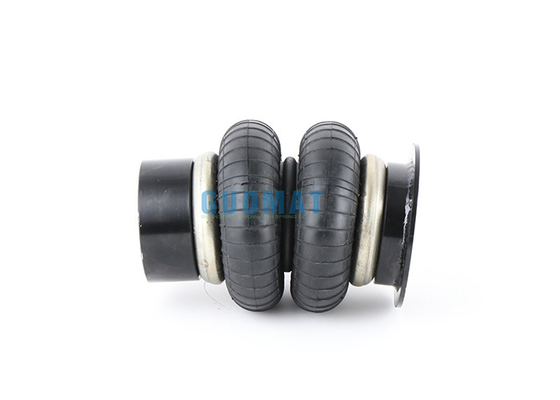

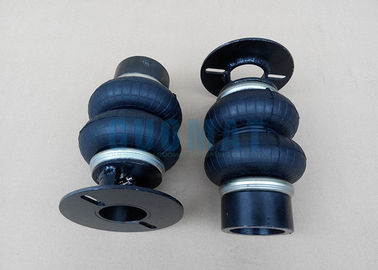

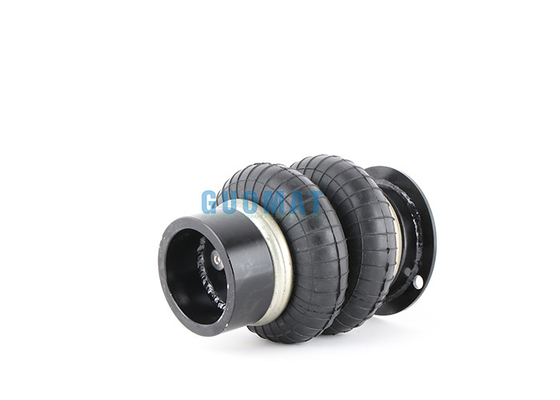

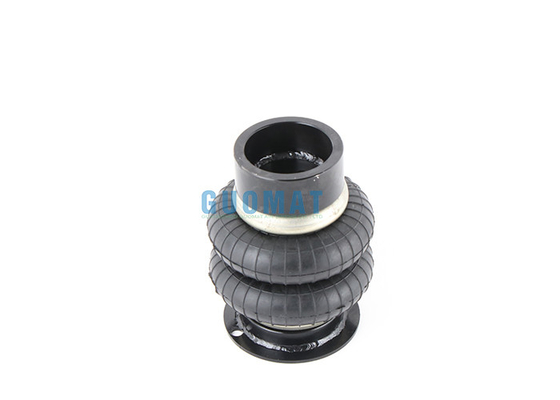

Modified Car Airbags FD40-10 G1/8 Air Inlet With Mounting Bracket Plate
GUOMAT No.:2B4060
FD 40-10
FD 40-10 CI
Contitech FD 40-10
Double Convolution Air Actuator
M8: max. 25 Nm
G1/8: max. 25 Nm
Type Order No. Rubber bellows only 72586 with crimped plates, G1/8 air inlet 10 mm excentrical 2682001000 with stainless steel crimped plates, G1/8 air inlet 0 mm excentrical 61755
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 20 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 20 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/8 Air inlet is combined with Nut
❸ Cover Plate
Top Cover Plate Diameter (Width): 90 mm
Bottom Cover Plate Diameter (Width): 90 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 125mm
Rubber Bellows Natural Height : 145 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
| GUOMAT NO. | Product designation | Load capacity at | Natural frequency at | Recommended operating height | Required installation diameter | ||
| 5 bar | 8 bar | 5 bar | 8 bar | ||||
| Double Convolution Air Spring | |||||||
| FD 40 10 | FD 40-10 | 1,95 | 3,2 | 2,7 | 2,7 | 160 | 160 |
| FD 70 13 | FD 70-13 | 3,1 | 5 | 2,5 | 2,5 | 175 | 180 |
| FD 110 15 | FD 110-15 | 5,6 | 9,2 | 2,2 | 2,1 | 175 | 215 |
| FD 120 17 | FD 120-17 | 6,5 | 10,6 | 2 | 2 | 190 | 230 |
| FD 120 20 | FD 120-20 | 7,8 | 12,7 | 1,8 | 1,7 | 205 | 235 |
| FD 138 18 | FD 138-18 | 6,9 | 11,2 | 2 | 2 | 200 | 245 |
| FD 200 19 | FD 200-19 | 9 | 14,5 | 1,9 | 1,9 | 210 | 265 |
| FD 200 22 | FD 200-22 | 10,3 | 16,5 | 1,7 | 1,6 | 220 | 265 |
| FD 200 25 | FD 200-25 | 10,2 | 16,5 | 1,7 | 1,7 | 254 | 275 |
| FD 210 22 | FD 210-22 | 11,6 | 19,4 | 1,8 | 1,7 | 220 | 300 |
| FD 330 22 | FD 330-22 | 16,7 | 27,6 | 1,8 | 1,7 | 240 | 340 |
| FD 412 18 | FD 412-18 | 18,3 | 30 | 1,8 | 1,8 | 220 | 350 |
| FD 530 22 | FD 530-22 | 25,8 | 42 | 1,8 | 1,7 | 250 | 400 |
| FD 530 30 | FD 530-30 | 29,3 | 48,2 | 1,6 | 1,5 | 260 | 415 |
| FD 530 35 | FD 530-35 | 31,6 | 51,2 | 1,5 | 1,4 | 285 | 420 |
| FD 960 22 | FD 960-22 | 45,6 | 71,5 | 1,6 | 1,6 | 240 | 490 |
| FD 1330 25 | FD 1330-25 | 65,3 | 103,9 | 1,6 | 1,5 | 240 | 570 |
| FD 1710 25 | FD 1710-25 | 86,6 | 136,6 | 1,6 | 1,5 | 240 | 620 |
| FD 2380 24 | FD 2380-24 | 114,9 | 186,1 | 1,6 | 1,5 | 240 | 710 |
| FD 2870 30 | FD 2870-30 | 138,7 | 217,6 | 1,5 | 1,4 | 265 | 760 |
| FD 5450 28 | FD 5450-28 | 260,8 | 415,3 | 1,4 | 1,3 | 280 | 1000 |
