300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses

China 300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses supplier
300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses supplier 300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses supplier 300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses supplier

Large Image :  300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: S-240-4 / S-200-3 / S-100-4 / S-90-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Stainless Steel Crimp, Rubber Yokohama: S-240-4 / S-200-3 / S-100-4 / S-90-3
GUOMAT: F-240-4 / F-200-3 / F-100-4 / F-90-3 Layer Number: 4 Convolutions,3 Convolutions,
Vibration Frequency: 1.8 Hz Maximum Internal Pressure: 0.69 M Pa
Net Weight: 7.5 KG And Others Packing Size: 30*30*20 Cm
Natural Width: 300 MM And And Others

Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 Fit For Knuckle Type Presses





S-400-3 / S-300-2 / S-100-2 / S-90-2 can fit for many kinds of Knuckle Type Presses Punch.



S-400-3 / S-300-2 / S-100-2 / S-90-2 air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. S-300-2 / S-100-2 / S-90-2 two curves contain two steel rings,The S-400-3 three curves contain two steel rings, and the fourth one contains three steel rings, and the fifth one contains four steel rings.





Detailed Parameter Table of S-400-3 / S-300-2 / S-100-2 / S-90-2:





GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-400-3 S-400-3 160 260 90 ±68 460
F-300-2 S-300-2 98 158 53 ±40 360
F-90-2 S-90-2 98 143 58 ±30 160



GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-400-3 S-400-3 1260 19.5 61.6 834 1.8 0.69 3.9-4.9
F-300-2 S-300-2 710 7.4 34.7 745 2.3 0.88 3.9-4.9
F-90-2 S-90-2 79 0.85 3.9 118 2.7 0.88 2.9-3.9
F-90-1 S-90-1 63.5 0.5 3.1 103 2.9 0.88 3.9-4.9



Description about S-400-3 / S-300-2 / S-100-2 / S-90-2 used in Knuckle Type Presses:



The knuckle type presses, with the elbow joint as the transmission mechanism, the sliding block is moved to the lower part (called the lower dead point), and it is suitable for cold forging. There is also an elbow - type punch that combines connecting rod and elbow.

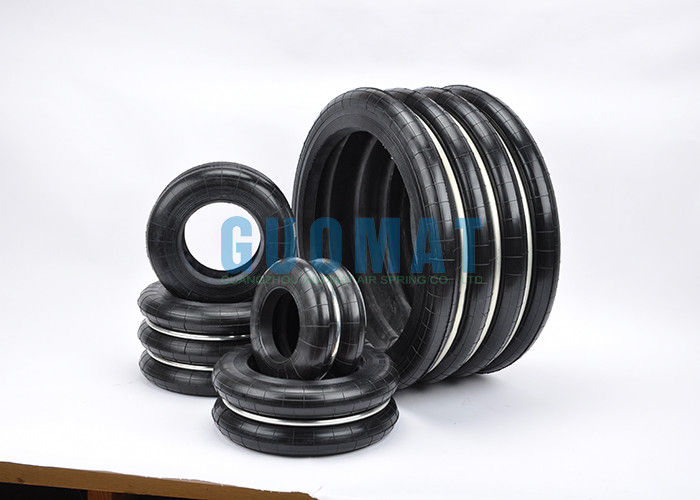

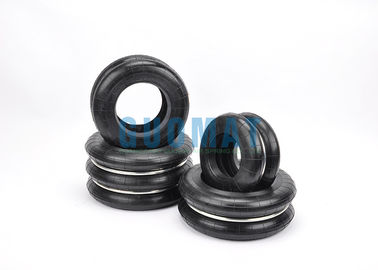

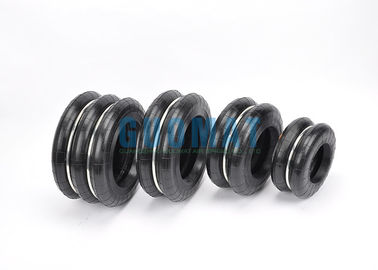

Product detail photos Of S-400-3 / S-300-2 / S-100-2 / S-90-2



300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses300 MM Width Rubber Air Spring S-400-3 / S-300-2 / S-100-2 / S-90-2 For Knuckle Type Presses
