GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine

China GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine supplier
GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine supplier GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine supplier GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine supplier GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine supplier

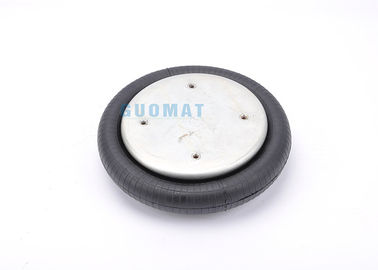

Large Image :  GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B6171

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel GUOMAT: 1B6171
Warranty: One Year Weight: 5.0 Kg
Other Names: Air Vibration Actuation Pressure Ability: 0.2-0.8 M Pa
Rubber Bellows: 1B330 Air Inlet: 1/4 N P.T.F.

Air Spring Assembly GUOMAT 1B6171 Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine





GUOMAT 1B6171 Specifications and Technical Data



Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº



Firestone Bellows Number: 19

GUOMAT NO.:1B6071

Cross NO.:1B5071



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC

Screw Center Distance of Top Cover Plate :157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

Distance Gas Hole Between Nut 73 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F.



Cover Plate

Top Cover Plate Diameter (Width): 9.00 inches / 231mm

Bottom Cover Plate Diameter (Width): 9.00 inches / 231mm



Rubber Bellows

Rubber Bellows Natural Diameter 300 mm

Rubber Bellows Max Diameter : 325 mm

Rubber Bellows Natural Height : 110 mm

The Working Stroke : MAX 160 mm to MIN 55 mm

Compressed Height: 2.12 inches / 105 mm​

Compressed Height: 2.12



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Without Girdle Hoop





The usal kinds of Single Convolution Air Actuator



Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
1B4060 FS 40-6 50 160 60
1B5050 FS 50-5 51 165 44
1B7070 FS 70-7 51 180 64
1B10010 FS 100-10 51 225 94
1B1209 FS 120-9 50 230 85
1B1210 FS 120-10 51 245 99
1B12012 FS 120-12 51 250 119
1B20010 FS 200-10 51 265 89
1B33011 FS 330-11 51 340 99
1B33014 FS 330-14 51 360 129
1B53011 FS 530-11 51 400 124
1B53014 FS 530-14 51 420 134
1B96012 FS 960-12 63 480 117
1B133011 FS 1330-11 63 570 107





Pictures show the information includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer MachineGUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer MachineGUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer MachineGUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine
