95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808

China 95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808 supplier
95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808 supplier 95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808 supplier 95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808 supplier 95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808 supplier

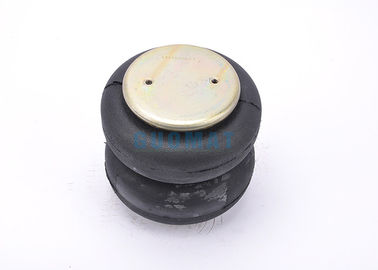

Large Image :  95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6276

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-M58-7679
Gas Hole: 1/4NPTF Screw Tooth: 2pcsXM10X1.5
Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 95-325 Mm

Air Spring Assembly Firestone W01-M58-7679 For SchmitzTrailer 016808





GUOMAT 2B6276 Specifications and Technical Data



Firestone Part Number: W01-M58-7679 / W01M587679 / W01 M58 7679

Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Part Number: 2B9-269

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Part Number: 4426

Bellows NO.: 20-2

Order Number: W01-M58-7679

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº





2B6276 Cross others OEM



OEM References Numbers References Numbers

Firestone :W01-M58-7679

Firestone :20C2

SchmitzTrailer : 016808
Dunlop : S0 9280 Granning: 15670
Goodyear : 2B9-269 2B5276
Gart: T291/2B
R.O.R/Meritor : 21221356
Weweler : US 07394F









Description convolution/ convoluted air spring



The winding air spring is the bellows GUOMAT air spring. The bellows air spring has one, two or three loops in the flexible member. The dual-compound air bags are commonly used as lift springs or shafts and trailers for air springs, as well as for industrial and commercial applications and devices for actuators or insulators. The specifications of your 2b9-269 will vary, but the double fold's GUOMAT bag can be found in the crimp design and the sleeve bellows. They will provide similar features and functions, but the sleeve type of the maintainer and the maintainer and the external interchangeable parts weave the final permanent connection between the rings.





Compared with the traditional coil springs and leaf springs, air suspension springs have the following characteristics:



Reduce energy consumption: air suspension intelligent balance system, according to the road conditions, weather, intelligent adjustment of body balance, to the maximum extent possible to ensure the smooth operation of the vehicle, saving energy consumption, such as: When the vehicle driving on the highway, Air suspension system based on the characteristics of high speed, straight road and other characteristics, a comprehensive analysis, intelligent adjustment of body height, so that the overall body to reduce the windward resistance of vehicles to achieve the purpose of saving fuel consumption.





Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]



95 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 01680895 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 01680895 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 01680895 - 325 Stroke mm Air Spring Assembly Firestone W01-M58-7679 For Schmitz Trailer 016808
