| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6293 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Iron Plate , Rubber Bellows | GUOMAT: | 2B6293 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 1⁄2-20UNF |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 95-325 Mm |
| Firestone: | W01-M58-6944 | ||
| High Light: | air helper springs,air suspension parts |
||

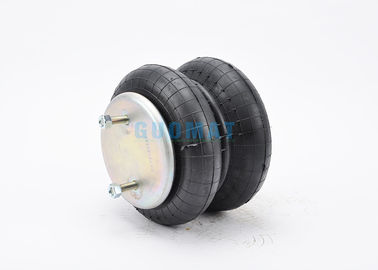

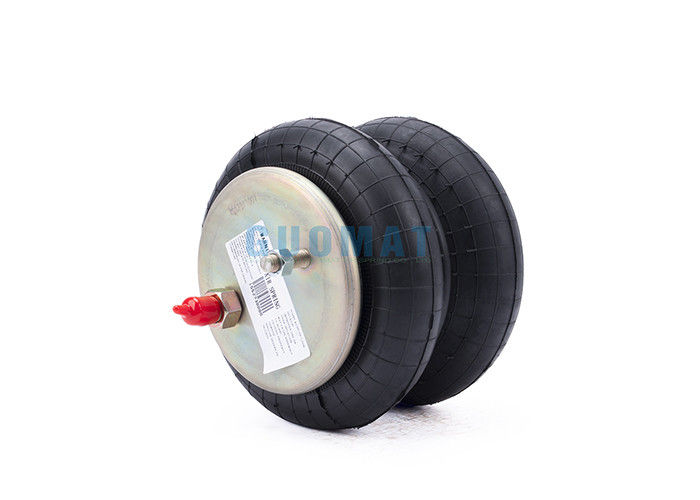

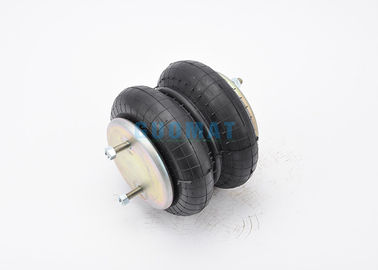

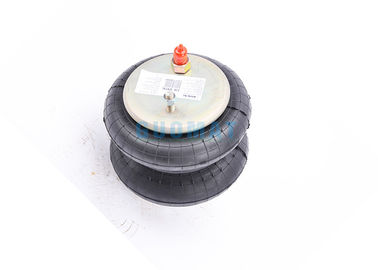

Goodyear 2B9-352 Suspension Air Spring Refer FD 220-25 And 2B9-352/246 For Leland Sc2124
GUOMAT 2B6293 Specifications and Technical Data
Compressed Height: 3.12 inches
The Working Stroke : MAX 325 mm to MIN 95 mm
Firestone Bellows Number: 20-2
Bellows NO.: 20-2
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 PiecesX1⁄2-20UNF
Screw Center Distance of Top Cover Plate :86 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesX1⁄2-20UNF
Screw Center Distance of Bottom Cover Plate :3.5 inches / 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8NPTF
❸ Cover Plate
Top Cover Plate Diameter (Width): 6.4 inches / 160 mm
Bottom Cover Plate Diameter (Width): 6.4 inches / 160 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 232.5mm
Rubber Bellows Natural Height : 235 mm
Working Stroke:MIN 95 To MAX 325MM
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop
Goodyear: 2B6293 Cross others OEM
| OEM References Numbers | OEM References Numbers |
| 2B5293 | Goodyear :2B9 246 |
| Firestone: W01-M58-6944 | Goodyear :2B9246 |
| Firestone: W01 M58 6944 | Goodyear : 578-92-3-206 |
| Firestone: W01M586944 | Goodyear : 578923206 |
| Firestone: 20-2 | Goodyear : 578 92 3 206 |
| Contitech : FD 220-25 454 | Triangle: 6332/4454 |
| Contitech : FD 22025 454 | Histeer: 10307 |
| Contitech : FD220-25 454 | Suspensions Inc. |
| Contitech :161337 | Arvin meritor: 200118 |
| Goodyear : 2B9-352 | Leland: Sc2124 |
| Goodyear : 2B9 352 | Watson&Chalin:AS0115G |
| Goodyear : 2B9352 | Tuthill technology : 6390 |
| Goodyear :2B9-246 | Lamges |
Compared with the traditional coil springs and leaf springs, air suspension springs have the following characteristics:
Reduce the vehicle failure rate: new energy vehicles need to carry a car battery and other energy supply system, the design of the vehicle will be more biased in the most sophisticated and complex direction, the air spring can achieve the vehicle from no-load to full load of constant low frequency, reduce vehicle vibration, Maintain auto parts, reduce vehicle malfunction and improve vehicle attendance.
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
