| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6330A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | GUOMAT: | 2B6330A |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 7.0kg |
| Other Name: | Air Suspension Parts | Pressure Ability: | 0.2-0.8 M Pa |
| Design Height: | 9.5in | Gas Hole / Air Inlet: | G1/2 |
| High Light: | convoluted air spring,air helper springs |
||

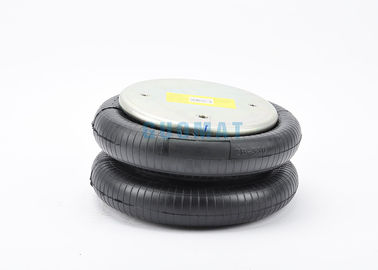

Industrial Air Spring GUOMAT 2B6330A With G1/2 Air inlet and 2pcs M10 Blind Nuts
Technical Parameters of 2B6330A
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesXM10X1.5
Screw Center Distance of Top Cover Plate :157 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesXM10X1.5
Screw Center Distance of Bottom Cover Plate :157 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 231mm
Bottom Cover Plate Diameter (Width): 231mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 325mm
Working Stroke:MIN 81 To MAX 305MM
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114301 | AIRKRAFT 113333 | AIRKRAFT 113491 |
| FIRESTONE FLEX 22 | CONTITECH FD 330-22 313 | FIRESTONE W01-358-7184 |
| FIRESTONE W01 358 0226 | FIRESTONE W01 358 7400 | GOODYEAR 2B12-429 |
| 95.0037 | GOODYEAR 2B12-309 | GOODYEAR FLEX 578-92-3-309 |
| 95.0082 | GOODYEAR FLEX 578-92-3-309 | AIRKRAFT 113492 |
| GOODYEAR 556 2 3 8210 | TAURUS KF 222-7400 | FIRESTONE W01-358-7185 |
| PHOENIX 2B 22R | AIRKRAFT 113490 | GOODYEAR 2B12- 318 |
| PIRELLI T22 88544 | CONTITECH FD 330-22 363 | GOODYEAR FLEX 578-92-3-309 |
| FIRESTONE W01-358-7180 | ||
| GOODYEAR 2B12 425 | ||
| GOODYEAR FLEX 578-92-3-309 |
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
Compared with the traditional coil springs and leaf springs, air suspension springs have the following characteristics:
Light weight: In the current more mainstream new energy sources, the power is the main direction of the current study, but the power itself there is insufficient battery power, slow charging and other issues, currently able to travel the furthest pure electric vehicle BUDD-e in the limit state Under the driving 533km, but if it is in full load or load state can travel mileage remains to be verified.
Plate springs and coil springs are pure steel structure, depending on the vehicle models, weighing tens to several hundred catties, and air springs because of its special structure, the weight loss in the car there is a big advantage, Reduce the weight can be converted into life mileage.
