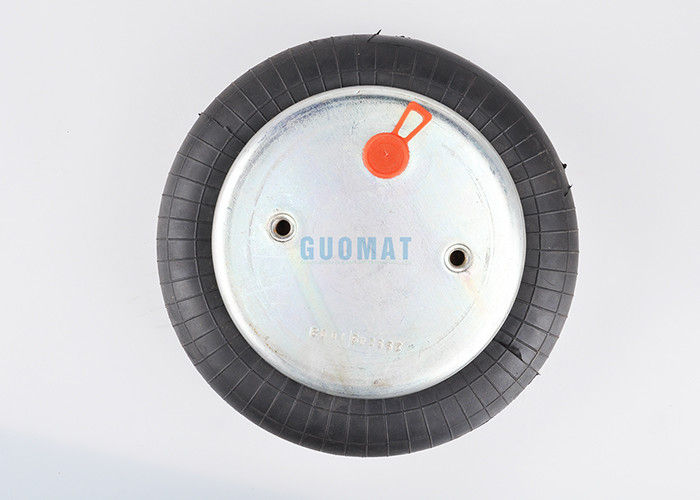

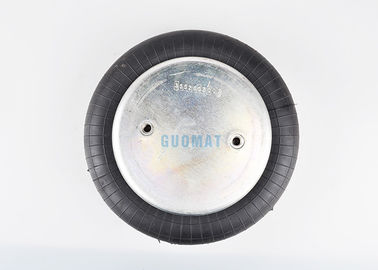

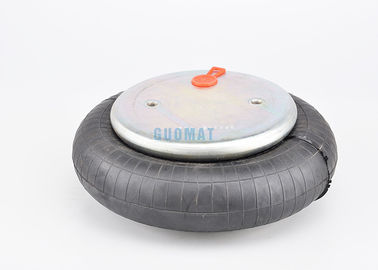

Continental Contitech FS 200-10 CI Air Bellows As An Isolation Buffer
Product Description

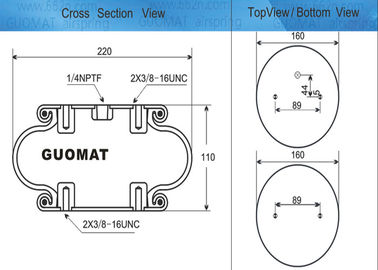

Technical Data
GUOMAT:1B200-10
OEM Original Equipment Manufacturer:FS 200-10 CI
PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
Force F [lbf] | |||||||
Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
H 4.50 in. | 939 | 1440 | 1920 | 2430 | 2950 | 120 | |
H 4.00 in. | 1120 | 1690 | 2260 | 2850 | 3430 | 110 | |
H 3.50 in. | 1250 | 1880 | 2530 | 3170 | 3850 | 96 | |
H 3.00 in. | 1370 | 2050 | 2760 | 3460 | 4170 | 83 | |
H 2.50 in. | 1450 | 2170 | 2930 | 3640 | 4410 | 68 |
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
Force (load) F [lbf] | 981 | 1,530 | 2,040 | 2,570 | 3,090 | 124 | |
Spring rate c [lbf/in] | 701 | 1,000 | 1,290 | 1,560 | 1,870 | 124 | |
Natural Frequency f0 [Hz] | 2.7 | 2.7 | 2.6 | 2.5 | 2.5 | 124 | |
Design height H: recommended 4.53 inch, minimum 3.94 inch |
PURCHASE ORDER DATA
Type | Air Inlet | Order No. | |
Rubber bellows only | – |
62828 |
|
with crimped plates |
1/4 NPT 0 in. excentrical |
75229 |
|
with crimped plates | – |
75248 |
SERVICE INSTRUCTIONS
Thread | max. Torque | |
---|---|---|
2X3/8-16UNC | 20 lbf ft / 2.26N.M | |
1/4NPT | 20 lbf ft / 2.26N.M |
Features:
1,It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.
2, It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.
3, This air spring is simple in structure and easy to install and disassemble.
