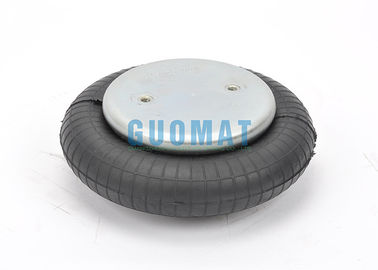

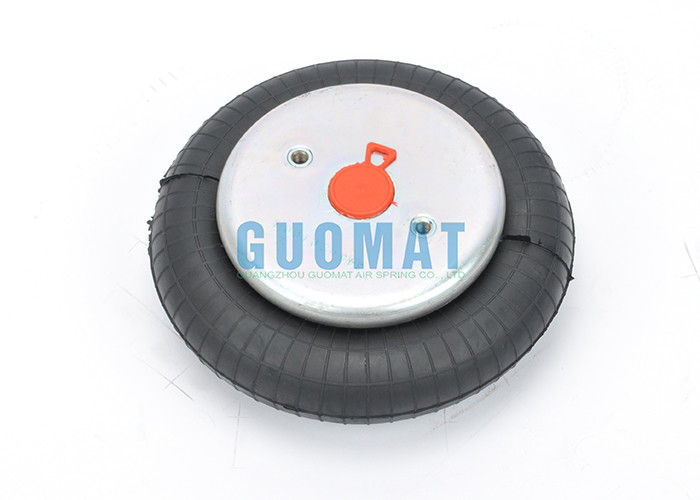

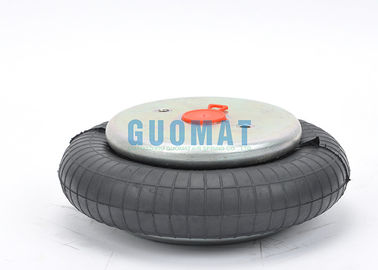

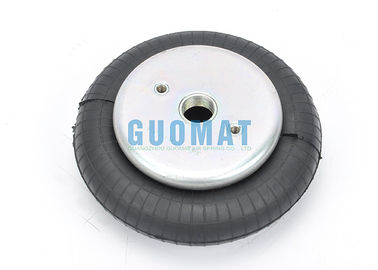

Continental Contitech FS 120-9 CI Refer To GUOMAT1B120-9 Industrial Air Spring Reduce Noise
Product Description
Technical Data
GUOMAT:1B120-9
OEM Original Equipment Manufacturer:FS 120-9 CI
AIR INLET 3/4 NPT:
Firestone : W01-M58-6165
Contitech :: FS 120-9
Dunlop(FR) : 8’’x1 S08101
Bosch : 822419003
Festo : EB-215-80
Norgren : PM/31081(8x1)
Weforma : WBE 300-E1
Airtech : 140293
Airtech : 111003/1B-190FB :
Megatech :1S120-9 3/4 M8
AIR INLET 1/4 NPT:
Firestone : W01-M58-6166
Contitech : FS 120-9
Dunlop(FR) : 8’’x1 S08100
Bosch : 822419008
Weforma : WBE 300-E2
PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 | |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 | |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 | |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | |||||||
PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| with crimped plates |
3/4 NPT 0 in. excentrical |
75349 | |
| with crimped plates |
1/4 NPT 0 in. excentrical |
75360 | |
SERVICE INSTRUCTIONS
| Thread | max. Torque | |
| 3/8-16 UNC | 20 lbf ft | |
| 1/4 NPT | 20 lbf ft | |
| 3/4 NPT | 40 lbf ft | |
