    Detailed Product Description
    Material: Rubber, Iron Contitech: FS 120-10
    Warranty: 12 Months Weight: 2.4 Kg
    Other Name: Air Actuator For Machine Pressure Ability: 0.2-0.8 M Pa
    Screw: 2X3/8-16UNC Air Inlet: 1/4 NPT
    Firestone: W01-358-7564
    High Light:

    convoluted air spring

    ,

    air helper springs

    GUOMAT 1B8X4 Refer To Firestone W01-358-7564 And Goodyear 1B8-550 For Machine





    Product Description of 1B8X4 Refer To W01-358-7564

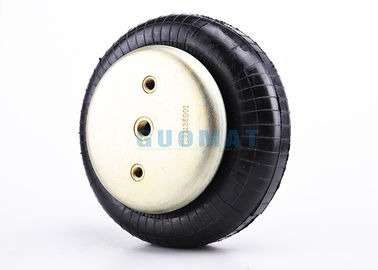

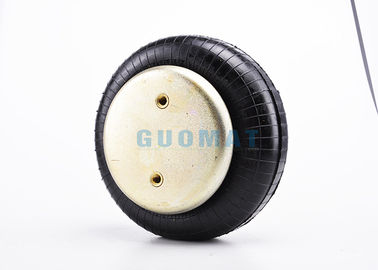

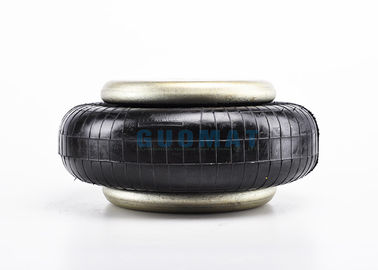

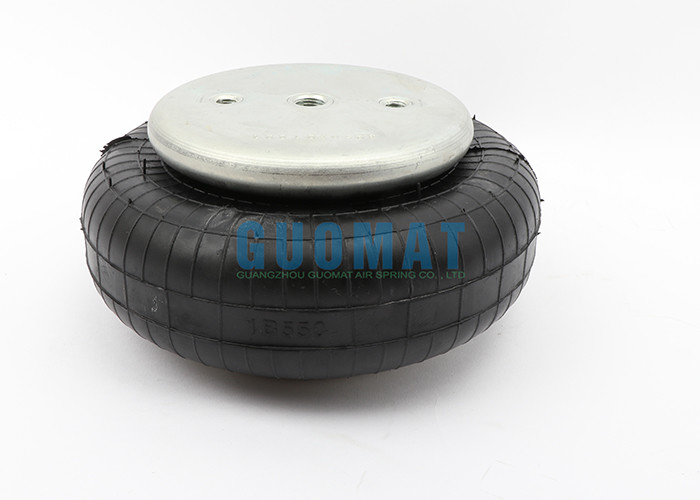

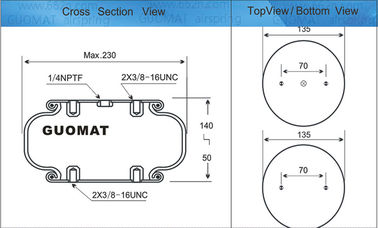

    Top Cover Plate Diameter: 135mm

    Bottom Piston Number: no

    Bottom Cover Plate Diameter: 135mm

    Screw Center Distance : 70mm

    Distance Gas Hole Between Nut: 35 mm



    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Rubber Bellows MAX Diameter(Maximum Diameter): 230 mm

    Rubber Bellows Natural Diameter 210 mm

    The Working Stroke : MAX 140 mm to MIN 50 mm

    Compressed Height: 50 mm



    Gas Hole / Air inlet : 1/4NPTF





    Types of [Other types] Air spring Height adjustment handle no
    Width W (mm) 221 Load range (kN) 12.50116.000
    Allowable load (kN) 13.1 Thread length L1 (mm) --
    Height of main body h (mm) 134 Nominal thread M (mm) 10
    Property Standard/Shockproof performance Installation method 2
    Air supply port 1/4 With or without bumpers no
    RoHS directive 10 - --





    Technical Data of 1B8X4 Refer To W01-358-7564

    • Min. pressure – 0 psi
    • Return force to min. height – <45LBF/200N
    • Overall Weight – 2.4KG
    • Min. Design Height – 50MM
    • Inst.Space Required – 140MM
    • Max. Stroke – 90MM



    GUOMAT:1B8X4



    OEM Original Equipment Manufacturer:FS 120-10 CI



    AIR INLET 1/4 NPT:

    Firestone : W01-358-7564

    Goodyear:1B8-550

    Contitech:FS120-10





    Description of 1B8X4 Refer To W01-358-7564
    Assembly Order No.
    Style 116 Two Ply Bellows
    Blind nuts, 1/4 NPT:W01-358-7564;W01 358 7564;W013587564
    Blind nuts, 3/4 NPT:W01-358-7561;W01 358 7561;W013587561
    Countersunk steel bead rings,19/4 bolts, nuts, washers:W01-358-7568;W01 358 7568;W013587568
    Blind nuts with installed 1/4 tank valve W01-A72-7518;W01 A72 7518;W01A727518
    Rubber bellows only:W01-358-0133;W01 358 0133;W013580133

    Style 117 High Bellows
    Blind nuts, 1/4 NPT:W01-358-7600;W01 358 7600;W013587600
    Blind nuts, 3/4 NPT:W01-358-7602;W01 358 7602;W013587602
    Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:W01-358-7606;W01 358 7606;W013587606





    1B8X4 Refer To W01-358-7564 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES



    Force F [lbf]
    Pressure p [psi] 40 60 80 100 Vol. V [in.³]
    H 4.50 in./114.3MM 728 1130 1570 1970 110
    H 4.00 in./101.6MM 905 1400 1940 2390 100
    H 3.50 in./88.9MM 1050 1610 2240 2740 90
    H 3.00 in./76.2MM 1170 1770 2450 3020 75
    H 2.50 in./63.5MM 1270 1900 2630 3260 57



    VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS



    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    Force (load) F [lbf] 801 1,240 1,700 2,130 2,530 110
    Spring rate c [lbf/in] 709 949 1,190 1,430 1,670 110
    Natural Frequency f0 [Hz] 2.9 2.8 2.7 2.6 2.6 110
    Design height H: recommended 4.33 inch, minimum 3.54 inch





    PURCHASE ORDER DATA



    Type Air Inlet Order No.

    with crimped plates

    1/4 NPT

    0 in. excentrical





    GUOMAT 1B8X4 Refer To Firestone W01-358-7564 And Goodyear 1B8-550 For Machine 0GUOMAT 1B8X4 Refer To Firestone W01-358-7564 And Goodyear 1B8-550 For Machine 1



    GUOMAT 1B8X4 Refer To Firestone W01-358-7564 And Goodyear 1B8-550 For Machine 2



    57991256700090 20810735 Y C 1B8-560 C 1B8-560
    57991256800091 20810607 Y P 1B8-560 P 1B8-560
    57991256900091 20811403 Y P 1B8-550 P 1B8-550
    57991257000090 20811604 Y C 1B8-562 C 1B8-562
    57991257100090 20811605 Y C 1B8-564 C 1B8-564
    57991257200090 20811606 Y C 1B8-850 C 1B8-850
    57991262700090 20806174 Y C 1B8-550 C 1B8-550
    1B5-800 20469101 N 1B5-800 1B5-800
    57991280000019 20095537 Y ENIDINE YI-1B5-800 ENIDINE YI-1B5-800
    57991280100000 20607917 Y GOODYEAR 1B5-801 GOODYEAR 1B5-801
    57991280100019 20095538 Y ENIDINE YI-1B5-801 ENIDINE YI-1B5-801
    1B5-810 20254245 N 1B5-810 1B5-810
    57991281000019 20095539 Y ENIDINE YI-1B5-810 ENIDINE YI-1B5-810
    57991282000019 20095540 Y ENIDINE YI-1B5-820 ENIDINE YI-1B5-820
    57991282100019 20224307 Y ENIDINE YI-1B5-821 ENIDINE YI-1B5-821
    57991283100019 20095541 Y ENIDINE YI-1B6-831 ENIDINE YI-1B6-831
    1B6-833 20263189 N 1B6-833 1B6-833
    57991283300019 20095542 Y ENIDINE YI-1B6-833 ENIDINE YI-1B6-833
    57991283400090 20806000 Y C 1B6-833 C 1B6-833
    1B6-835 20488587 N 1B6-835 1B6-835
    57991283500019 20117074 Y ENIDINE YI-1B6-835 ENIDINE YI-1B6-835
    1B7-840 20680822 N 1B7-840 1B7-840
    57991284000019 20095543 Y ENIDINE YI-1B7-840 ENIDINE YI-1B7-840
    57991285000000 20384830 Y 1B8-850 1B8-850
    57991285000019 20095544 Y ENIDINE YI-1B8-850 ENIDINE YI-1B8-850
    57991286000019 20117076 Y ENIDINE YI-1B8-860 ENIDINE YI-1B8-860
