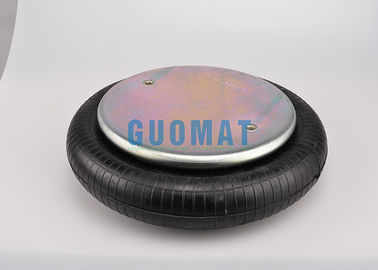

1B5073 Bellow No.1B330 Industrial Air Spring Refer To Contitech : FS 330-14
Specifications and Technical Data
Contitech Part Number:FS330-14／FS 330 14／FS 33014
Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Compressed Height: 2.12
Top Cover Plate Diameter: 9.00 inches / 231mm
Bottom Piston Number: 3212 or 3183
Bottom Cover Plate Diameter: 9.00 inches / 231mm
Screw Center Distance : 157.5 mm
Distance Gas Hole Between Nut 66 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
Rubber Bellows Natural Diameter 300 mm
The Working Stroke : MAX 160 mm to MIN 55 mm
Compressed Height: 2.12 inches / 105 mm
Gas Hole / Air inlet : G1
OEM Original Equipment Manufacturer:
| GUOMAT |
1B5073 |
| contitech |
FS330-14 |
| |
|
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. |
Contitech NO. |
Min. Design height |
Installation Space Required |
Max. Stroke |
| 1B4060 |
FS 40-6 |
50 |
160 |
60 |
| 1B5050 |
FS 50-5 |
51 |
165 |
44 |
| 1B7070 |
FS 70-7 |
51 |
180 |
64 |
| 1B10010 |
FS 100-10 |
51 |
225 |
94 |
| 1B1209 |
FS 120-9 |
50 |
230 |
85 |
| 1B1210 |
FS 120-10 |
51 |
245 |
99 |
| 1B12012 |
FS 120-12 |
51 |
250 |
119 |
| 1B20010 |
FS 200-10 |
51 |
265 |
89 |
| 1B33011 |
FS 330-11 |
51 |
340 |
99 |
| 1B33014 |
FS 330-14 |
51 |
360 |
129 |
| 1B53011 |
FS 530-11 |
51 |
400 |
124 |
| 1B53014 |
FS 530-14 |
51 |
420 |
134 |
| 1B96012 |
FS 960-12 |
63 |
480 |
117 |
| 1B133011 |
FS 1330-11 |
63 |
570 |
107 |
