| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5070 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Contitech OEM: | FS 330-11 647 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Air Actuation | Pressure Ability: | 0.2-0.8 M Pa |
| Firestone: | W01-358-6994 | ||
| High Light: | air helper springs,air suspension parts |
||
1B5070 To Firestone W01-358-6994 Contitech FS 330-11 647 Tiangle 6374 / 4467

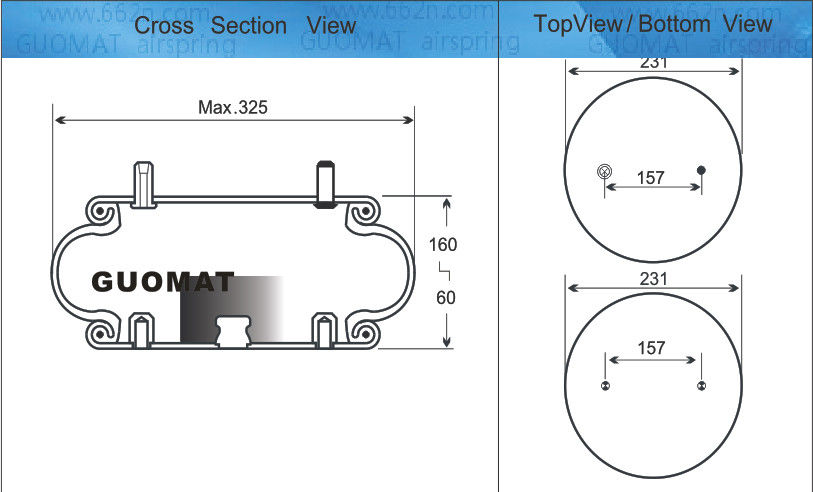

Specifications and Technical Data
Contitech Part Number:FS 330-11 647 / FS330-11 647 / FS33011 647
Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Compressed Height: 2.12
Top Cover Plate Diameter: 9.00 inches / 231mm
Bottom Cover Plate Diameter: 9.00 inches / 231mm
Screw Center Distance : 157 mm
Distance Gas Hole Between Nut 66 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
Rubber Bellows Natural Diameter 300 mm
The Working Stroke : MAX 160 mm to MIN 60 mm
Compressed Height: 2.12 inches / 105 mm
Gas Hole / Air inlet : 1/4 NPT
Compressed height: 2.70 inches
Top plate number: 3235
Top plate width: 9.00 inches
Piston No.: 3183
Piston width: 9.00 inches
Firestone bellows number: 19
Triangle part number: 4467
Number of triangular bellows: 6374
Note: Texas capabilities
Manufacturer Part Number: W01-358-6994
OEM Original Equipment Manufacturer:
|
GUOMAT
|
1B5070 |
|
contitech
|
FS330-14 |
| Firestone |
W01-358-6994 W01 358 6994 W013586994 |
Tiangle 6374
Tiangle 4467
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
| 1B33014 | FS 330-14 | 51 | 360 | 129 |
| 1B53011 | FS 530-11 | 51 | 400 | 124 |
| 1B53014 | FS 530-14 | 51 | 420 | 134 |
| 1B96012 | FS 960-12 | 63 | 480 | 117 |
| 1B133011 | FS 1330-11 | 63 | 570 | 107 |
