Goodyear 1B5 579-913-500 GUOMAT NO. 1B5101 Industrial Air Spring For Air Lift 58218

Goodyear 1B5 579-913-500 GUOMAT NO. 1B5101 Industrial Air Spring For Air Lift 58218

  • Goodyear 1B5 579-913-500 GUOMAT NO. 1B5101 Industrial Air Spring For Air Lift 58218
Goodyear 1B5 579-913-500 GUOMAT NO. 1B5101 Industrial Air Spring For Air Lift 58218
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B5101
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel GUOMAT: 1B5101
Warranty: 1 Year Weight: 2.0 Kg
Other Names: Air Lift Spring Shock Pressure Ability: 0.2-0.8 M Pa
Goodyear: 1B5 579-913-500
Highlight:

convoluted air spring

,

air helper springs

Goodyear 1B5 579-913-500 GUOMAT NO. 1B5101 Fits For Air Lift 58218 Air Spring​

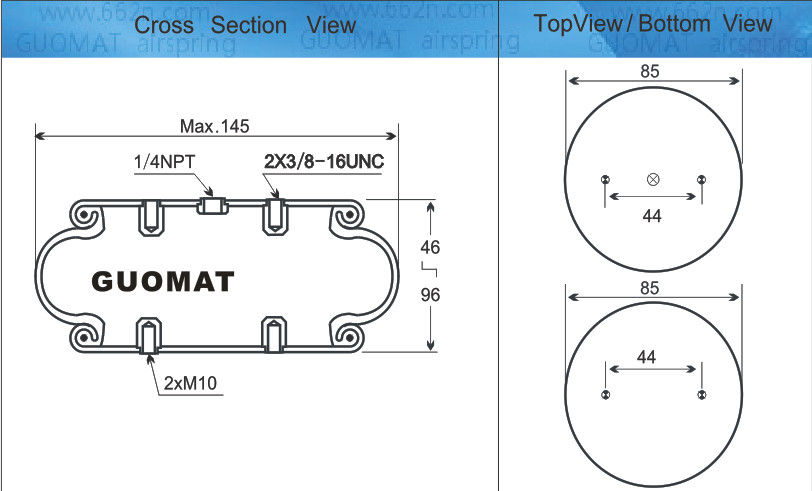

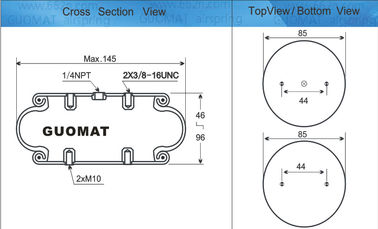

Specifications and Technical Data



GUOMAT Part Number:1B5101

Goodyear: 1B5 579-913-500

Air Lift: 58218

  • Min. pressure – 0 psi
  • Return force to min. height – <45LBF/200N
  • Overall Weight – 2 kg
  • Min. Design Height – 96MM
  • Inst.Space Required – 160MM
  • Max. Stroke – 50MM
  • Top Cover Plate Diameter 85mm
  • Bottom Cover Plate Diameter 85 mm
  • Screw Center Distance 44 mm
  • Distance Gas Hole Between Nut 22 mm
  • Gas Hole 1/4NPT
  • Screw (Nut) Tooth 2pcsX3/8-16UNC







Tag:

air helper springs,

air suspension parts,

convoluted air spring
