| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5021 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 1B5021 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Air Spring Bags | Pressure Ability: | 0.2-0.8 M Pa |
| Bellow No.: | 1B 7-540 | ||
| High Light: | convoluted air spring,air suspension parts |
||

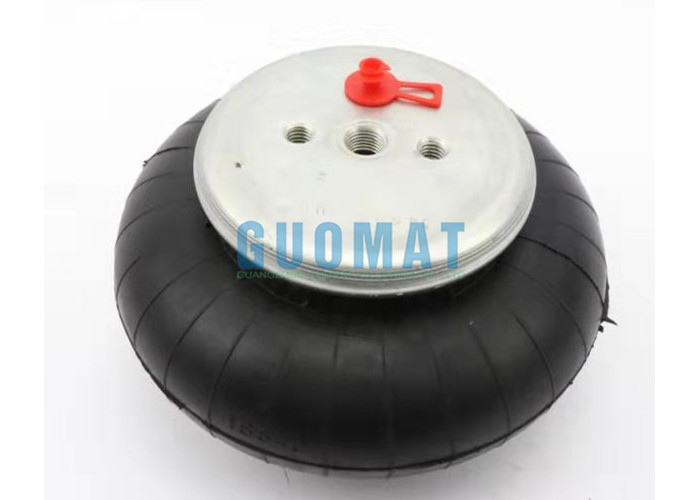

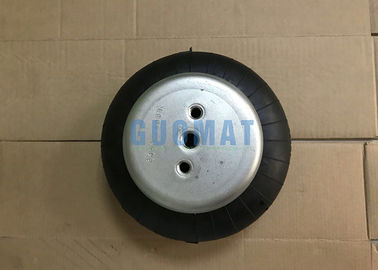

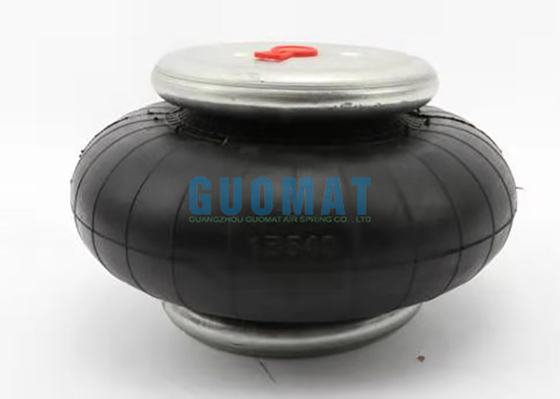

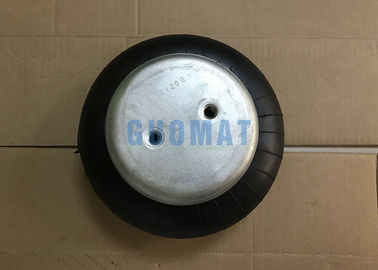

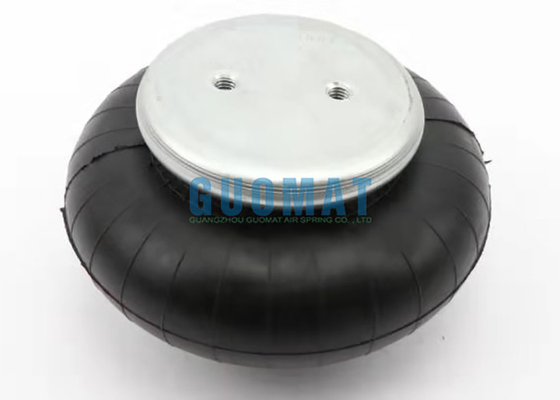

Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540

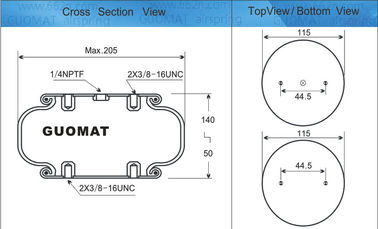

Specifications and Technical Data
GUOMAT Part Number:1B5021
Operating Temperature: 57Cº to -54Cº
Compressed Height: 90mm
Top Cover Plate Diameter: 115mm
Bottom Cover Plate Diameter: 115mm
Distance Gas Hole Between Nut 22.25 mm
Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC
The Working Stroke : MAX 140 mm to MIN 50 mm
Gas Hole / Air inlet : 1/4NPTF
| aximum Diameter @ 100 PSIG (mm) | 210.82 | Short Description | W01-358-7451, W013587451, WO1-358-7451, WO13587451 |
| Maximum Height (mm) | 140 | Manufacturer Part Number | W013587451 |
| Maximum Stroke (mm) | 76.2 | Manufacturer | Firestone Industrial |
| Minimum Usable Height (mm) | 50 | Style Number | 110B |
| 1 Inch (pounds) | 2090 | Style Shape | Single Convolution |
| 3 Inch (pounds) | 1030 | Natural Frequency (@80 psig) (cpm) | 162 |
| Bead plate Type | 1 | 400 CPM % | 80.2 |
| Blind Nut Centers (mm) | 44.45 | 800 CPM % | 95.7 |
| Design Height | 4.5 | 1500 CPM % | 98.8 |
| 40 psig (pounds) | 650 | Maximum Stroke (pounds) | 940 |
| 60 psig (pounds) | 1010 | Material | 2-Ply Standard Cord |
| 80 psig (pounds) | 1390 |
