| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7095 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 1B7095 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Rubber Air Balloon | Pressure Ability: | 0.2-0.8 M Pa |
| Bellow No.: | 1B7360 | Firestone: | W01-358-7095 |
| High Light: | air helper springs,air suspension parts |
||
Firestone W01-358-7095 GUOMAT NO. 1B7095 Bellow No. 1B 360 Rubber Air Balloon

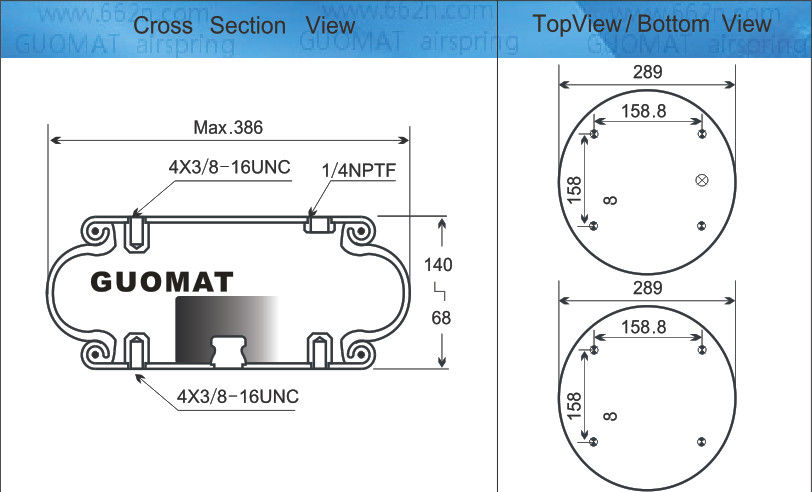

Specifications and Technical Data
GUOMAT Part Number:1B7095
Operating Temperature: 57Cº to -54Cº
Compressed Height: 80mm
Top Cover Plate Diameter: 289mm
Bottom Cover Plate Diameter: 289mm
Distance Gas Hole Between Nut 79 mm
Top Cover Plate Screw (Nut) Tooth :4pcX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 4pcX3/8-16UNC
The Working Stroke : MAX 140 mm to MIN 68 mm
Gas Hole / Air inlet : 1/4NPTF
| Maximum Diameter @ 100 PSIG (mm) | 386 | Manufacturer Part Number | W01-358-7095 |
| Maximum Height (mm) | 140 | Manufacturer | Firestone Industrial |
| Maximum Stroke (mm) | 72 | 40 psig (pounds) | 3820 |
| Minimum Usable Height (mm) | 68 | 60 psig (pounds) | 5900 |
| 1 Inch (pounds) | 10860 | 80 psig (pounds) | 7990 |
| 3 Inch (pounds) | 8800 | Natural Frequency (@80 psig) (cpm) | 133 |
| Maximum Stroke (pounds) | 5500 | 400 CPM % | 87.7 |
| Equivalent High Strength Style Number | 128-1 | 800 CPM % | 97.2 |
| Applicable Technigram? | 105 | 1500 CPM % | 99.2 |
| Material | 2-Ply Standard Cord | ||
| Bead plate Type | 2 | ||
| Blind Nut Centers (mm) | 158.8 | ||
| Design Height | 100 |
