| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6884 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 2B6884 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Double Convoluted Air Balloon | Pressure Ability: | 0.2-0.8 M Pa |
| Contitech: | FD 200-19 724 | Firestone: | W01-358-6884 |
| Link: | 1103-0019 | ||
| High Light: | convoluted air spring,air helper springs |
||
Contitech FD 200-19 724 Firestone W01-358-6884 Link 1103-0019 Double Convoluted Industrial Air Spring

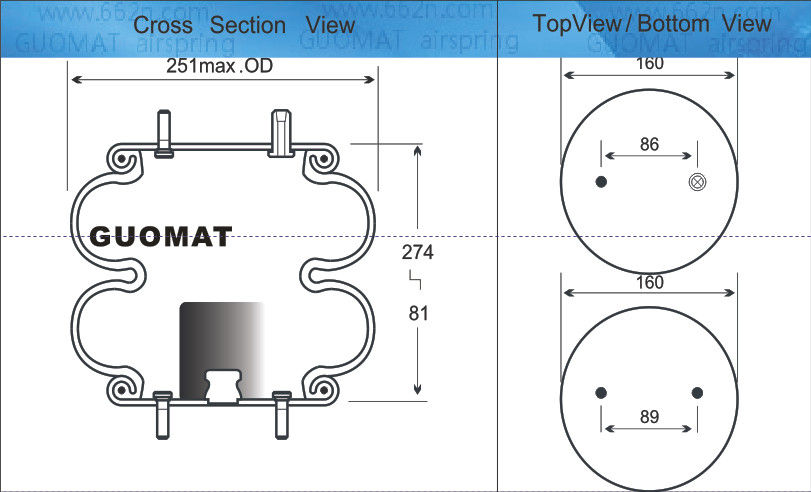

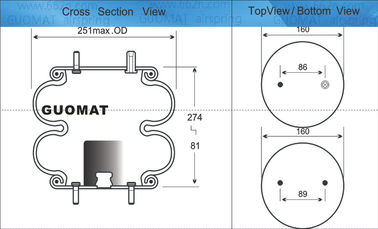

Specifications and Technical Data
GUOMAT Part Number:1B6884
Operating Temperature: 57Cº to -54Cº
Compressed Height:81mm
Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter: 160mm
Distance Gas Hole Between Nut: 86 mm
Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC
The Working Stroke : MAX 274 mm to MIN 81 mm
Gas Hole / Air inlet : 1/4NPTF
| Compressed Height: | 90 CM |
| Top Plate Number: | 3148 |
| Top Plate Width: | 160 CM |
| Piston Number: | 3099 |
| Piston Width: | 160 CM |
| Firestone Bellows Number: | 20 |
| Note:Link | 1103-0019 |
| size | 250 mm | Working medium | Compressed air as per ISO 8573-1:2010 [-:-:4] |
| Installation required Ø | 265 mm | Information about operation and test media | Operation with oil lubrication not possible |
| Stroke | 185 mm | Corrosion resistance grade (CRC) | 2-Moderate corrosion stress |
| Highest height, advanced | 275 mm | Ambient temperature | -40 °C ... 70 °C |
| Maximum tilt angle | 25 deg | Reset force | 200 N |
| Highest offset | 20 mm | product weight | 3000 g |
| Minimum installation height | 75 mm | Type of installation | With internal thread |
| Type code | EB | Pneumatic connection | G3/4 |
| Operation mode | Single-acting | Material Description |
RoHS-compliant Free of copper and PTFE |
| symbol | 991205 | Bellows material | NR/BR |
| Operating pressure | 0 bar ;1 bar;2 bar;3 bar;4 bar;5 bar;6 bar;7 bar;8 bar | Building materials |
Galvanized Steel |
