| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6897 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-6897 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/4-16UNC |
| Cover Plate Diameter: | 160 Mm | Pressure Ability: | 0.2-0.8 M Pa |
| Stroke: | 95~274 Mm | Net Weight: | 3.35 Kg |
| Package Size: | 24*24*24 CM | ||
| High Light: | convoluted air spring,air helper springs |
||
Firestone W01-358-6897 Goodyear 2B9-228 Ride Rite Air Bags For Ridewell 1003586897C

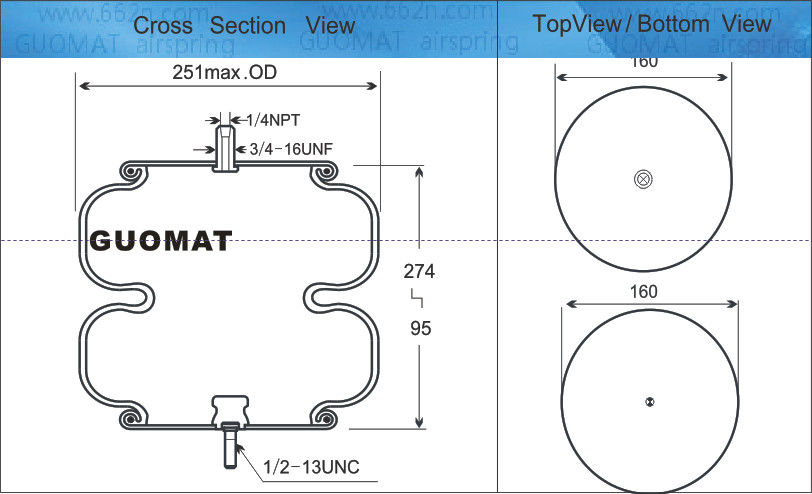

GUOMAT 2B6897 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/4-16UNC
Screw Center Distance of Top Cover Plate : in the middle of the plate
Bottom Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : in the middle of the plate
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : together with the bolt
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 95 mm to MAX 274 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
FD 200-19 504 Cross others OEM
Firestone: W01-358-6897
Firestone: W01-358-6897
Firestone: W01-358-6897
Contitech: FD 200-19 505
Contitech: FD 200 19 505
Contitech: FD20019 505
Contitech:161300
Goodyear: 2B9-229
Goodyear: 2B9229
Goodyear: 2B9 229
Goodyear:2B9-228
Goodyear:2B9228
Goodyear:2B9228
Goodyear:578923202
Goodyear:578-92-3-202
Goodyear:578 92 3 202
Goodyear:556238325
Goodyear:556-23-8-325
Goodyear:556 23 8 325
Triangle: : 6325
Triangle: :4505
Waston&Chalin: AS-0058
Brake & Wheel : M3528
Ridewell: 1003586897C
| BELLOW Numbers | COMPLETE Numbers |
| FIRESTONE FLEX 20 |
Firestone W01-358-6897
|
|
Goodyear 578923202
|
Contitech FD 200-19 505 |
| Goodyear 556238325 | Goodyear 2B9-228 |
| Contitech 161300 |
Goodyear 2B9-229
|
| Triangle 6325 | Waston&Chalin AS-0058 |
| Triangle 4505 | |
|
Brake & Wheel M3528
|
|
| Ridewell 1003586897C |
2B6897 Double Convoluted Air Spring fit for
Quench Tank Actuator
Paper Sizing Press
Pickling Tank Actuator
Oscillating Doctor for Paper Calender Roll
Core Straightener
Cable Tensioning Device
Other kinds of FD 200-19 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 200 19 310 | FD 200-19 310 | 161292 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 315 | FD 200-19 315 | 161293 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 320 | FD 200-19 320 | 161008 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 362 | FD 200-19 362 | 161294 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 448 | FD 200-19 448 | 161295 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 450 | FD 200-19 450 | 161296 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 452 | FD 200-19 452 | 161297 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 499 | FD 200-19 499 | 161298 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 504 | FD 200-19 504 | 161299 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 505 | FD 200-19 505 | 161300 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 506 | FD 200-19 506 | 161301 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 510 | FD 200-19 510 | 161302 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 524 | FD 200-19 524 | 161385 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 539 | FD 200-19 539 | 161303 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 600 | FD 200-19 600 | 161017 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
