| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6908 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Contitech: | FD200-19 362 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.5 Kg |
| Other Name: | Convoluted Air Spring | Pressure Ability: | 0.2-0.8 M Pa |
| Firestone: | W01 358 6908 | Goodyear: | 2B9-210 |
| High Light: | air helper springs,air suspension parts |
||

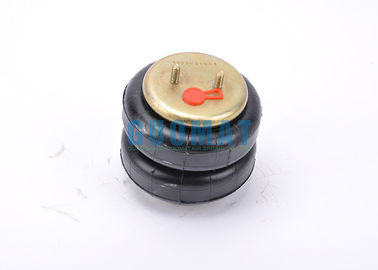

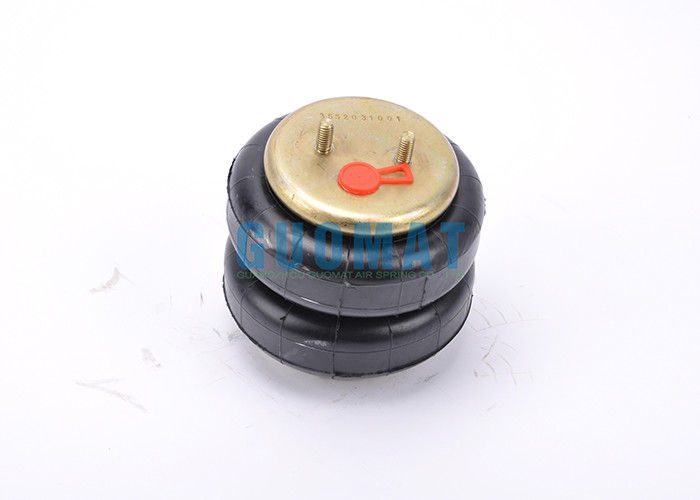

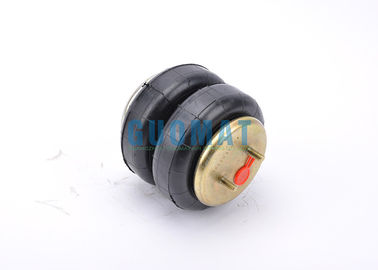

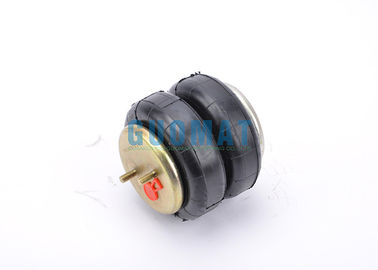

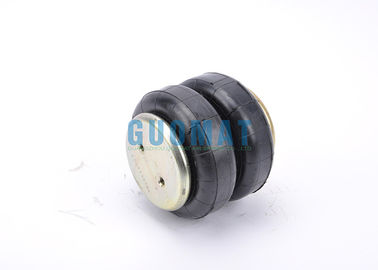

Double Convoluted Air Bags Goodyear 2B9-210 Firestone W013586908
OEM Original Equipment Manufacturer:
| Reference | OEM |
| GUOMAT NO. | 2B6908 |
| Firestone | W01-358-6908 / W01 358 6908 / W013586908 |
| Contitech | FD 200-19 362 / FD200-19 362 / FD 200 19 362 |
| Contitech | 161294 |
| Goodyear | 2B9-210 / 2B9 210 / 2B9210 |
| Goodyear | 578923206 / 578-92-3-206 / 578 92 3 206 |
| Triangle | 6325/4362 |
| Watson&Chalin | AS-0035 |
| Ridewell | 1003586908C |
Goodyear Number: 2B9-210
Bellows type: double
Automann bellows Number: SP2B12R
Firestone bellows Number: 20F is 20
Goodyear Bellows Number: 578-92-3-202
Contitech bellows Number: FD 200-19
Triangular bellows Number: 6325

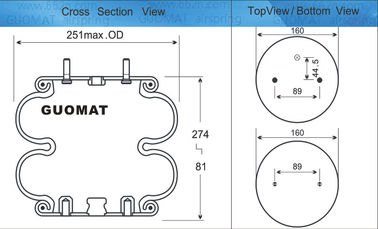

Specifications and Technical Data of 2B6908
Compressed Height: 3.12 / 79mm
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/212UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number:20
Goodyear Part Number:2B9-210/ 2B9210 / 2B9 210
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
Number of top plate holes/studs: 2 pcs
Top plate diameter: 6.4 inch
Top plate C to C diameter: 3.5 inch
Number of studs in bottom plate hole: 2 pcs
Base plate diameter: 6.4 inch
Diameter of base plate C to C: 3.5 inch
Bottom plate alignment: parallel
Bumper: None
Minimum height: 3.2 inch
Maximum height: 10.8 inch
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
