Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B6932 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel And Rubber | Contitech: | FD200-19 452 |
---|---|---|---|
Warranty: | 12 Months | Weight: | 3.5 Kg |
Other Name: | Contitech Air Spring | Pressure Ability: | 0.2-0.8 M Pa |
Firestone: | W01 358 6932 | Goodyear: | 2B9-246 |
High Light: | air helper springs,air suspension parts |

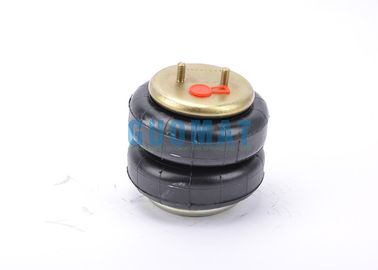

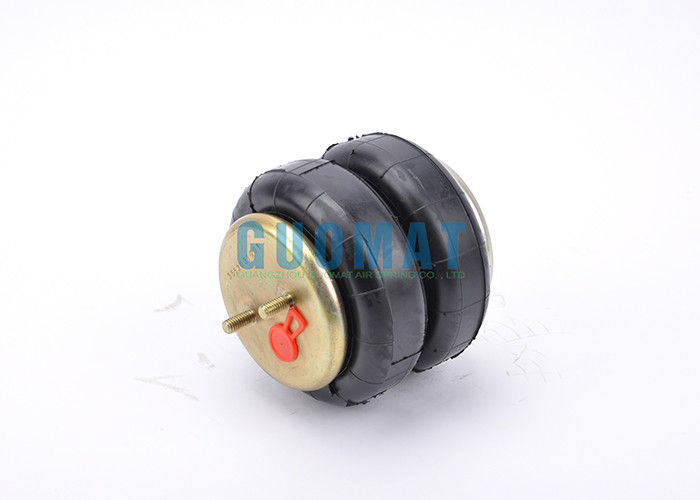

Continental Air Springs FD200-19 452 Firestone Dumper W013586932 For Ridewell 1003586932C
OEM Original Equipment Manufacturer:
Reference | OEM |
GUOMAT NO. | 2B6932 |
Firestone | W01-358-6932 / W013586932 / W01 358 6932 |
Contitech | FD 200-19 452 / FD200 19 452 / FD 20019 452 |
Goodyear | 2B9-246 / 2B9246 / 2B9 246 |
Ridewell | 1003586932C |

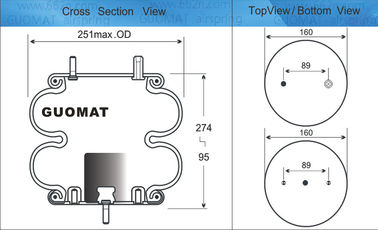

Specifications and Technical Data of 2B6932
Compressed Height: 3.12 / 79mm
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut :in the middle of the plate
Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-12UNC
Bottom Cover Plate Screw (Nut) Tooth : 1pcsX 1/2-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number:20
