Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941

China Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941 supplier
Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941 supplier Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941 supplier

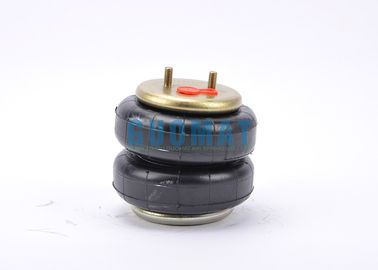

Large Image :  Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6941

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Contitech: FD 200-19 450
Warranty: 12 Months Weight: 3.5 Kg
Other Name: Contitech Air Spring Pressure Ability: 0.2-0.8 M Pa
Firestone: W01 358 6941 Goodyear: 2B9-280

Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941



OEM Original Equipment Manufacturer:



Reference OEM
GUOMAT Part NO. 2B6941
Firestone Part NO. W01-358-6941 / W01 358 6941 / W013586941
Contitech Part NO. FD 200-19 448 / FD200-19 448 / FD20019 448
Contitech Bellows NO. 161295
Goodyear Part NO. 2B9-265 / 2B9265/ 2B9 265
Goodyear Part NO. 2B9-280 / 2B9 280 / 2B9280
Goodyear Bellows NO. 578923202/6 / 578923202/6 / 578923202/6
Triangle Part NO. 6325
Triangle Bellows NO. 4448
Histeer Part NO. 10302
SAF Holland Part NO. 57006941

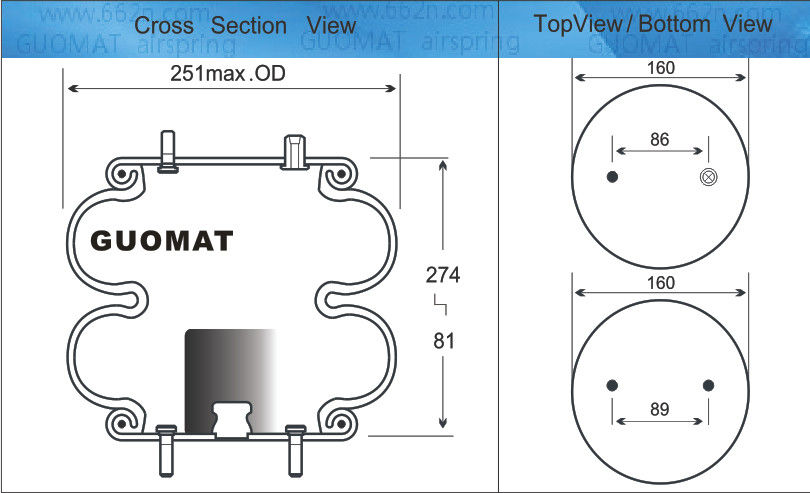

GUOMAT 2B6941 Specifications and Technical Data



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth :1 pcs X 3/4-16UNC ,1 pcs X 1/2-16UNC

Screw Center Distance of Top Cover Plate : 86 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Screw Center Distance Between Gas Hole and Nut : together with the right size bolt



Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 81 mm to MAX 274 mm

Maximum Height : 274 mm

Minimum Height :81mm

Stroke Height : 193 mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
