| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B2600 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | GUOMAT No.: | 2B2600 |
|---|---|---|---|
| Weight: | 2.6 Kg | Working Stroke: | 135 Mm |
| Design Height: | 212mm | Loading Cap. At 7.0bar: | 9.52kN |
| Pressure Ability: | 0.2-0.8 MPa | Loading Cap. At 3.0bar: | 3.85kN |
| High Light: | convoluted air spring,air helper springs |
||

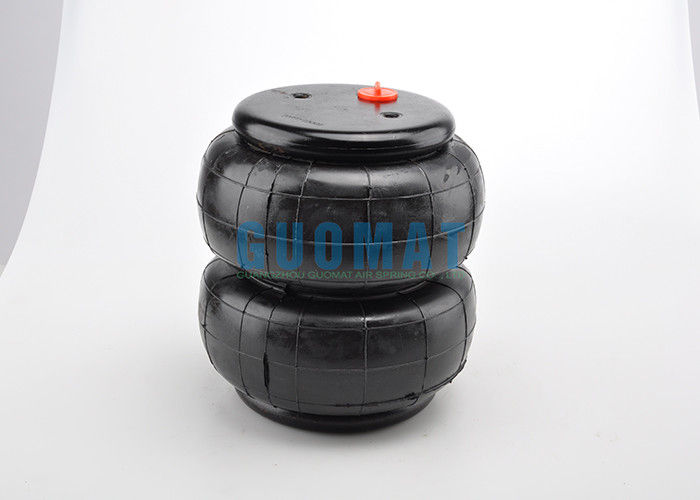

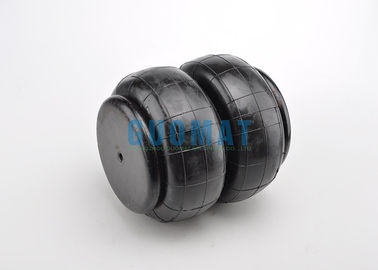

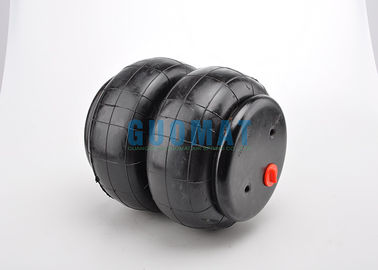

2B2600 Air Spring For Light Trucks, RV, SUV and Vans Replace Coil Spring
Double convolutions
7.25" diameter, 9" extension, 3.00" closed
The distance between the two top mounting holes is about 1-3/4 inches
There is a mounting hole in the bottom center
All mounting holes are 3/8" -16 UNC
The installation of any components or kits should only be performed by personnel who have experience in installing and correctly operating vehicle systems. The person installing any component or kit is also responsible for determining the suitability of the component or kit for a particular application. The product is for off-road use only, for display use only. Manufacturers and distributors are not responsible for any misuse of these products. Be sure to check the highway laws in your area with your local government, as highway laws and the enforcement of these laws vary greatly. Any manufacturer and distributor are not responsible for any products you purchase here.

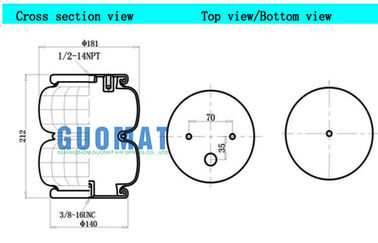

Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC
In Middle of Bottom Cover Plate
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/2-14NPT
❸ Cover Plate
Top Cover Plate Diameter (Width): 140mm
Bottom Cover Plate Diameter (Width): 140mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 181 mm
Rubber Bellows MAX Diameter : 200 mm
Installation Space Diameter : 220mm
Rubber Bellows Natural Height : 212 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
About the 2B2600 Air Spring:
GUOMAT springs can be installed on most light trucks, RVs, RVs, suvs and vans. They are mounted between the frame and the axle and provide variable load support by adjusting the air pressure. GUOMAT springs can re-adjust the level of heavy vehicles. Sporty multi-leaf air springs, such as the GUOMAT air-assisted spring, improve driving and handling. Although the GUOMAT set contains a complex air spring, it includes an innovative tapered sleeve air spring that is more conducive to specific applications.
