| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6955 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | GUOMAT NO.: | 2B6955 |
|---|---|---|---|
| Firestone Style:: | 25(255-1.5) | Firestone: | W01-358-6955 |
| Air Inlet: | 1/4 NPT | Pressure Ability: | 0.2-0.8 MPa |
| Nut: | 3/8-16 Blind Nuts | Net Weight: | 1.7 Kg |
| High Light: | convoluted air spring,air helper springs |
||

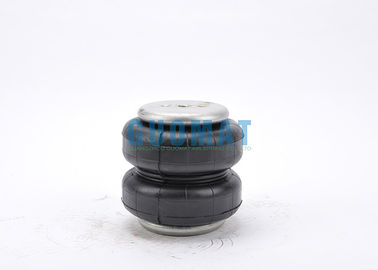

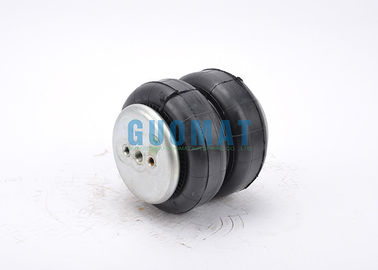

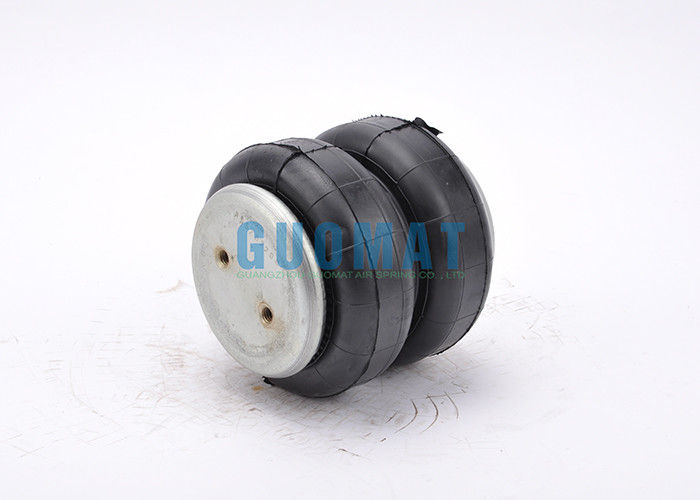

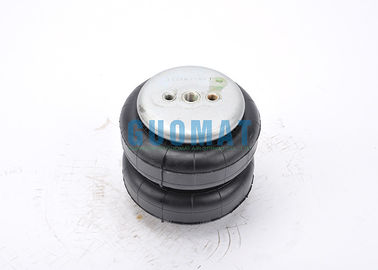

Double Air Spring Blind Nuts 1/4 NPT Air Inlet Firestone W013586955
Description Assembly Order No.
Blind nuts, 1/4 NPT:WO1-358-6955 ／W01-358-6955 ／W013586955
Blind nuts, 3/4 NPT:WO1-358-6956 ／ W01-358-6956 ／ W013586956
Rubber bellows only:WO1-358-0048 ／ W01-358-0048 ／ W013580048
Ply Socket head aluminum bead:WO1-358-6833
Assembly weight 3.9 lbs.
Force to collapse to minimum height (@ 0 PSIG) 50 lbs.

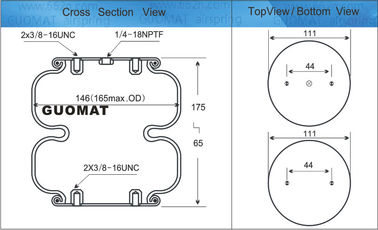

Specifications and Detail Technical Parameters
Specifications
Weight 17 kg
1/4NPT : max. 25 Nm
3/8-16 blind nuts
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16
Screw Center Distance of Top Cover Plate : 44 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16
Screw Center Distance of Bottom Cover Plate : 44 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
❸ Cover Plate
Top Cover Plate Diameter (Width): 111 mm
Bottom Cover Plate Diameter (Width): 111 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 146 mm
Rubber Bellows MAX Diameter : 165 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 175 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
|
Dynamic Characteristics at 6.0 in. Design Height (Required for Airmount isolator design only) |
||||
| Volume @ 100 PSIG = 100 in3 | Natural Frequency | |||
| Gage Pressure (PSIG) | Load (lbs.) | Spring Rate (lbs./ in.) | CPM | HZ |
| 40 | 566 | 309 | 139 | 2.32 |
| 60 | 871 | 432 | 132 | 2.21 |
| 80 | 1,194 | 565 | 129 | 2.16 |
| 100 | 1,524 | 681 | 126 | 2.10 |
