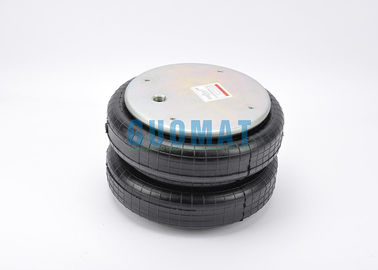

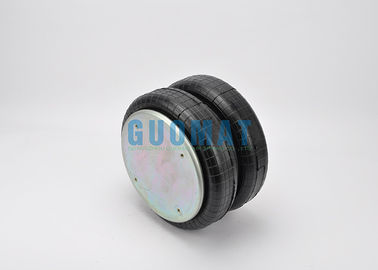

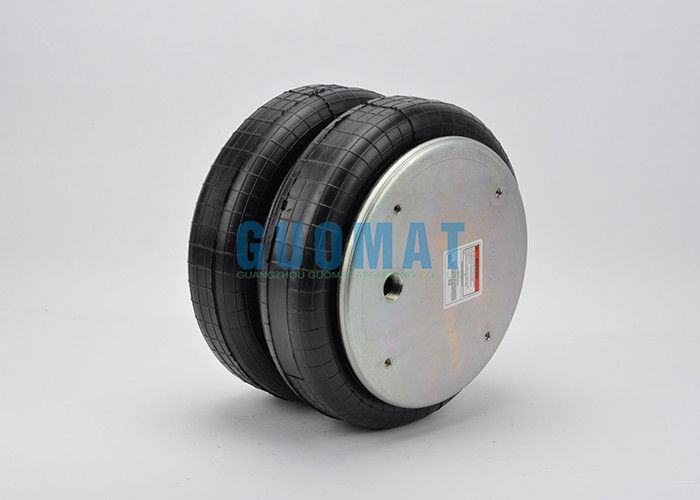

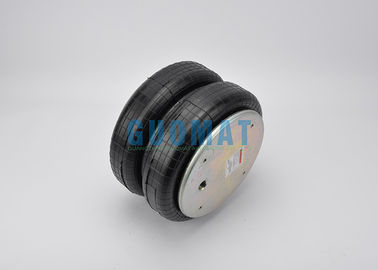

Firestone Industrial Air Spring W01-358-7781 No. 233-2 Working Stroke 287mm

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7781

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel Cover Plate , Rubber Bellows	Firestone Style No.:	233-2
Contitech:	FD 530-35 545	Firestone:	W013587781
Gas Hole / Air Inlet:	3/4NPT	Cover Plate Diameter (Width):	289 Mm
Compressed Height:	104 Mm / 4.1 Inches	G.W.:	9.7 KG
N.W.:	9.05KG	Package Size:	383822cm
Highlight:	convoluted air spring , air suspension parts

Firestone W01-358-7781 Style No. 233-2 Working Stroke 287mm Gas Hole / Air inlet : 3/4NPT

Cross Manufacturer	Cross OEM
Firestone No.	W01-358-7781 / W01 358 7781/W013587781
Firestone Style No.	233-2
Contitech :	FD 530-35 545 / FD 530 35 545
Ridewell :	1003587781C
Ridewell Number:	1003587781C
Triangle:	6412
Triangle	AS-4545
Firestone Top Plate Number:	3134
Firestone Piston Number:	3130
FleetPride	AS7781
Taurus	6412
TRP	AS77810
Automann	SP2B34RC-7781

Assembly Weight: 9.05kg

Operating Temperature: 57Cº to -54Cº

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm

❸ Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter : 406 mm

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 391 mm

Working Stroke : 287mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Another kind the air inlet is 1/4 NPT Goodyear 2B14-462
Goodyear Flexmember 578-92-3-356
Firestone 6805;W01-358-6805
Ridewell 1003586805C

Firestone Industrial Air Spring W01-358-7781 No. 233-2 Working Stroke 287mm 0

Firestone Industrial Air Spring W01-358-7781 No. 233-2 Working Stroke 287mm 1

FD 530-35 1165

FD 530-35 720

FD 530-35 912

GUOMAT NO.	Reference	Order NO.	Force (lbs)		Max OD (in)	Design height(in)	Height		Narural frequ.[cpm]
GUOMAT NO.	Reference	Order NO.	80 psi	100 psi	Max OD (in)	Design height(in)	Min	MAX	Narural frequ.[cpm]

FD 530 35 528	FD 530-35 528	161386	7930	9910	16	11	3	15.4	84
FD 530 35 530	FD 530-35 530	161387	7930	9910	16	11	4.1	15.4	84
FD 530 35 543	FD 530-35 543	161388	7930	9910	16	11	4.1	15.4	84
FD 530 35 544	FD 530-35 544	161389	7930	9910	16	11	4.1	15.4	84
FD 530 35 545	FD 530-35 545	161390	7930	9910	16	11	4.1	15.4	84
