Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine

China Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier
Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine supplier

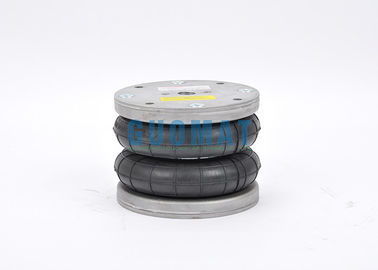

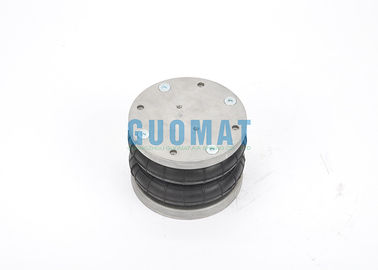

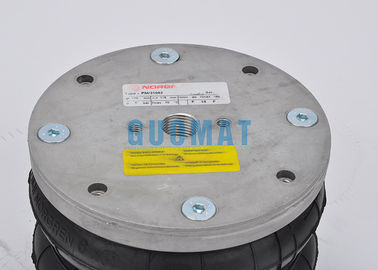

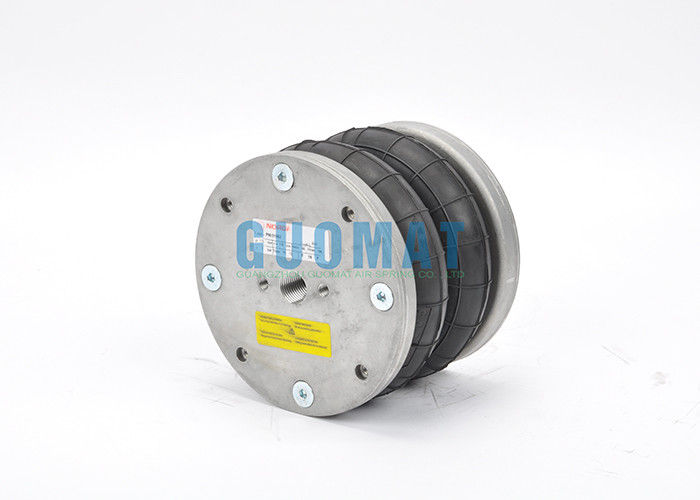

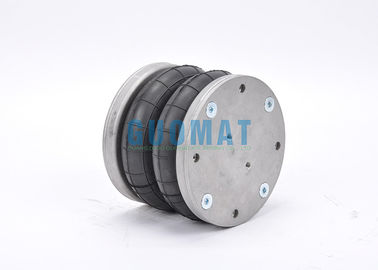

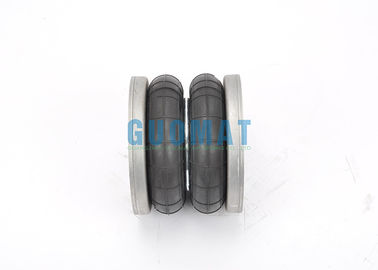

Large Image :  Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine

Product Details:

Place of Origin: Guangdong,China
Brand Name: Norgren
Certification: ISO/TS16949:2009
Model Number: PM/31062

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT NO.: PM/31062
Bellows NO .: Springride DF 6 X 2 Firestone: W01-R58-4070 - (6 X 2 Alu )
Plate Dia.: 153.5mm Max Dia.: 175mm
Pressure Ability: 0.2-0.8 MPa Air Inlet: G1/2
Stroke: 115mm

Norgren Industrial Air Spring PM / 31062 Refer To YS-210-2 V Double Convolution For Machine





Specifications and Detail Technical Parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :  4pcs X M8



Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



Cover Plate

Top Cover Plate Diameter (Width): 153.5 mm



Bottom Cover Plate Diameter (Width): 153.5 mm



Material top and bottom plate:Aluminium



Rubber Bellows

Diameter max at 7 bar:175MM



Stroke of Rubber Bellows:80mm-195m



Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



max load at 80 mm height and 8 bar:1415 daN





GUOMAT Air Spring Refer to YS-V AIR SPRINGS​ model air bellows:



Model NO. Model NO.

Height(mm)




GUOMAT Gu'an Zhen Min Height

Max Height



Standard Height



Stroke



YS-65-1 G



YS-65-1 V



36 75 54 39
YS-115-1 G YS-115-1 V 50 105 56 55
YS-115-2 G YS-115-2 V 60 157 90 97
YS-130-1 G YS-130-1 V 50 85 56 35
YS-130-2 G YS-130-2 V 50 143 90 93
YS-160-1 G YS-160-1 V 50 105 75 55
YS-160-2 G YS-160-2 V 68 174 110 106
YS-210-1 G YS-210-1 V 50 125 80 75
YS-210-2 G YS-210-2 V 64 234 138 170
YS-250-1 GS YS-250-1 VS 50 162 92 112
YS-250-2 GS YS-250-2 VS 64 234 138 186
YS-250-3 GS YS-250-3 VS 98 385 232 287
YS-252-1 G YS-252-1 V 50 162 92 112
YS-252-2 G YS-252-2 V 64 234 138 186
YS-252-3 G YS-252-3 V 98 385 232 287
YS-280-1 G YS-280-1 V 50 162 92 112
YS-280-2 G YS-280-2 V 74 260 162 186
YS-280-3 G YS-280-3 V 98 385 232 287
YS-320-1 G YS-320-1 V 50 175 92 125
YS-320-2 G YS-320-2 V 74 260 162 186
YS-320-3 G YS-320-3 V 98 385 232 287
YS-355-1 G YS-355-1 V 50 175 92 125
YS-355-2 G YS-355-2 V 74 260 162 186
YS-355-3 G YS-355-3 V 98 385 232 287
YS-405-1 G YS-405-1 V 50 175 92 125
YS-405-2 G YS-405-2 V 74 260 162 186
YS-405-3 G YS-405-3 V 98 385 232 287
YS-460-1 G YS-460-1 V 85 210 127 125
YS-460-2 G YS-460-2 V 100 290 185 190
YS-460-3 G YS-460-3 V 115 402 250 287
YS-510-1 G YS-510-1 V 85 210 127 125
YS-510-2 G YS-510-2 V 100 290 185 190
YS-510-3 G YS-510-3 V 115 402 250 287
YS-560-1 G YS-560-1 V 85 210 127 125
YS-560-2 G YS-560-2 V 100 290 185 190
YS-560-3 G YS-560-3 V 115 402 250 287
YS-610-1 G YS-610-1 V 85 210 127 125
YS-610-2 G YS-610-2 V 100 290 185 190
YS-610-2 G YS-610-2 V 100 290 185 190
YS-610-3 G YS-610-3 V 115 402 250 287
YS-660-1 G YS-660-1 V 85 210 127 125
YS-660-2 G YS-660-2 V 100 290 185 190
YS-660-3 G YS-660-3 V 115 402 250 287
YS-710-1 G YS-710-1 V 90 220 137 125
YS-710-2 G YS-710-2 V 105 295 190 190
YS-710-3 G YS-710-3 V 120 412 260 287
